ATE Originale zweiteilige Bremsscheibe (24011003071) für Mazda
98,01 €
(inkl. MwSt.)
81,00 € Steuerexzl.
Teilenummer:
ATE 24.0110-0307.1
(240110-03071)
- Außendurchmesser [mm]: 276,0
- Innendurchmesser [mm]: 125,0
- Bremsscheibendicke [mm]: 10,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 410307
Logistische Informationen:
- Ean-Code: 4006633243261
- Gewicht: 7.69kg
Specification of ATE 24.0110-0307.1 / 240110-03071 / 24011003071:
| OE Number | Reference info |
| MAZDA N06Y-26-251 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA N06Y-26-251A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA N06Y-26-251B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA N0YY-26-251 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA N0YY-26-251A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA N0YY-26-251B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| MAZDA MX-5 II (NB) Construction Year from 200308 Vehicle Equipment Line/Trim Level Sport Fitting Position Rear Axle | 1998-05 - 2005-10 | 81 | 110 | 1597 | Convertible |
| MAZDA MX-5 II (NB) Construction Year from 200308 Fitting Position Rear Axle | 2000-11 - 2005-10 | 102 | 139 | 1840 | Convertible |
| MAZDA MX-5 II (NB) Fitting Position Rear Axle | 2002-08 - 2005-10 | 107 | 146 | 1839 | Convertible |
| MAZDA MX-5 II (NB) Fitting Position Rear Axle | 2000-11 - 2005-10 | 107 | 146 | 1840 | Convertible |

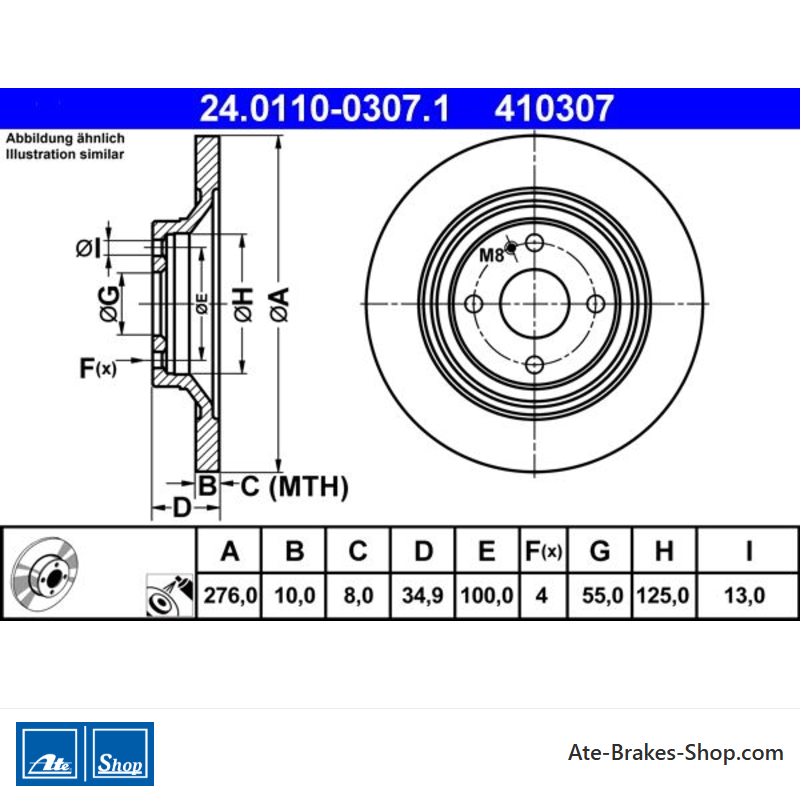

24.0110-0307.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Mazda
- Handelsnummer
- 410307
- Herkunftsland
- Tschechien
- Höhe
- 34,9
- Außendurchmesser [mm]
- 276,0
- Bremsscheibendicke [mm]
- 10,0
- Bremsscheibentyp
- Solide
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 100,0
- Zentrierungsdurchmesser [mm]
- 55,0
- Innendurchmesser [mm]
- 125,0
- Bohrdurchmesser [mm]
- 13,0
- Mindestdicke [mm]
- 8,0
Spezifische Referenzen
- ean13
- 4006633243261
- Hersteller-Teilenummer (MPN)
- 2401100307102
ATE 24.0110-0307.1
(240110-03071)
- Außendurchmesser [mm]: 276,0
- Innendurchmesser [mm]: 125,0
- Bremsscheibendicke [mm]: 10,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 410307
