ATE Originele 2-delige remschijf (24011003071) voor Mazda
€ 98,01
(incl. btw)
€ 81,00 belastingexcl.
Onderdeelnummer:
ATE 24.0110-0307.1
(240110-03071)
- Buitendiameter [mm]: 276,0
- Binnendiameter [mm]: 125,0
- Remschijfdikte [mm]: 10,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 410307
Logistieke informatie:
- Ean Code: 4006633243261
- Gewicht: 7.69kg
Specification of ATE 24.0110-0307.1 / 240110-03071 / 24011003071:
| OE Number | Reference info |
| MAZDA N06Y-26-251 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA N06Y-26-251A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA N06Y-26-251B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA N0YY-26-251 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA N0YY-26-251A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA N0YY-26-251B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| MAZDA MX-5 II (NB) Construction Year from 200308 Vehicle Equipment Line/Trim Level Sport Fitting Position Rear Axle | 1998-05 - 2005-10 | 81 | 110 | 1597 | Convertible |
| MAZDA MX-5 II (NB) Construction Year from 200308 Fitting Position Rear Axle | 2000-11 - 2005-10 | 102 | 139 | 1840 | Convertible |
| MAZDA MX-5 II (NB) Fitting Position Rear Axle | 2002-08 - 2005-10 | 107 | 146 | 1839 | Convertible |
| MAZDA MX-5 II (NB) Fitting Position Rear Axle | 2000-11 - 2005-10 | 107 | 146 | 1840 | Convertible |

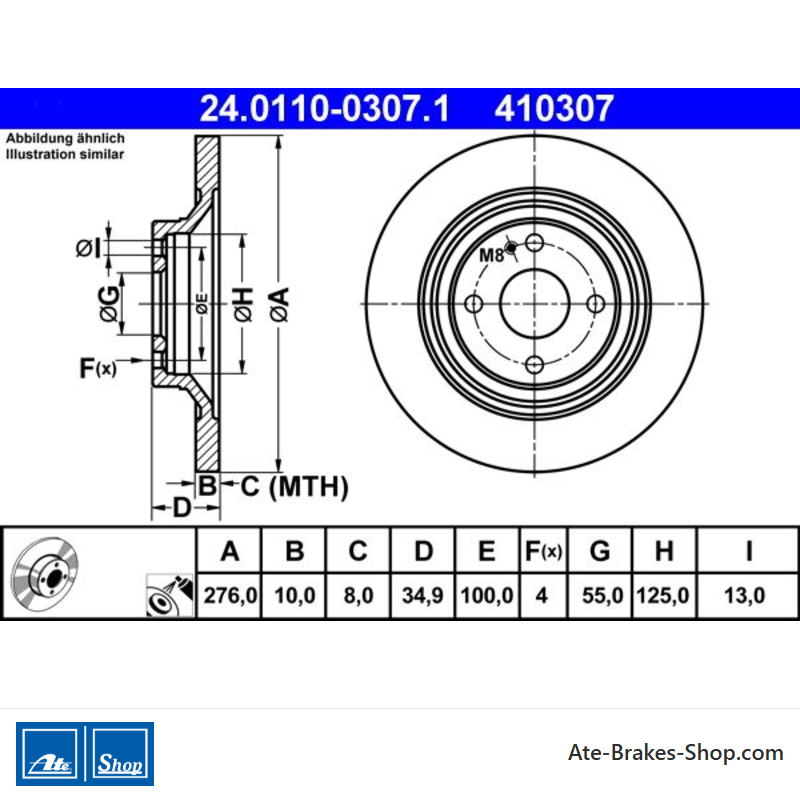

24.0110-0307.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Mazda
- Handelsnummer
- 410307
- Land van Herkomst
- Tsjechië
- Hoogte
- 34,9
- Buitendiameter [mm]
- 276,0
- Remschijfdikte [mm]
- 10,0
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 100,0
- Centreringsdiameter [mm]
- 55,0
- Binnendiameter [mm]
- 125,0
- Bordiameter [mm]
- 13,0
- Minimale dikte [mm]
- 8,0
Specifieke referenties
- ean13
- 4006633243261
- MPN
- 2401100307102
ATE 24.0110-0307.1
(240110-03071)
- Buitendiameter [mm]: 276,0
- Binnendiameter [mm]: 125,0
- Remschijfdikte [mm]: 10,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 410307
