ATE Original 2 Teile Bremsscheibe (24011401031) für Ford
83,49 €
(inkl. MwSt.)
69,00 € Steuerexzl.
Teilenummer:
ATE 24.0114-0103.1
(240114-01031)
- Außendurchmesser [mm]: 254,0
- Innendurchmesser [mm]: 138,0
- Bremsscheibendicke [mm]: 14,3
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 414103
Logistische Informationen:
- Ean-Code: 4006633115070
- Gewicht: 10.19kg
Specification of ATE 24.0114-0103.1 / 240114-01031 / 24011401031:
| OE Number | Reference info |
| FORD 6166055 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 5022676 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FORD TRANSIT Van (T_ _) Vehicle type 80/100/115/120 Fitting Position Front Axle | 1985-09 - 1992-09 | 46 | 63 | 1593 | Van |
| FORD TRANSIT Van (T_ _) Vehicle type 80/100/115/120 Fitting Position Front Axle | 1985-09 - 1992-09 | 57 | 78 | 1994 | Van |
| FORD TRANSIT Van (T_ _) Vehicle type 80/100/115/120 Fitting Position Front Axle | 1986-01 - 1991-09 | 50 | 68 | 2496 | Van |
| FORD TRANSIT Van (T_ _) Vehicle type 80/100/115/120 Fitting Position Front Axle | 1988-10 - 1991-09 | 52 | 71 | 2496 | Van |
| FORD TRANSIT Platform/Chassis (T_ _) Vehicle type 80/100/115/120 Fitting Position Front Axle | 1985-11 - 1992-09 | 57 | 78 | 1993 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (T_ _) Vehicle type 80/100/115/120 Fitting Position Front Axle | 1986-01 - 1992-09 | 57 | 78 | 1994 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (T_ _) Vehicle type 80/100/115/120 Fitting Position Front Axle | 1986-01 - 1989-01 | 50 | 68 | 2496 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (T_ _) Vehicle type 80/100/115/120 Fitting Position Front Axle | 1988-09 - 1992-09 | 52 | 71 | 2496 | Platform/Chassis |
| FORD TRANSIT Bus (T_ _) Vehicle type 80/100/115/120 Fitting Position Front Axle | 1985-12 - 1989-01 | 46 | 63 | 1593 | Bus |
| FORD TRANSIT Bus (T_ _) Vehicle type 80/100/115/120 Fitting Position Front Axle | 1985-11 - 1992-09 | 57 | 78 | 1994 | Bus |
| FORD TRANSIT Bus (T_ _) Vehicle type 80/100/115/120 Fitting Position Front Axle | 1985-12 - 1992-09 | 57 | 78 | 1993 | Bus |
| FORD TRANSIT Bus (T_ _) Vehicle type 80/100/115/120 Fitting Position Front Axle | 1985-12 - 1989-01 | 50 | 68 | 2496 | Bus |
| FORD TRANSIT Bus (T_ _) Vehicle type 80/100/115/120 Fitting Position Front Axle | 1988-09 - 1992-09 | 52 | 71 | 2496 | Bus |

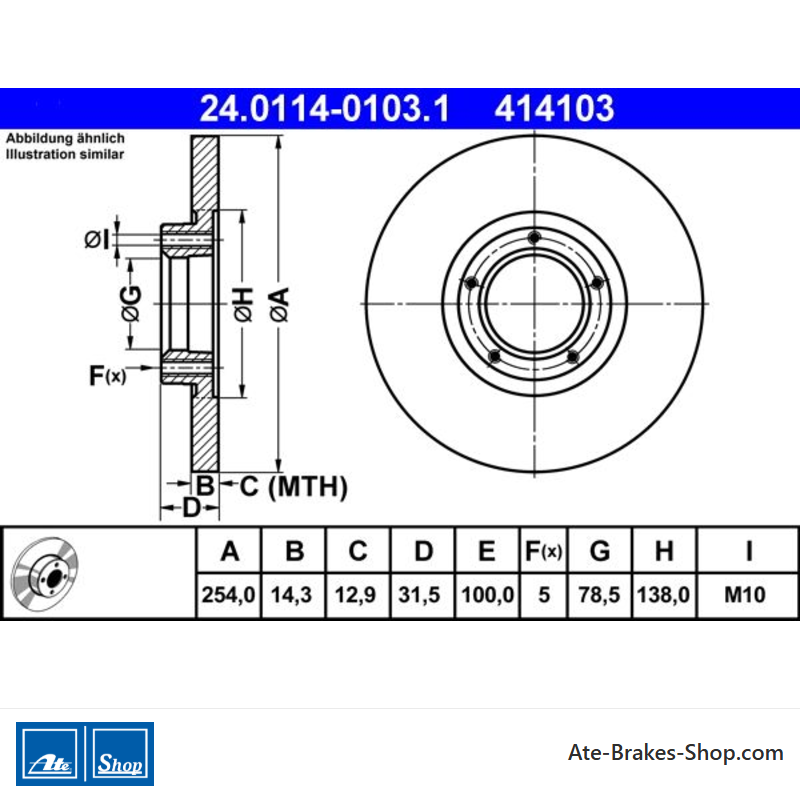

24.0114-0103.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Ford
- Handelsnummer
- 414103
- Herkunftsland
- Italien
- Höhe
- 31,5
- Außendurchmesser [mm]
- 254,0
- Bremsscheibendicke [mm]
- 14,3
- Bremsscheibentyp
- Solide
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 100,0
- Zentrierungsdurchmesser [mm]
- 78,5
- Innendurchmesser [mm]
- 138,0
- Gewindegröße
- M10
- Mindestdicke [mm]
- 12,9
Spezifische Referenzen
- ean13
- 4006633115070
- Hersteller-Teilenummer (MPN)
- 2401140103101
ATE 24.0114-0103.1
(240114-01031)
- Außendurchmesser [mm]: 254,0
- Innendurchmesser [mm]: 138,0
- Bremsscheibendicke [mm]: 14,3
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 414103
