ATE Disco de freno original de 2 piezas (24011401031) para Ford
83,49 €
(impuestos inc.)
69,00 € fiscales excl.
Número de parte:
ATE 24.0114-0103.1
(240114-01031)
- Diámetro exterior [mm]: 254,0
- Diámetro interior [mm]: 138,0
- Grosor del disco de freno [mm]: 14,3
- Número de agujeros de perno: 5
- 2 piezas de disco de freno
- Número de intercambio: 414103
Información logística:
- Código Ean: 4006633115070
- Peso: 10.19kg
Specification of ATE 24.0114-0103.1 / 240114-01031 / 24011401031:
| OE Number | Reference info |
| FORD 6166055 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 5022676 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FORD TRANSIT Van (T_ _) Vehicle type 80/100/115/120 Fitting Position Front Axle | 1985-09 - 1992-09 | 46 | 63 | 1593 | Van |
| FORD TRANSIT Van (T_ _) Vehicle type 80/100/115/120 Fitting Position Front Axle | 1985-09 - 1992-09 | 57 | 78 | 1994 | Van |
| FORD TRANSIT Van (T_ _) Vehicle type 80/100/115/120 Fitting Position Front Axle | 1986-01 - 1991-09 | 50 | 68 | 2496 | Van |
| FORD TRANSIT Van (T_ _) Vehicle type 80/100/115/120 Fitting Position Front Axle | 1988-10 - 1991-09 | 52 | 71 | 2496 | Van |
| FORD TRANSIT Platform/Chassis (T_ _) Vehicle type 80/100/115/120 Fitting Position Front Axle | 1985-11 - 1992-09 | 57 | 78 | 1993 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (T_ _) Vehicle type 80/100/115/120 Fitting Position Front Axle | 1986-01 - 1992-09 | 57 | 78 | 1994 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (T_ _) Vehicle type 80/100/115/120 Fitting Position Front Axle | 1986-01 - 1989-01 | 50 | 68 | 2496 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (T_ _) Vehicle type 80/100/115/120 Fitting Position Front Axle | 1988-09 - 1992-09 | 52 | 71 | 2496 | Platform/Chassis |
| FORD TRANSIT Bus (T_ _) Vehicle type 80/100/115/120 Fitting Position Front Axle | 1985-12 - 1989-01 | 46 | 63 | 1593 | Bus |
| FORD TRANSIT Bus (T_ _) Vehicle type 80/100/115/120 Fitting Position Front Axle | 1985-11 - 1992-09 | 57 | 78 | 1994 | Bus |
| FORD TRANSIT Bus (T_ _) Vehicle type 80/100/115/120 Fitting Position Front Axle | 1985-12 - 1992-09 | 57 | 78 | 1993 | Bus |
| FORD TRANSIT Bus (T_ _) Vehicle type 80/100/115/120 Fitting Position Front Axle | 1985-12 - 1989-01 | 50 | 68 | 2496 | Bus |
| FORD TRANSIT Bus (T_ _) Vehicle type 80/100/115/120 Fitting Position Front Axle | 1988-09 - 1992-09 | 52 | 71 | 2496 | Bus |

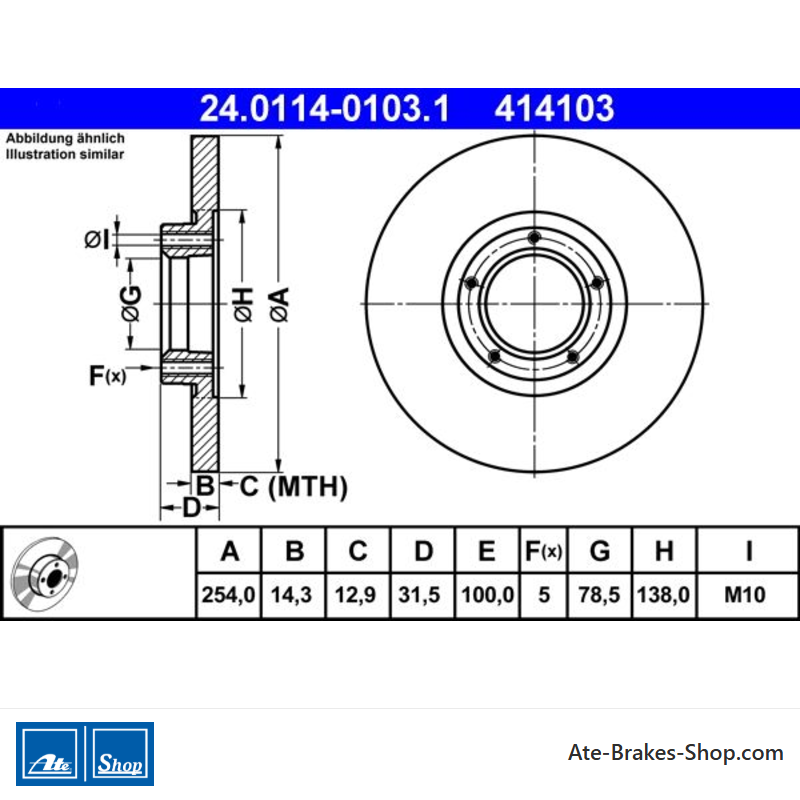

24.0114-0103.1
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Ford
- Número de Comercio
- 414103
- País de origen
- Italia
- Altura
- 31,5
- Diámetro exterior [mm]
- 254,0
- Grosor del disco de freno [mm]
- 14,3
- Tipo de disco de freno
- sólido
- Número de agujeros para los tornillos
- 5
- Diámetro del agujero del perno [mm]
- 100,0
- Diámetro de centrado [mm]
- 78,5
- Diámetro interior [mm]
- 138,0
- Tamaño del hilo
- M10
- Espesor mínimo [mm]
- 12,9
Referencias específicas
- ean13
- 4006633115070
- MPN
- 2401140103101
ATE 24.0114-0103.1
(240114-01031)
- Diámetro exterior [mm]: 254,0
- Diámetro interior [mm]: 138,0
- Grosor del disco de freno [mm]: 14,3
- Número de agujeros de perno: 5
- 2 piezas de disco de freno
- Número de intercambio: 414103
