ATE Originale zweiteilige Bremsscheibe (24011601081) für Volkswagen (VW)
87,12 €
(inkl. MwSt.)
72,00 € Steuerexzl.
Teilenummer:
ATE 24.0116-0108.1
(240116-01081)
- Außendurchmesser [mm]: 260,0
- Innendurchmesser [mm]: 144,0
- Bremsscheibendicke [mm]: 16,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 416108
Logistische Informationen:
- Ean-Code: 4006633127226
- Gewicht: 11.41kg
Specification of ATE 24.0116-0108.1 / 240116-01081 / 24011601081:
| OE Number | Reference info |
| VAG 701 615 301 C | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 701615301C | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 701 615 301 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 701615301 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Construction Year to 199604 for PR number 1LA Fitting Position Front Axle | 1990-07 - 2003-04 | 62 | 84 | 1968 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Construction Year to 199604 for PR number 1LA Fitting Position Front Axle | 1990-11 - 2003-04 | 81 | 110 | 2461 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) for PR number 1LA Fitting Position Front Axle | 1990-09 - 1995-12 | 44 | 60 | 1896 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) for PR number 1LA Fitting Position Front Axle | 1990-07 - 1995-12 | 45 | 61 | 1896 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Construction Year to 199604 for PR number 1LA Fitting Position Front Axle | 1992-10 - 2003-04 | 50 | 68 | 1896 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Construction Year to 199604 for PR number 1LA Fitting Position Front Axle | 1990-07 - 1998-04 | 57 | 78 | 2370 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Construction Year to 199604 for PR number 1LA Fitting Position Front Axle | 1995-09 - 2003-04 | 75 | 102 | 2461 | Van |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, for PR number 1LA Fitting Position Front Axle | 1990-12 - 1992-07 | 49 | 67 | 1781 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Construction Year to 199604 for PR number 1LA Fitting Position Front Axle | 1990-09 - 2003-04 | 62 | 84 | 1968 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Construction Year to 199604 for PR number 1LA Fitting Position Front Axle | 1990-09 - 2003-06 | 81 | 110 | 2461 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, for PR number 1LA Fitting Position Front Axle | 1990-09 - 1995-12 | 44 | 60 | 1896 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Construction Year to 199604 for PR number 1LA Fitting Position Front Axle | 1992-10 - 2003-04 | 50 | 68 | 1896 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Construction Year to 199604 for PR number 1LA Fitting Position Front Axle | 1990-09 - 1998-04 | 57 | 78 | 2370 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Construction Year to 199604 for PR number 1LA Fitting Position Front Axle | 1995-09 - 2003-04 | 75 | 102 | 2461 | Bus |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Construction Year to 199604 for PR number 1LA Fitting Position Front Axle | 1990-07 - 2003-04 | 62 | 84 | 1968 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Construction Year to 199604 for PR number 1LA Fitting Position Front Axle | 1990-11 - 2003-04 | 81 | 110 | 2461 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D for PR number 1LA Fitting Position Front Axle | 1990-09 - 1995-12 | 44 | 60 | 1896 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D for PR number 1LA Fitting Position Front Axle | 1990-07 - 1995-12 | 45 | 61 | 1896 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Construction Year to 199604 for PR number 1LA Fitting Position Front Axle | 1992-10 - 2003-04 | 50 | 68 | 1896 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Construction Year to 199604 for PR number 1LA Fitting Position Front Axle | 1990-09 - 1998-04 | 57 | 78 | 2370 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Construction Year to 199604 for PR number 1LA Fitting Position Front Axle | 1995-09 - 2003-04 | 75 | 102 | 2461 | Platform/Chassis |

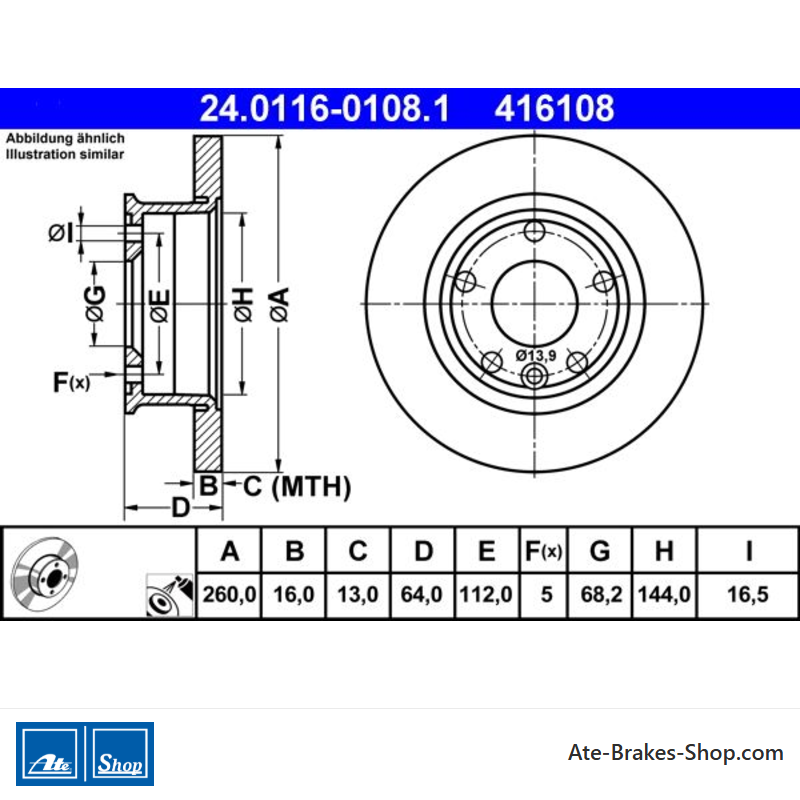

24.0116-0108.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Volkswagen (VW)
- Handelsnummer
- 416108
- Herkunftsland
- Tschechien
- Höhe
- 64,0
- Außendurchmesser [mm]
- 260,0
- Bremsscheibendicke [mm]
- 16,0
- Bremsscheibentyp
- Solide
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 112,0
- Zentrierungsdurchmesser [mm]
- 68,2
- Innendurchmesser [mm]
- 144,0
- Bohrdurchmesser [mm]
- 16,5
- Mindestdicke [mm]
- 13,0
Spezifische Referenzen
- ean13
- 4006633127226
- Hersteller-Teilenummer (MPN)
- 2401160108101
ATE 24.0116-0108.1
(240116-01081)
- Außendurchmesser [mm]: 260,0
- Innendurchmesser [mm]: 144,0
- Bremsscheibendicke [mm]: 16,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 416108
