ATE Disque de frein original en 2 pièces (24011601081) pour Volkswagen (VW)
87,12 €
TTC
72,00 € fiscalité ex.
Numéro de pièce :
ATE 24.0116-0108.1
(240116-01081)
- Diamètre extérieur [mm] : 260,0
- Diamètre intérieur [mm] : 144,0
- Épaisseur du disque de frein [mm] : 16,0
- Nombre de trous de boulon : 5
- 2 pièces de disque de frein
- Numéro d’échange : 416108
Informations logistiques :
- Code Ean : 4006633127226
- Poids : 11.41kg
Specification of ATE 24.0116-0108.1 / 240116-01081 / 24011601081:
| OE Number | Reference info |
| VAG 701 615 301 C | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 701615301C | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 701 615 301 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 701615301 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Construction Year to 199604 for PR number 1LA Fitting Position Front Axle | 1990-07 - 2003-04 | 62 | 84 | 1968 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Construction Year to 199604 for PR number 1LA Fitting Position Front Axle | 1990-11 - 2003-04 | 81 | 110 | 2461 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) for PR number 1LA Fitting Position Front Axle | 1990-09 - 1995-12 | 44 | 60 | 1896 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) for PR number 1LA Fitting Position Front Axle | 1990-07 - 1995-12 | 45 | 61 | 1896 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Construction Year to 199604 for PR number 1LA Fitting Position Front Axle | 1992-10 - 2003-04 | 50 | 68 | 1896 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Construction Year to 199604 for PR number 1LA Fitting Position Front Axle | 1990-07 - 1998-04 | 57 | 78 | 2370 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Construction Year to 199604 for PR number 1LA Fitting Position Front Axle | 1995-09 - 2003-04 | 75 | 102 | 2461 | Van |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, for PR number 1LA Fitting Position Front Axle | 1990-12 - 1992-07 | 49 | 67 | 1781 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Construction Year to 199604 for PR number 1LA Fitting Position Front Axle | 1990-09 - 2003-04 | 62 | 84 | 1968 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Construction Year to 199604 for PR number 1LA Fitting Position Front Axle | 1990-09 - 2003-06 | 81 | 110 | 2461 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, for PR number 1LA Fitting Position Front Axle | 1990-09 - 1995-12 | 44 | 60 | 1896 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Construction Year to 199604 for PR number 1LA Fitting Position Front Axle | 1992-10 - 2003-04 | 50 | 68 | 1896 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Construction Year to 199604 for PR number 1LA Fitting Position Front Axle | 1990-09 - 1998-04 | 57 | 78 | 2370 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Construction Year to 199604 for PR number 1LA Fitting Position Front Axle | 1995-09 - 2003-04 | 75 | 102 | 2461 | Bus |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Construction Year to 199604 for PR number 1LA Fitting Position Front Axle | 1990-07 - 2003-04 | 62 | 84 | 1968 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Construction Year to 199604 for PR number 1LA Fitting Position Front Axle | 1990-11 - 2003-04 | 81 | 110 | 2461 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D for PR number 1LA Fitting Position Front Axle | 1990-09 - 1995-12 | 44 | 60 | 1896 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D for PR number 1LA Fitting Position Front Axle | 1990-07 - 1995-12 | 45 | 61 | 1896 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Construction Year to 199604 for PR number 1LA Fitting Position Front Axle | 1992-10 - 2003-04 | 50 | 68 | 1896 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Construction Year to 199604 for PR number 1LA Fitting Position Front Axle | 1990-09 - 1998-04 | 57 | 78 | 2370 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Construction Year to 199604 for PR number 1LA Fitting Position Front Axle | 1995-09 - 2003-04 | 75 | 102 | 2461 | Platform/Chassis |

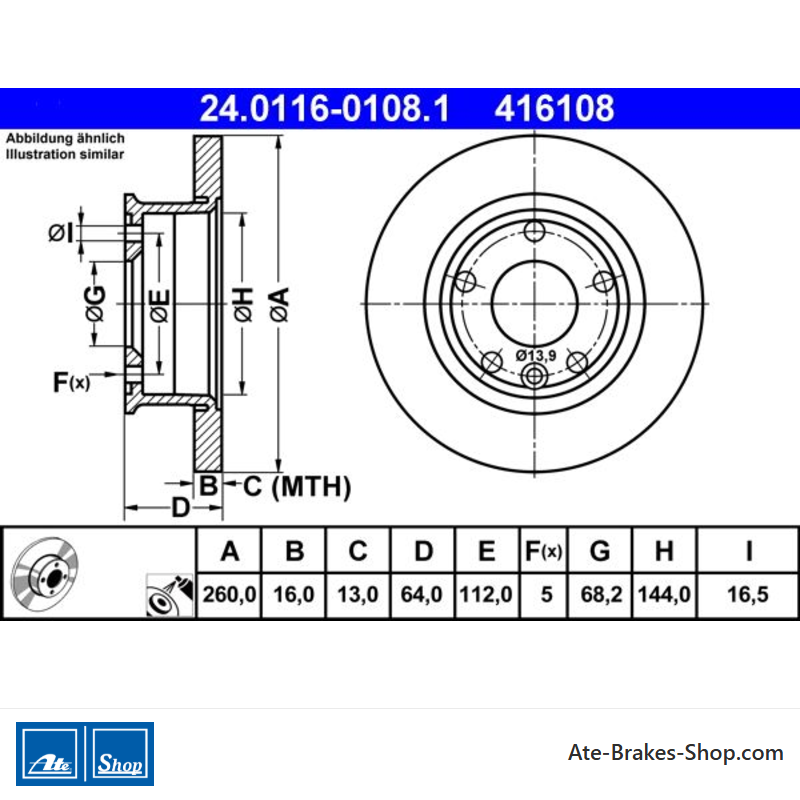

24.0116-0108.1
Fiche technique
- Statut de l’article
- Ordonnance
- Marque automobile
- Volkswagen (VW)
- Numéro de trade
- 416108
- Pays d’origine
- Tchéquie
- Hauteur
- 64,0
- Diamètre extérieur [mm]
- 260,0
- Épaisseur du disque de frein [mm]
- 16,0
- Type à disque de frein
- solide
- Surface
- Enduit
- Nombre de trous de boulons
- 5
- Diamètre du trou de boulon [mm]
- 112,0
- Diamètre de centrage [mm]
- 68,2
- Diamètre intérieur [mm]
- 144,0
- Diamètre du canon [mm]
- 16,5
- Épaisseur minimale [mm]
- 13,0
Références spécifiques
- EAN-13
- 4006633127226
- MPN
- 2401160108101
ATE 24.0116-0108.1
(240116-01081)
- Diamètre extérieur [mm] : 260,0
- Diamètre intérieur [mm] : 144,0
- Épaisseur du disque de frein [mm] : 16,0
- Nombre de trous de boulon : 5
- 2 pièces de disque de frein
- Numéro d’échange : 416108
