ATE Originale zweiteilige Bremsscheibe (24011601171) für Daihatsu
79,86 €
(inkl. MwSt.)
66,00 € Steuerexzl.
Teilenummer:
ATE 24.0116-0117.1
(240116-01171)
- Außendurchmesser [mm]: 273,0
- Innendurchmesser [mm]: 162,0
- Bremsscheibendicke [mm]: 16,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 416117
Logistische Informationen:
- Ean-Code: 4006633220750
- Gewicht: 10.92kg

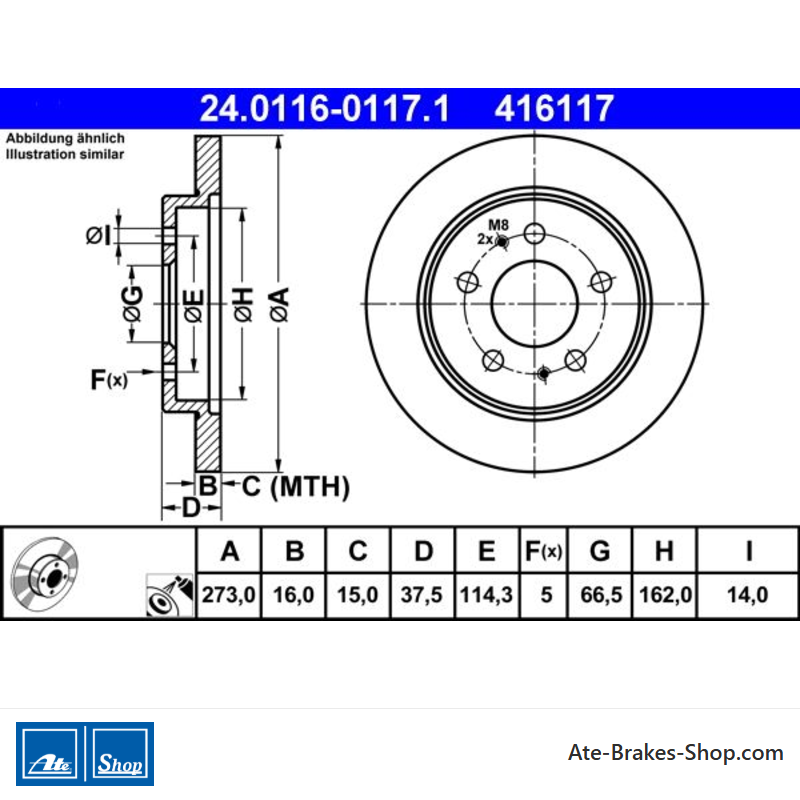

Specification of ATE 24.0116-0117.1 / 240116-01171 / 24011601171:
| OE Number | Reference info |
| DAIHATSU 43512-87402-000 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| DAIHATSU TERIOS (J1_) Construction Year to 200009 Fitting Position Front Axle | 1997-10 - 2000-10 | 61 | 83 | 1296 | Closed Off-Road Vehicle |
| DAIHATSU TERIOS (J1_) Fitting Position Front Axle | 2000-07 - 2006-10 | 63 | 86 | 1298 | Closed Off-Road Vehicle |
| DAIHATSU TERIOS (J1_) Fitting Position Front Axle | 2000-10 - 2005-10 | 63 | 86 | 1298 | Closed Off-Road Vehicle |
| DAIHATSU TERIOS (J2_, F7__) Construction Year to 201301 Fitting Position Front Axle | 2005-11 - | 63 | 86 | 1298 | Closed Off-Road Vehicle |
| DAIHATSU TERIOS (J2_, F7__) Construction Year to 201301 Fitting Position Front Axle | 2010-09 - | 75 | 102 | 1495 | Closed Off-Road Vehicle |
| DAIHATSU TERIOS (J2_, F7__) Construction Year to 201301 Fitting Position Front Axle | 2010-09 - | 75 | 102 | 1495 | Closed Off-Road Vehicle |
| DAIHATSU TERIOS (J2_, F7__) Construction Year to 201301 Fitting Position Front Axle | 2005-11 - | 77 | 105 | 1495 | Closed Off-Road Vehicle |
| DAIHATSU TERIOS (J2_, F7__) Construction Year to 201301 Fitting Position Front Axle | 2006-05 - | 77 | 105 | 1495 | Closed Off-Road Vehicle |
| DAIHATSU TERIOS (J2_, F7__) Fitting Position Front Axle | 2009-06 - | 77 | 105 | 1495 | Closed Off-Road Vehicle |
24.0116-0117.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Daihatsu
- Handelsnummer
- 416117
- Herkunftsland
- Italien
- Höhe
- 37,5
- Außendurchmesser [mm]
- 273,0
- Bremsscheibendicke [mm]
- 16,0
- Bremsscheibentyp
- Solide
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 114,3
- Zentrierungsdurchmesser [mm]
- 66,5
- Innendurchmesser [mm]
- 162,0
- Bohrdurchmesser [mm]
- 14,0
- Mindestdicke [mm]
- 15,0
Spezifische Referenzen
- ean13
- 4006633220750
- Hersteller-Teilenummer (MPN)
- 2401160117102
ATE 24.0116-0117.1
(240116-01171)
- Außendurchmesser [mm]: 273,0
- Innendurchmesser [mm]: 162,0
- Bremsscheibendicke [mm]: 16,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 416117
