ATE Originele 2-delige remschijf (24011601171) voor Daihatsu
€ 79,86
(incl. btw)
€ 66,00 belastingexcl.
Onderdeelnummer:
ATE 24.0116-0117.1
(240116-01171)
- Buitendiameter [mm]: 273,0
- Binnendiameter [mm]: 162,0
- Remschijfdikte [mm]: 16,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 416117
Logistieke informatie:
- Ean Code: 4006633220750
- Gewicht: 10.92kg
Specification of ATE 24.0116-0117.1 / 240116-01171 / 24011601171:
| OE Number | Reference info |
| DAIHATSU 43512-87402-000 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| DAIHATSU TERIOS (J1_) Construction Year to 200009 Fitting Position Front Axle | 1997-10 - 2000-10 | 61 | 83 | 1296 | Closed Off-Road Vehicle |
| DAIHATSU TERIOS (J1_) Fitting Position Front Axle | 2000-07 - 2006-10 | 63 | 86 | 1298 | Closed Off-Road Vehicle |
| DAIHATSU TERIOS (J1_) Fitting Position Front Axle | 2000-10 - 2005-10 | 63 | 86 | 1298 | Closed Off-Road Vehicle |
| DAIHATSU TERIOS (J2_, F7__) Construction Year to 201301 Fitting Position Front Axle | 2005-11 - | 63 | 86 | 1298 | Closed Off-Road Vehicle |
| DAIHATSU TERIOS (J2_, F7__) Construction Year to 201301 Fitting Position Front Axle | 2010-09 - | 75 | 102 | 1495 | Closed Off-Road Vehicle |
| DAIHATSU TERIOS (J2_, F7__) Construction Year to 201301 Fitting Position Front Axle | 2010-09 - | 75 | 102 | 1495 | Closed Off-Road Vehicle |
| DAIHATSU TERIOS (J2_, F7__) Construction Year to 201301 Fitting Position Front Axle | 2005-11 - | 77 | 105 | 1495 | Closed Off-Road Vehicle |
| DAIHATSU TERIOS (J2_, F7__) Construction Year to 201301 Fitting Position Front Axle | 2006-05 - | 77 | 105 | 1495 | Closed Off-Road Vehicle |
| DAIHATSU TERIOS (J2_, F7__) Fitting Position Front Axle | 2009-06 - | 77 | 105 | 1495 | Closed Off-Road Vehicle |

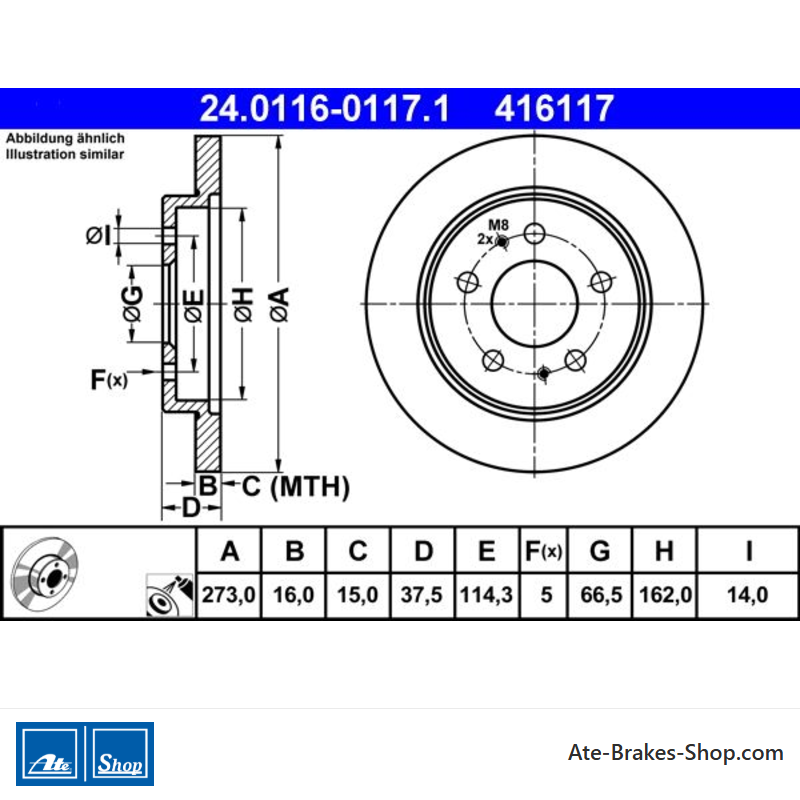

24.0116-0117.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Daihatsu
- Handelsnummer
- 416117
- Land van Herkomst
- Italië
- Hoogte
- 37,5
- Buitendiameter [mm]
- 273,0
- Remschijfdikte [mm]
- 16,0
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 114,3
- Centreringsdiameter [mm]
- 66,5
- Binnendiameter [mm]
- 162,0
- Bordiameter [mm]
- 14,0
- Minimale dikte [mm]
- 15,0
Specifieke referenties
- ean13
- 4006633220750
- MPN
- 2401160117102
ATE 24.0116-0117.1
(240116-01171)
- Buitendiameter [mm]: 273,0
- Binnendiameter [mm]: 162,0
- Remschijfdikte [mm]: 16,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 416117
