ATE Originale zweiteilige Bremsscheibe (24012001371) für Audi
148,83 €
(inkl. MwSt.)
123,00 € Steuerexzl.
Teilenummer:
ATE 24.0120-0137.1
(240120-01371)
- Außendurchmesser [mm]: 269,0
- Innendurchmesser [mm]: 156,0
- Bremsscheibendicke [mm]: 19,9
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 420137
Logistische Informationen:
- Ean-Code: 4006633106191
- Gewicht: 10.60kg
Specification of ATE 24.0120-0137.1 / 240120-01371 / 24012001371:
| OE Number | Reference info |
| VAG 447 615 601 A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 447615601A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| AUDI 100 C3 Avant (445, 446) Payload for increased payload Fitting Position Rear Axle | 1986-08 - 1990-07 | 65 | 88 | 1781 | Estate |
| AUDI 100 C3 Avant (445, 446) Payload for increased payload Fitting Position Rear Axle | 1984-10 - 1988-07 | 66 | 90 | 1781 | Estate |
| AUDI 100 C3 Avant (445, 446) Payload for increased payload Fitting Position Rear Axle | 1985-08 - 1990-10 | 66 | 90 | 1781 | Estate |
| AUDI 100 C3 Avant (445, 446) Payload for increased payload Fitting Position Rear Axle | 1985-08 - 1986-07 | 88 | 120 | 2226 | Estate |
| AUDI 100 C3 Avant (445, 446) Construction Year from 198410 Payload for increased payload Fitting Position Rear Axle | 1984-08 - 1988-12 | 101 | 137 | 2226 | Estate |
| AUDI 100 C3 Avant (445, 446) Payload for increased payload Fitting Position Rear Axle | 1989-06 - 1990-11 | 101 | 137 | 2226 | Estate |
| AUDI 100 C3 Avant (445, 446) Payload for increased payload Fitting Position Rear Axle | 1986-08 - 1990-11 | 121 | 165 | 2226 | Estate |
| AUDI 100 C3 Avant (445, 446) Payload for increased payload Fitting Position Rear Axle | 1990-01 - 1990-11 | 98 | 133 | 2309 | Estate |
| AUDI 100 C3 Avant (445, 446) Payload for increased payload Fitting Position Rear Axle | 1986-08 - 1990-11 | 100 | 136 | 2309 | Estate |
| AUDI 200 C3 Saloon (447, 448) Construction Year to 199011 Fitting Position Rear Axle | 1989-03 - 1990-12 | 162 | 220 | 2226 | Saloon |
| AUDI 200 C3 Avant (447, 448) Construction Year from 198411 Fitting Position Rear Axle | 1983-09 - 1988-01 | 134 | 182 | 2144 | Estate |
| AUDI 200 C3 Avant (447, 448) Construction Year from 198411 Construction Year to 199011 Fitting Position Rear Axle | 1983-09 - 1990-12 | 121 | 165 | 2226 | Estate |
| AUDI A8 D2 (4D2, 4D8) Construction Year to 199809 Fitting Position Rear Axle | 1996-04 - 2002-09 | 142 | 193 | 2771 | Saloon |
| AUDI A8 D2 (4D2, 4D8) Construction Year to 199809 Special Purpose Vehicle not for special-purpose vehicles Fitting Position Rear Axle | 1996-04 - 2002-09 | 142 | 193 | 2771 | Saloon |
| AUDI A8 D2 (4D2, 4D8) Construction Year from 199810 Fitting Position Rear Axle | 1995-07 - 1998-12 | 169 | 230 | 3697 | Saloon |
| AUDI A8 D2 (4D2, 4D8) Construction Year from 199510 Construction Year to 199809 Special Purpose Vehicle not for special-purpose vehicles Fitting Position Rear Axle | 1995-07 - 1998-11 | 169 | 230 | 3697 | Saloon |
| AUDI A8 D2 (4D2, 4D8) Fitting Position Rear Axle | 1998-11 - 2002-09 | 191 | 260 | 3697 | Saloon |
| AUDI A8 D2 (4D2, 4D8) Special Purpose Vehicle not for special-purpose vehicles Fitting Position Rear Axle | 1994-03 - 1996-07 | 180 | 245 | 4172 | Saloon |
| AUDI A8 D2 (4D2, 4D8) Construction Year from 199406 Construction Year to 199809 Special Purpose Vehicle not for special-purpose vehicles Fitting Position Rear Axle | 1994-03 - 1998-11 | 220 | 299 | 4172 | Saloon |
| AUDI A8 D2 (4D2, 4D8) Construction Year to 199809 Special Purpose Vehicle not for special-purpose vehicles Fitting Position Rear Axle | 1996-07 - 1999-06 | 250 | 340 | 4172 | Saloon |

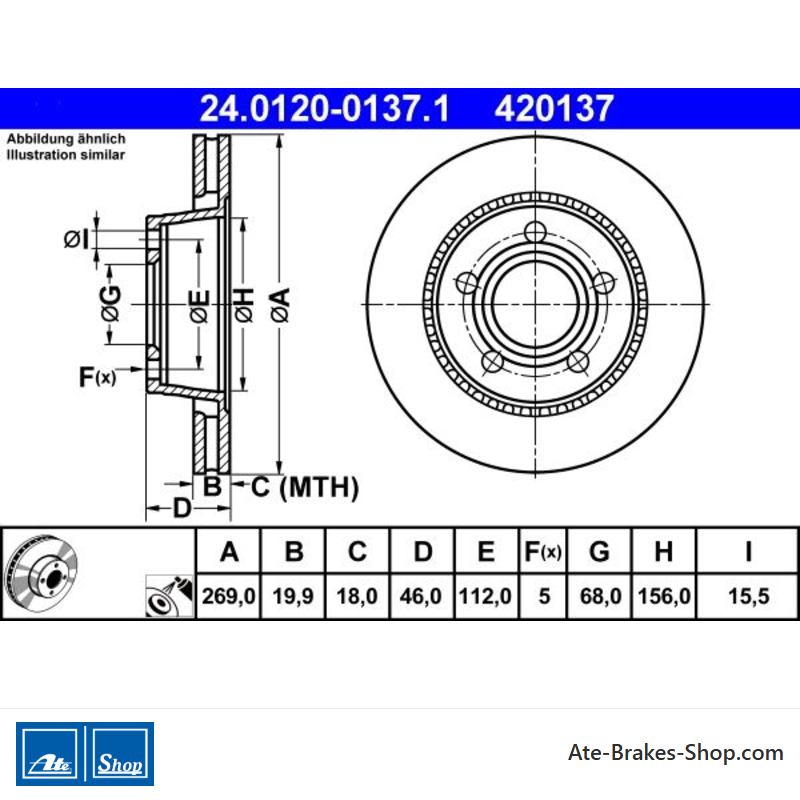

24.0120-0137.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Audi
- Handelsnummer
- 420137
- Herkunftsland
- QU
- Höhe
- 46,0
- Außendurchmesser [mm]
- 269,0
- Bremsscheibendicke [mm]
- 19,9
- Bremsscheibentyp
- Entlüftet
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 112,0
- Zentrierungsdurchmesser [mm]
- 68,0
- Innendurchmesser [mm]
- 156,0
- Bohrdurchmesser [mm]
- 15,5
- Mindestdicke [mm]
- 18,0
Spezifische Referenzen
- ean13
- 4006633106191
- Hersteller-Teilenummer (MPN)
- 2401200137101
ATE 24.0120-0137.1
(240120-01371)
- Außendurchmesser [mm]: 269,0
- Innendurchmesser [mm]: 156,0
- Bremsscheibendicke [mm]: 19,9
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 420137
