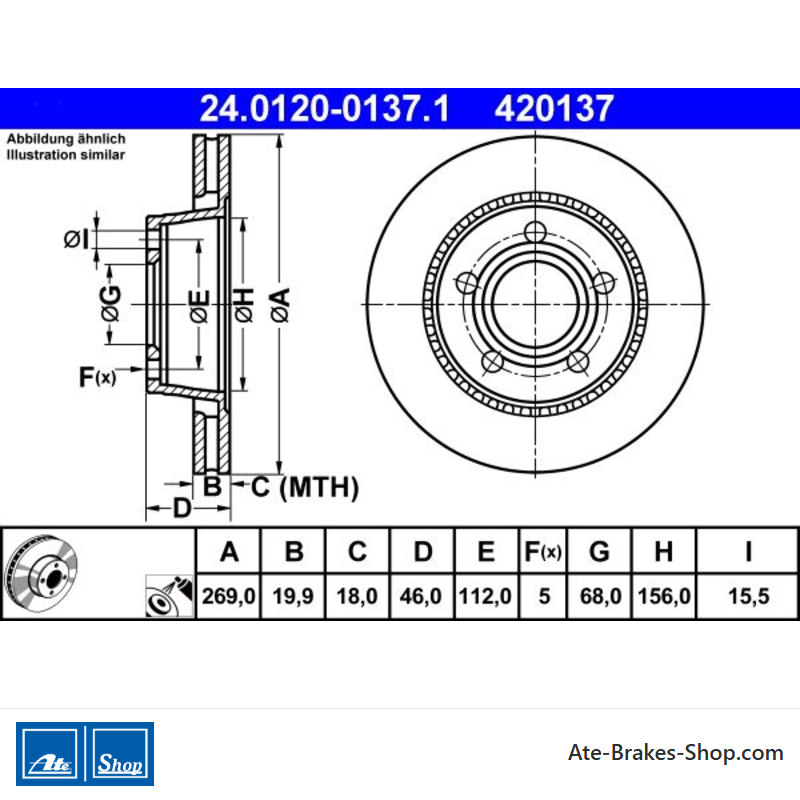

ATE Disco de freno original de 2 piezas (24012001371) para Audi
148,83 €
(impuestos inc.)
123,00 € fiscales excl.
Número de parte:
ATE 24.0120-0137.1
(240120-01371)
- Diámetro exterior [mm]: 269,0
- Diámetro interior [mm]: 156,0
- Grosor del disco de freno [mm]: 19,9
- Número de agujeros de perno: 5
- 2 piezas de disco de freno
- Número de intercambio: 420137
Información logística:
- Código Ean: 4006633106191
- Peso: 10.60kg
Specification of ATE 24.0120-0137.1 / 240120-01371 / 24012001371:
| OE Number | Reference info |
| VAG 447 615 601 A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 447615601A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| AUDI 100 C3 Avant (445, 446) Payload for increased payload Fitting Position Rear Axle | 1986-08 - 1990-07 | 65 | 88 | 1781 | Estate |
| AUDI 100 C3 Avant (445, 446) Payload for increased payload Fitting Position Rear Axle | 1984-10 - 1988-07 | 66 | 90 | 1781 | Estate |
| AUDI 100 C3 Avant (445, 446) Payload for increased payload Fitting Position Rear Axle | 1985-08 - 1990-10 | 66 | 90 | 1781 | Estate |
| AUDI 100 C3 Avant (445, 446) Payload for increased payload Fitting Position Rear Axle | 1985-08 - 1986-07 | 88 | 120 | 2226 | Estate |
| AUDI 100 C3 Avant (445, 446) Construction Year from 198410 Payload for increased payload Fitting Position Rear Axle | 1984-08 - 1988-12 | 101 | 137 | 2226 | Estate |
| AUDI 100 C3 Avant (445, 446) Payload for increased payload Fitting Position Rear Axle | 1989-06 - 1990-11 | 101 | 137 | 2226 | Estate |
| AUDI 100 C3 Avant (445, 446) Payload for increased payload Fitting Position Rear Axle | 1986-08 - 1990-11 | 121 | 165 | 2226 | Estate |
| AUDI 100 C3 Avant (445, 446) Payload for increased payload Fitting Position Rear Axle | 1990-01 - 1990-11 | 98 | 133 | 2309 | Estate |
| AUDI 100 C3 Avant (445, 446) Payload for increased payload Fitting Position Rear Axle | 1986-08 - 1990-11 | 100 | 136 | 2309 | Estate |
| AUDI 200 C3 Saloon (447, 448) Construction Year to 199011 Fitting Position Rear Axle | 1989-03 - 1990-12 | 162 | 220 | 2226 | Saloon |
| AUDI 200 C3 Avant (447, 448) Construction Year from 198411 Fitting Position Rear Axle | 1983-09 - 1988-01 | 134 | 182 | 2144 | Estate |
| AUDI 200 C3 Avant (447, 448) Construction Year from 198411 Construction Year to 199011 Fitting Position Rear Axle | 1983-09 - 1990-12 | 121 | 165 | 2226 | Estate |
| AUDI A8 D2 (4D2, 4D8) Construction Year to 199809 Fitting Position Rear Axle | 1996-04 - 2002-09 | 142 | 193 | 2771 | Saloon |
| AUDI A8 D2 (4D2, 4D8) Construction Year to 199809 Special Purpose Vehicle not for special-purpose vehicles Fitting Position Rear Axle | 1996-04 - 2002-09 | 142 | 193 | 2771 | Saloon |
| AUDI A8 D2 (4D2, 4D8) Construction Year from 199810 Fitting Position Rear Axle | 1995-07 - 1998-12 | 169 | 230 | 3697 | Saloon |
| AUDI A8 D2 (4D2, 4D8) Construction Year from 199510 Construction Year to 199809 Special Purpose Vehicle not for special-purpose vehicles Fitting Position Rear Axle | 1995-07 - 1998-11 | 169 | 230 | 3697 | Saloon |
| AUDI A8 D2 (4D2, 4D8) Fitting Position Rear Axle | 1998-11 - 2002-09 | 191 | 260 | 3697 | Saloon |
| AUDI A8 D2 (4D2, 4D8) Special Purpose Vehicle not for special-purpose vehicles Fitting Position Rear Axle | 1994-03 - 1996-07 | 180 | 245 | 4172 | Saloon |
| AUDI A8 D2 (4D2, 4D8) Construction Year from 199406 Construction Year to 199809 Special Purpose Vehicle not for special-purpose vehicles Fitting Position Rear Axle | 1994-03 - 1998-11 | 220 | 299 | 4172 | Saloon |
| AUDI A8 D2 (4D2, 4D8) Construction Year to 199809 Special Purpose Vehicle not for special-purpose vehicles Fitting Position Rear Axle | 1996-07 - 1999-06 | 250 | 340 | 4172 | Saloon |
24.0120-0137.1
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Audi
- Número de Comercio
- 420137
- País de origen
- QU
- Altura
- 46,0
- Diámetro exterior [mm]
- 269,0
- Grosor del disco de freno [mm]
- 19,9
- Tipo de disco de freno
- Ventilado
- Superficie
- Revestido
- Número de agujeros para los tornillos
- 5
- Diámetro del agujero del perno [mm]
- 112,0
- Diámetro de centrado [mm]
- 68,0
- Diámetro interior [mm]
- 156,0
- Diámetro del diámetro del diámetro [mm]
- 15,5
- Espesor mínimo [mm]
- 18,0
Referencias específicas
- ean13
- 4006633106191
- MPN
- 2401200137101
ATE 24.0120-0137.1
(240120-01371)
- Diámetro exterior [mm]: 269,0
- Diámetro interior [mm]: 156,0
- Grosor del disco de freno [mm]: 19,9
- Número de agujeros de perno: 5
- 2 piezas de disco de freno
- Número de intercambio: 420137
