ATE Original 2 Teile Bremsscheibe (24012202521) für Fiat, Suzuki
112,53 €
(inkl. MwSt.)
93,00 € Steuerexzl.
Teilenummer:
ATE 24.0122-0252.1
(240122-02521)

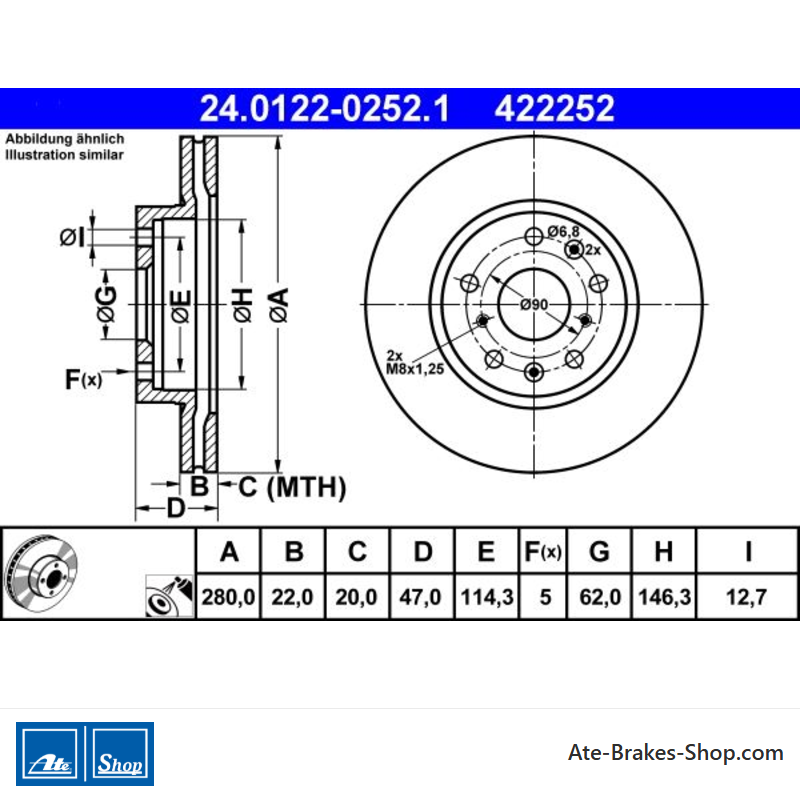

- Außendurchmesser [mm]: 280,0
- Innendurchmesser [mm]: 146,3
- Bremsscheibendicke [mm]: 22,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 422252
Logistische Informationen:
- Ean-Code: 4006633313155
- Gewicht: 11.99kg
Specification of ATE 24.0122-0252.1 / 240122-02521 / 24012202521:
| OE Number | Reference info |
| FIAT 71742850 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 71750162 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 71768306 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 55311-79J01 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 55311-80J02 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 55311-79J02 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 55311-80J03 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FIAT SEDICI (189_) Fitting Position Front Axle | 2006-06 - 2014-10 | 79 | 107 | 1586 | SUV |
| FIAT SEDICI (189_) Fitting Position Front Axle | 2006-06 - 2014-10 | 79 | 107 | 1586 | SUV |
| FIAT SEDICI (189_) Fitting Position Front Axle | 2006-06 - 2014-10 | 88 | 120 | 1586 | SUV |
| FIAT SEDICI (189_) Fitting Position Front Axle | 2006-06 - 2014-10 | 88 | 120 | 1586 | SUV |
| FIAT SEDICI (189_) Fitting Position Front Axle | 2006-06 - 2011-10 | 88 | 120 | 1910 | SUV |
| FIAT SEDICI (189_) Fitting Position Front Axle | 2006-06 - 2011-10 | 88 | 120 | 1910 | SUV |
| FIAT SEDICI (189_) Fitting Position Front Axle | 2006-06 - 2014-10 | 99 | 135 | 1956 | SUV |
| FIAT SEDICI (189_) Fitting Position Front Axle | 2006-06 - 2014-10 | 99 | 135 | 1956 | SUV |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Fitting Position Front Axle | 2006-06 - 2010-07 | 73 | 99 | 1490 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Fitting Position Front Axle | 2007-07 - 2015-12 | 81 | 110 | 1490 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Fitting Position Front Axle | 2010-07 - | 82 | 112 | 1490 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Fitting Position Front Axle | 2006-06 - | 79 | 107 | 1586 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Fitting Position Front Axle | 2006-06 - | 79 | 107 | 1586 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Fitting Position Front Axle | 2009-07 - | 82 | 112 | 1586 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Fitting Position Front Axle | 2009-07 - | 88 | 120 | 1586 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Fitting Position Front Axle | 2009-07 - | 88 | 120 | 1586 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Fitting Position Front Axle | 2006-06 - | 107 | 146 | 1995 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Fitting Position Front Axle | 2007-04 - | 66 | 90 | 1560 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Fitting Position Front Axle | 2006-06 - | 88 | 120 | 1910 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Fitting Position Front Axle | 2006-06 - | 88 | 120 | 1910 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Fitting Position Front Axle | 2009-07 - | 99 | 135 | 1956 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Fitting Position Front Axle | 2009-07 - | 99 | 135 | 1956 | Hatchback |
| SUZUKI SX4 Saloon (GY, RW) Fitting Position Front Axle | 2007-10 - | 79 | 107 | 1586 | Saloon |
| SUZUKI SX4 Saloon (GY, RW) Fitting Position Front Axle | 2007-10 - | 88 | 120 | 1586 | Saloon |
24.0122-0252.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Fiat
Suzuki - Handelsnummer
- 422252
- Herkunftsland
- China
- Höhe
- 47,0
- Außendurchmesser [mm]
- 280,0
- Bremsscheibendicke [mm]
- 22,0
- Bremsscheibentyp
- Entlüftet
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 114,3
- Zentrierungsdurchmesser [mm]
- 62,0
- Innendurchmesser [mm]
- 146,3
- Bohrdurchmesser [mm]
- 12,7
- Mindestdicke [mm]
- 20,0
Spezifische Referenzen
- ean13
- 4006633313155
- Hersteller-Teilenummer (MPN)
- 2401220252102
ATE 24.0122-0252.1
(240122-02521)
- Außendurchmesser [mm]: 280,0
- Innendurchmesser [mm]: 146,3
- Bremsscheibendicke [mm]: 22,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 422252
