ATE Originele 2-delige remschijf (24012202521) voor Fiat, Suzuki
€ 112,53
(incl. btw)
€ 93,00 belastingexcl.
Onderdeelnummer:
ATE 24.0122-0252.1
(240122-02521)
- Buitendiameter [mm]: 280,0
- Binnendiameter [mm]: 146,3
- Remschijfdikte [mm]: 22,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 422252
Logistieke informatie:
- Ean Code: 4006633313155
- Gewicht: 11.99kg
Specification of ATE 24.0122-0252.1 / 240122-02521 / 24012202521:
| OE Number | Reference info |
| FIAT 71742850 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 71750162 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 71768306 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 55311-79J01 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 55311-80J02 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 55311-79J02 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 55311-80J03 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FIAT SEDICI (189_) Fitting Position Front Axle | 2006-06 - 2014-10 | 79 | 107 | 1586 | SUV |
| FIAT SEDICI (189_) Fitting Position Front Axle | 2006-06 - 2014-10 | 79 | 107 | 1586 | SUV |
| FIAT SEDICI (189_) Fitting Position Front Axle | 2006-06 - 2014-10 | 88 | 120 | 1586 | SUV |
| FIAT SEDICI (189_) Fitting Position Front Axle | 2006-06 - 2014-10 | 88 | 120 | 1586 | SUV |
| FIAT SEDICI (189_) Fitting Position Front Axle | 2006-06 - 2011-10 | 88 | 120 | 1910 | SUV |
| FIAT SEDICI (189_) Fitting Position Front Axle | 2006-06 - 2011-10 | 88 | 120 | 1910 | SUV |
| FIAT SEDICI (189_) Fitting Position Front Axle | 2006-06 - 2014-10 | 99 | 135 | 1956 | SUV |
| FIAT SEDICI (189_) Fitting Position Front Axle | 2006-06 - 2014-10 | 99 | 135 | 1956 | SUV |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Fitting Position Front Axle | 2006-06 - 2010-07 | 73 | 99 | 1490 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Fitting Position Front Axle | 2007-07 - 2015-12 | 81 | 110 | 1490 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Fitting Position Front Axle | 2010-07 - | 82 | 112 | 1490 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Fitting Position Front Axle | 2006-06 - | 79 | 107 | 1586 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Fitting Position Front Axle | 2006-06 - | 79 | 107 | 1586 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Fitting Position Front Axle | 2009-07 - | 82 | 112 | 1586 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Fitting Position Front Axle | 2009-07 - | 88 | 120 | 1586 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Fitting Position Front Axle | 2009-07 - | 88 | 120 | 1586 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Fitting Position Front Axle | 2006-06 - | 107 | 146 | 1995 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Fitting Position Front Axle | 2007-04 - | 66 | 90 | 1560 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Fitting Position Front Axle | 2006-06 - | 88 | 120 | 1910 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Fitting Position Front Axle | 2006-06 - | 88 | 120 | 1910 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Fitting Position Front Axle | 2009-07 - | 99 | 135 | 1956 | Hatchback |
| SUZUKI SX4 / SX4 CLASSIC (EY, GY) Fitting Position Front Axle | 2009-07 - | 99 | 135 | 1956 | Hatchback |
| SUZUKI SX4 Saloon (GY, RW) Fitting Position Front Axle | 2007-10 - | 79 | 107 | 1586 | Saloon |
| SUZUKI SX4 Saloon (GY, RW) Fitting Position Front Axle | 2007-10 - | 88 | 120 | 1586 | Saloon |

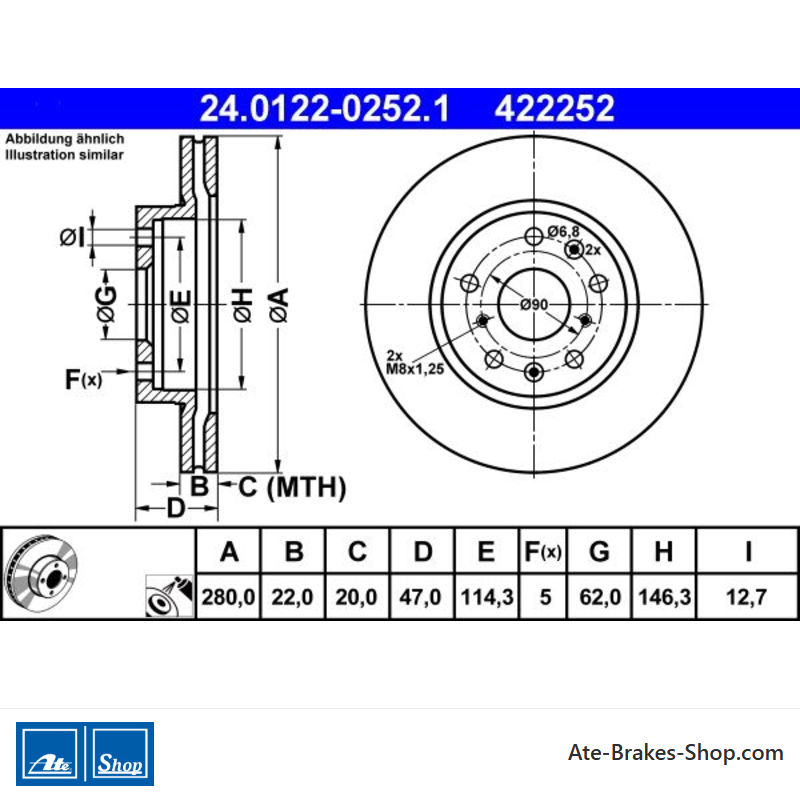

24.0122-0252.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Fiat
Suzuki - Handelsnummer
- 422252
- Land van Herkomst
- China
- Hoogte
- 47,0
- Buitendiameter [mm]
- 280,0
- Remschijfdikte [mm]
- 22,0
- Type remschijf
- Geventileerd
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 114,3
- Centreringsdiameter [mm]
- 62,0
- Binnendiameter [mm]
- 146,3
- Bordiameter [mm]
- 12,7
- Minimale dikte [mm]
- 20,0
Specifieke referenties
- ean13
- 4006633313155
- MPN
- 2401220252102
ATE 24.0122-0252.1
(240122-02521)
- Buitendiameter [mm]: 280,0
- Binnendiameter [mm]: 146,3
- Remschijfdikte [mm]: 22,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 422252
