ATE Original 2 Teile Bremsscheibe (24012202831) für Abarth
166,98 €
(inkl. MwSt.)
138,00 € Steuerexzl.
Teilenummer:
ATE 24.0122-0283.1
(240122-02831)
- Außendurchmesser [mm]: 284,0
- Innendurchmesser [mm]: 127,0
- Bremsscheibendicke [mm]: 22,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 422283
Logistische Informationen:
- Ean-Code: 4006633408615
- Gewicht: 12.85kg
Specification of ATE 24.0122-0283.1 / 240122-02831 / 24012202831:
| OE Number | Reference info |
| FIAT 5741446 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| ABARTH 500C / 595C / 695C Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Front Axle | 2008-05 - | 99 | 135 | 1368 | Convertible |
| ABARTH 500C / 595C / 695C Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Front Axle | 2009-09 - | 103 | 140 | 1368 | Convertible |
| ABARTH 500C / 595C / 695C Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Front Axle | 2016-05 - | 107 | 145 | 1368 | Convertible |
| ABARTH 500C / 595C / 695C Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Front Axle | 2011-05 - | 118 | 160 | 1368 | Convertible |
| ABARTH 500C / 595C / 695C Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Front Axle | 2016-05 - | 121 | 165 | 1368 | Convertible |
| ABARTH 500C / 595C / 695C Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Front Axle | 2010-06 - | 132 | 180 | 1368 | Convertible |
| ABARTH 500 / 595 / 695 Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Front Axle | 2008-08 - | 99 | 135 | 1368 | Hatchback |
| ABARTH 500 / 595 / 695 Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Front Axle | 2010-05 - | 103 | 140 | 1368 | Hatchback |
| ABARTH 500 / 595 / 695 Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Front Axle | 2016-05 - | 107 | 145 | 1368 | Hatchback |
| ABARTH 500 / 595 / 695 Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Front Axle | 2008-08 - | 118 | 160 | 1368 | Hatchback |
| ABARTH 500 / 595 / 695 Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Front Axle | 2016-06 - | 120 | 163 | 1368 | Hatchback |
| ABARTH 500 / 595 / 695 Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Front Axle | 2016-05 - | 121 | 165 | 1368 | Hatchback |
| ABARTH 500 / 595 / 695 Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Front Axle | 2008-08 - | 132 | 180 | 1368 | Hatchback |
| ABARTH 500 / 595 / 695 Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Front Axle | 2008-08 - | 140 | 190 | 1368 | Hatchback |
24.0122-0283.1

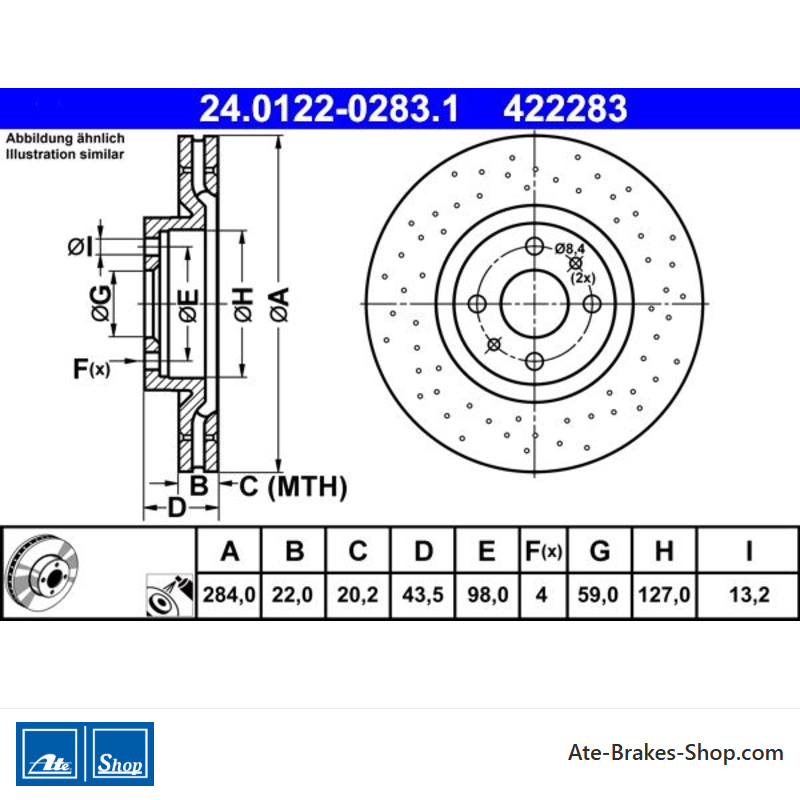

Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Abarth
- Handelsnummer
- 422283
- Herkunftsland
- Italien
- Höhe
- 43,5
- Außendurchmesser [mm]
- 284,0
- Bremsscheibendicke [mm]
- 22,0
- Bremsscheibentyp
- perforiert/entlüftet
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 98,0
- Zentrierungsdurchmesser [mm]
- 59,0
- Innendurchmesser [mm]
- 127,0
- Bohrdurchmesser [mm]
- 13,2
- Mindestdicke [mm]
- 20,2
Spezifische Referenzen
- ean13
- 4006633408615
- Hersteller-Teilenummer (MPN)
- 2401220283102
ATE 24.0122-0283.1
(240122-02831)
- Außendurchmesser [mm]: 284,0
- Innendurchmesser [mm]: 127,0
- Bremsscheibendicke [mm]: 22,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 422283
