ATE Originele 2-delige remschijf (24012202831) voor Abarth
€ 166,98
(incl. btw)
€ 138,00 belastingexcl.
Onderdeelnummer:
ATE 24.0122-0283.1
(240122-02831)
- Buitendiameter [mm]: 284,0
- Binnendiameter [mm]: 127,0
- Remschijfdikte [mm]: 22,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 422283
Logistieke informatie:
- Ean Code: 4006633408615
- Gewicht: 12.85kg
Specification of ATE 24.0122-0283.1 / 240122-02831 / 24012202831:
| OE Number | Reference info |
| FIAT 5741446 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| ABARTH 500C / 595C / 695C Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Front Axle | 2008-05 - | 99 | 135 | 1368 | Convertible |
| ABARTH 500C / 595C / 695C Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Front Axle | 2009-09 - | 103 | 140 | 1368 | Convertible |
| ABARTH 500C / 595C / 695C Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Front Axle | 2016-05 - | 107 | 145 | 1368 | Convertible |
| ABARTH 500C / 595C / 695C Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Front Axle | 2011-05 - | 118 | 160 | 1368 | Convertible |
| ABARTH 500C / 595C / 695C Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Front Axle | 2016-05 - | 121 | 165 | 1368 | Convertible |
| ABARTH 500C / 595C / 695C Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Front Axle | 2010-06 - | 132 | 180 | 1368 | Convertible |
| ABARTH 500 / 595 / 695 Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Front Axle | 2008-08 - | 99 | 135 | 1368 | Hatchback |
| ABARTH 500 / 595 / 695 Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Front Axle | 2010-05 - | 103 | 140 | 1368 | Hatchback |
| ABARTH 500 / 595 / 695 Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Front Axle | 2016-05 - | 107 | 145 | 1368 | Hatchback |
| ABARTH 500 / 595 / 695 Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Front Axle | 2008-08 - | 118 | 160 | 1368 | Hatchback |
| ABARTH 500 / 595 / 695 Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Front Axle | 2016-06 - | 120 | 163 | 1368 | Hatchback |
| ABARTH 500 / 595 / 695 Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Front Axle | 2016-05 - | 121 | 165 | 1368 | Hatchback |
| ABARTH 500 / 595 / 695 Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Front Axle | 2008-08 - | 132 | 180 | 1368 | Hatchback |
| ABARTH 500 / 595 / 695 Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Front Axle | 2008-08 - | 140 | 190 | 1368 | Hatchback |
24.0122-0283.1

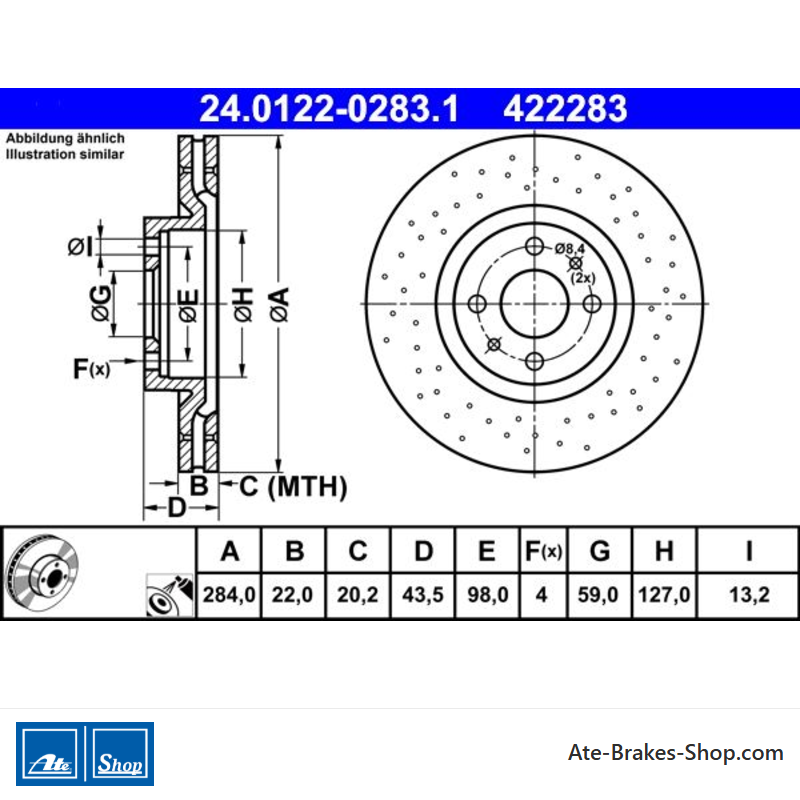

Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Abarth
- Handelsnummer
- 422283
- Land van Herkomst
- Italië
- Hoogte
- 43,5
- Buitendiameter [mm]
- 284,0
- Remschijfdikte [mm]
- 22,0
- Type remschijf
- geperforeerd/geventileerd
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 98,0
- Centreringsdiameter [mm]
- 59,0
- Binnendiameter [mm]
- 127,0
- Bordiameter [mm]
- 13,2
- Minimale dikte [mm]
- 20,2
Specifieke referenties
- ean13
- 4006633408615
- MPN
- 2401220283102
ATE 24.0122-0283.1
(240122-02831)
- Buitendiameter [mm]: 284,0
- Binnendiameter [mm]: 127,0
- Remschijfdikte [mm]: 22,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 422283
