ATE Original 2 Teile Bremsscheibe (24012202911) für Peugeot
search
  • ATE Original 2 Teile Bremsscheibe (24012202911) für Peugeot
  • ATE Original 2 Teile Bremsscheibe (24012202911) für Peugeot
  • ATE Original 2 Teile Bremsscheibe (24012202911) für Peugeot

ATE Original 2 Teile Bremsscheibe (24012202911) für Peugeot

98,01 € (inkl. MwSt.)

81,00 € Steuerexzl.

Teilenummer:

ATE 24.0122-0291.1
(240122-02911)

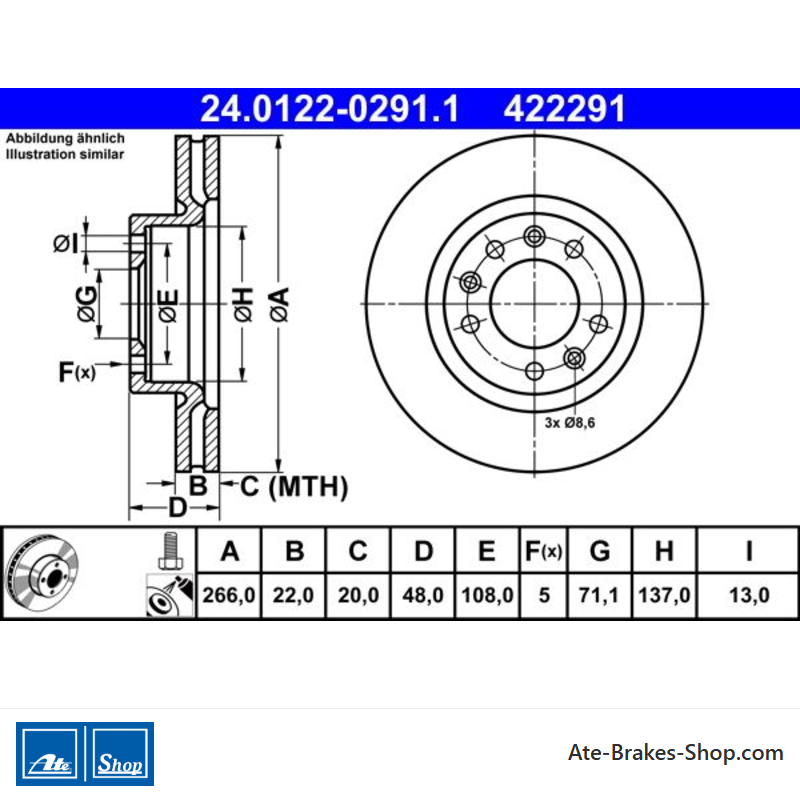

  • Außendurchmesser [mm]: 266,0
  • Innendurchmesser [mm]: 137,0
  • Bremsscheibendicke [mm]: 22,0
  • Anzahl der Bolzenlöcher: 5
  • 2 Teile Bremsscheiben
  • Handelsnummer: 422291
Logistische Informationen:
71,1Klicken Sie hier für detaillierte Informationen.
  • Ean-Code: 4006633417433
  • Gewicht: 11.01kg
Menge

Specification of ATE 24.0122-0291.1 / 240122-02911 / 24012202911:

OE NumberReference info
PEUGEOT 16 107 046 80Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
PEUGEOT 1610704680Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)

ModelModel YearkWHPCCType
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

Construction Year from 201408

Fitting Position Front Axle		2014-03 - 2021-06811101199Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

Fitting Position Front Axle		2014-03 - 2021-06961311199Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

Fitting Position Front Axle		2014-03 - 2021-06851151587Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

Fitting Position Front Axle		2014-03 - 2021-06921251598Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

Fitting Position Front Axle		2014-03 - 2021-061101501598Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

Fitting Position Front Axle		2014-03 - 2021-061151561598Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

Fitting Position Front Axle		2018-04 - 2021-06751021499Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

Fitting Position Front Axle		2017-06 - 2021-06961311499Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

Fitting Position Front Axle		2014-03 - 2021-0668921560Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

Fitting Position Front Axle		2014-04 - 2021-0673991560Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

Fitting Position Front Axle		2014-03 - 2021-06851151560Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

Fitting Position Front Axle		2014-03 - 2021-06881201560Estate
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

Fitting Position Front Axle		2013-09 - 2021-0660821199Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

Fitting Position Front Axle		2013-11 - 2021-06811101199Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

Fitting Position Front Axle		2013-11 - 2021-06961311199Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

Fitting Position Front Axle		2013-09 - 2021-06921251598Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

Fitting Position Front Axle		2014-03 - 2021-061101501598Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

Fitting Position Front Axle		2013-09 - 2021-061151561598Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

Fitting Position Front Axle		2014-06 - 2021-061201631598Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

Fitting Position Front Axle		2018-05 - 2021-06751021499Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

Fitting Position Front Axle		2017-06 - 2021-06961311499Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

Fitting Position Front Axle		2013-09 - 2021-0668921560Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

Fitting Position Front Axle		2014-04 - 2021-0673991560Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

Fitting Position Front Axle		2013-09 - 2021-06851151560Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

Fitting Position Front Axle		2013-11 - 2021-06881201560Hatchback
PEUGEOT 308 SW II (LC_)

Fitting Position Front Axle		2017-06 - 2021-06961311499Estate Van
PEUGEOT 308 Hatchback Van (LB_)

Fitting Position Front Axle		2017-06 - 2021-06961311499Hatchback Van
24.0122-0291.1

Datenblatt

Artikelstatus
Bestellbar
Automarke
Peugeot
Handelsnummer
422291
Herkunftsland
Italien
Zusätzliche Informationen
mit Schrauben/Schrauben
Höhe
48,0
Außendurchmesser [mm]
266,0
Bremsscheibendicke [mm]
22,0
Bremsscheibentyp
Entlüftet
Verarbeitung
Legierte/Hochkohlenstoff-Legierungen
Oberfläche
Coated
Anzahl der Schraublöcher
5
Bolzenlochdurchmesser [mm]
108,0
Zentrierungsdurchmesser [mm]
71,1
Innendurchmesser [mm]
137,0
Bohrdurchmesser [mm]
13,0
Mindestdicke [mm]
20,0

Spezifische Referenzen

ean13
4006633417433
Hersteller-Teilenummer (MPN)
2401220291102
