ATE Disco de freno original de 2 piezas (24012202911) para Peugeot
search
  • ATE Disco de freno original de 2 piezas (24012202911) para Peugeot
  • ATE Disco de freno original de 2 piezas (24012202911) para Peugeot
  • ATE Disco de freno original de 2 piezas (24012202911) para Peugeot

ATE Disco de freno original de 2 piezas (24012202911) para Peugeot

98,01 € (impuestos inc.)

81,00 € fiscales excl.

Número de parte:

ATE 24.0122-0291.1
(240122-02911)

  • Diámetro exterior [mm]: 266,0
  • Diámetro interior [mm]: 137,0
  • Grosor del disco de freno [mm]: 22,0
  • Número de agujeros de perno: 5
  • 2 piezas de disco de freno
  • Número de intercambio: 422291
Información logística:
71,1Haz clic aquí para obtener información detallada.
  • Código Ean: 4006633417433
  • Peso: 11.01kg
Cantidad

Specification of ATE 24.0122-0291.1 / 240122-02911 / 24012202911:

OE NumberReference info
PEUGEOT 16 107 046 80Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
PEUGEOT 1610704680Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)

ModelModel YearkWHPCCType
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

Construction Year from 201408

Fitting Position Front Axle		2014-03 - 2021-06811101199Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

Fitting Position Front Axle		2014-03 - 2021-06961311199Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

Fitting Position Front Axle		2014-03 - 2021-06851151587Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

Fitting Position Front Axle		2014-03 - 2021-06921251598Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

Fitting Position Front Axle		2014-03 - 2021-061101501598Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

Fitting Position Front Axle		2014-03 - 2021-061151561598Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

Fitting Position Front Axle		2018-04 - 2021-06751021499Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

Fitting Position Front Axle		2017-06 - 2021-06961311499Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

Fitting Position Front Axle		2014-03 - 2021-0668921560Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

Fitting Position Front Axle		2014-04 - 2021-0673991560Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

Fitting Position Front Axle		2014-03 - 2021-06851151560Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

Fitting Position Front Axle		2014-03 - 2021-06881201560Estate
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

Fitting Position Front Axle		2013-09 - 2021-0660821199Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

Fitting Position Front Axle		2013-11 - 2021-06811101199Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

Fitting Position Front Axle		2013-11 - 2021-06961311199Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

Fitting Position Front Axle		2013-09 - 2021-06921251598Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

Fitting Position Front Axle		2014-03 - 2021-061101501598Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

Fitting Position Front Axle		2013-09 - 2021-061151561598Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

Fitting Position Front Axle		2014-06 - 2021-061201631598Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

Fitting Position Front Axle		2018-05 - 2021-06751021499Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

Fitting Position Front Axle		2017-06 - 2021-06961311499Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

Fitting Position Front Axle		2013-09 - 2021-0668921560Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

Fitting Position Front Axle		2014-04 - 2021-0673991560Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

Fitting Position Front Axle		2013-09 - 2021-06851151560Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

Fitting Position Front Axle		2013-11 - 2021-06881201560Hatchback
PEUGEOT 308 SW II (LC_)

Fitting Position Front Axle		2017-06 - 2021-06961311499Estate Van
PEUGEOT 308 Hatchback Van (LB_)

Fitting Position Front Axle		2017-06 - 2021-06961311499Hatchback Van

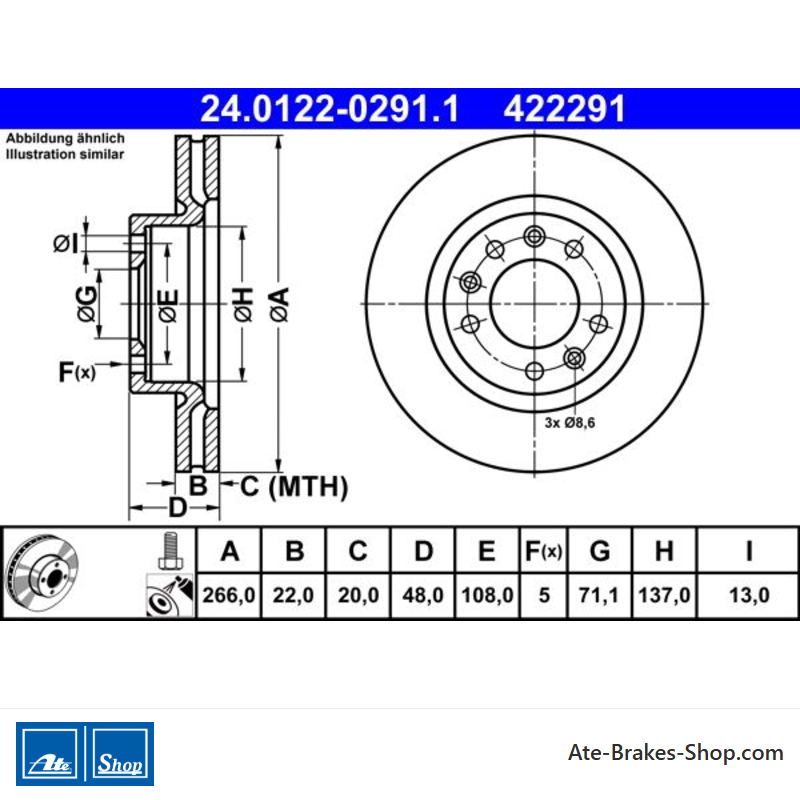

24.0122-0291.1

Hoja técnica

Estado del artículo
Ordenable
Marca de automóviles
Peugeot
Número de Comercio
422291
País de origen
Italia
Información adicional
con tornillos/tornillos
Altura
48,0
Diámetro exterior [mm]
266,0
Grosor del disco de freno [mm]
22,0
Tipo de disco de freno
Ventilado
Procesamiento
Aleados/de alto contenido de carbono
Superficie
Revestido
Número de agujeros para los tornillos
5
Diámetro del agujero del perno [mm]
108,0
Diámetro de centrado [mm]
71,1
Diámetro interior [mm]
137,0
Diámetro del diámetro del diámetro [mm]
13,0
Espesor mínimo [mm]
20,0

Referencias específicas

ean13
4006633417433
MPN
2401220291102
