ATE Original-2-teilige Bremsscheibe (24012203181) für Mazda
90,75 €
(inkl. MwSt.)
75,00 € Steuerexzl.
Teilenummer:
ATE 24.0122-0318.1
(240122-03181)
- Außendurchmesser [mm]: 258,0
- Innendurchmesser [mm]: 125,0
- Bremsscheibendicke [mm]: 22,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 422318
Logistische Informationen:
- Ean-Code: 4006633470032
- Gewicht: 10.58kg
Specification of ATE 24.0122-0318.1 / 240122-03181 / 24012203181:
| OE Number | Reference info |
| MAZDA D09T-33-251 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA DA7R-33-251 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| MAZDA 2 Hatchback (DL, DJ) Left-/right-hand drive vehicles for left-hand drive vehicles Fitting Position Front Axle | 2014-08 - | 55 | 75 | 1496 | Hatchback |
| MAZDA 2 Hatchback (DL, DJ) Fitting Position Front Axle | 2019-08 - | 55 | 75 | 1496 | Hatchback |
| MAZDA 2 Hatchback (DL, DJ) Left-/right-hand drive vehicles for left-hand drive vehicles Fitting Position Front Axle | 2014-08 - | 66 | 90 | 1496 | Hatchback |
| MAZDA 2 Hatchback (DL, DJ) Fitting Position Front Axle | 2019-08 - | 66 | 90 | 1496 | Hatchback |
| MAZDA 2 Hatchback (DL, DJ) Left-/right-hand drive vehicles for left-hand drive vehicles Fitting Position Front Axle | 2014-08 - | 85 | 115 | 1496 | Hatchback |
| MAZDA 2 Hatchback (DL, DJ) Fitting Position Front Axle | 2021-10 - | 85 | 116 | 1496 | Hatchback |
| MAZDA 2 Hatchback (DL, DJ) Fitting Position Front Axle | 2014-08 - | 77 | 105 | 1499 | Hatchback |
| MAZDA MX-5 RF Targa (ND) Fitting Position Front Axle | 2017-08 - 2018-05 | 96 | 131 | 1496 | Targa |
| MAZDA MX-5 RF Targa (ND) Fitting Position Front Axle | 2018-05 - | 97 | 132 | 1496 | Targa |
| MAZDA MX-5 IV (ND__) Fitting Position Front Axle | 2015-06 - | 96 | 131 | 1496 | Convertible |
| MAZDA MX-5 IV (ND__) Fitting Position Front Axle | 2018-05 - | 97 | 132 | 1496 | Convertible |
24.0122-0318.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Mazda
- Handelsnummer
- 422318
- Herkunftsland
- Tschechien

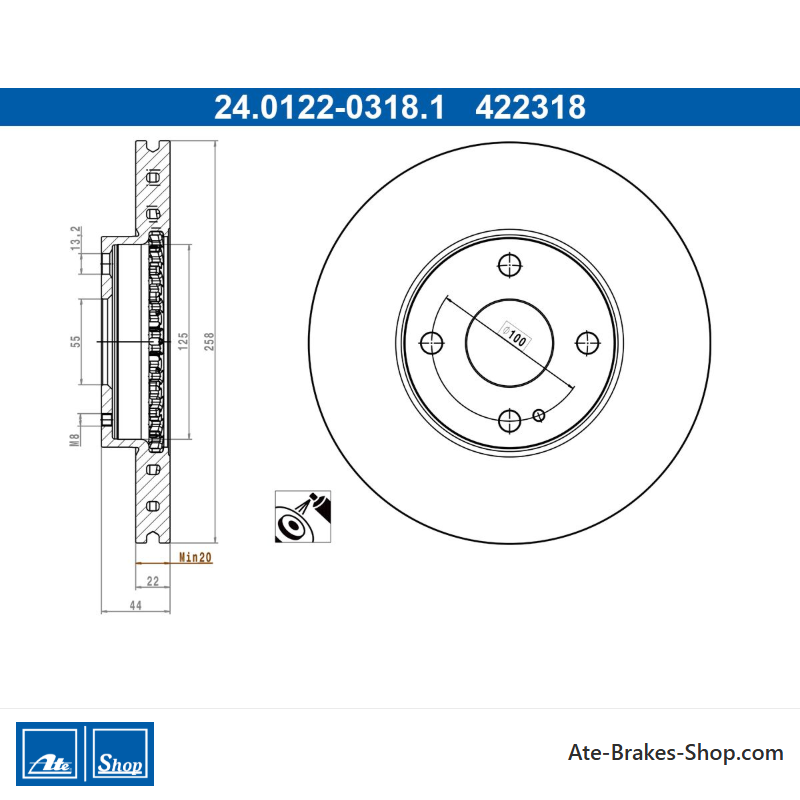

- Höhe
- 44,0
- Außendurchmesser [mm]
- 258,0
- Bremsscheibendicke [mm]
- 22,0
- Bremsscheibentyp
- Entlüftet
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 100,0
- Zentrierungsdurchmesser [mm]
- 55,0
- Innendurchmesser [mm]
- 125,0
- Bohrdurchmesser [mm]
- 13,2
- Mindestdicke [mm]
- 20,0
Spezifische Referenzen
- ean13
- 4006633470032
- Hersteller-Teilenummer (MPN)
- 2401220318102
