ATE Originale zweiteilige Bremsscheibe (24012502201) für Volkswagen (VW)
127,05 €
(inkl. MwSt.)
105,00 € Steuerexzl.
Teilenummer:
ATE 24.0125-0220.1
(240125-02201)
- Außendurchmesser [mm]: 288,0
- Innendurchmesser [mm]: 136,0
- Bremsscheibendicke [mm]: 25,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 425220
Logistische Informationen:
- Ean-Code: 4006633479820
- Gewicht: 14.78kg
Specification of ATE 24.0125-0220.1 / 240125-02201 / 24012502201:
| OE Number | Reference info |
| VAG 1S0 615 301 K | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 1S0615301K | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| VW UP! (121, 122, BL1, BL2, BL3, 123) Fitting Position Front Axle for PR number 1ZE Construction Year from 201605 | 2013-07 - 2019-08 | 60 | 82 | CC | Hatchback |
| VW UP! (121, 122, BL1, BL2, BL3, 123) Fitting Position Front Axle for PR number 1ZE | 2019-08 - | 61 | 83 | CC | Hatchback |
| VW UP! (121, 122, BL1, BL2, BL3, 123) Fitting Position Front Axle for PR number 1ZE Construction Year from 201605 | 2011-08 - 2020-08 | 44 | 60 | 999 | Hatchback |
| VW UP! (121, 122, BL1, BL2, BL3, 123) Fitting Position Front Axle for PR number 1ZE | 2020-08 - 2023-11 | 48 | 65 | 999 | Hatchback |
| VW UP! (121, 122, BL1, BL2, BL3, 123) Fitting Position Front Axle for PR number 1ZE Construction Year from 201605 | 2012-11 - 2023-11 | 50 | 68 | 999 | Hatchback |
| VW UP! (121, 122, BL1, BL2, BL3, 123) Fitting Position Front Axle for PR number 1ZE Construction Year from 201605 | 2011-08 - 2019-11 | 55 | 75 | 999 | Hatchback |
| VW UP! (121, 122, BL1, BL2, BL3, 123) Fitting Position Front Axle for PR number 1ZE | 2016-05 - 2019-08 | 66 | 90 | 999 | Hatchback |
| VW UP! (121, 122, BL1, BL2, BL3, 123) Fitting Position Front Axle for PR number 1ZE | 2017-11 - 2023-11 | 85 | 115 | 999 | Hatchback |
| VW LOAD UP! (121, 122, BL1, BL2) for PR number 1ZE Fitting Position Front Axle Construction Year from 201605 | 2012-11 - 2019-11 | 44 | 60 | 999 | Hatchback Van |
| VW LOAD UP! (121, 122, BL1, BL2) for PR number 1ZE Fitting Position Front Axle Construction Year from 201605 | 2012-11 - 2020-08 | 50 | 68 | 999 | Hatchback Van |
| VW LOAD UP! (121, 122, BL1, BL2) for PR number 1ZE Fitting Position Front Axle Construction Year from 201605 | 2014-12 - 2019-08 | 60 | 82 | CC | Hatchback Van |

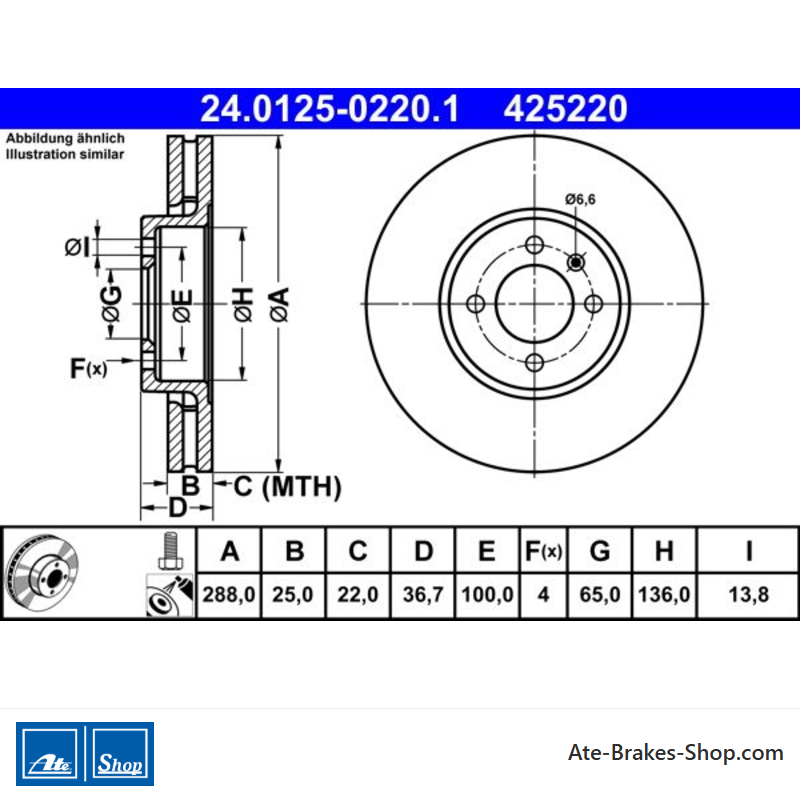

24.0125-0220.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Volkswagen (VW)
- Handelsnummer
- 425220
- Herkunftsland
- Deutschland
- Zusätzliche Informationen
- mit Schrauben/Schrauben
- Höhe
- 36,7
- Außendurchmesser [mm]
- 288,0
- Bremsscheibendicke [mm]
- 25,0
- Bremsscheibentyp
- Entlüftet
- Verarbeitung
- Kohlenstoffhoch
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 100,0
- Zentrierungsdurchmesser [mm]
- 65,0
- Innendurchmesser [mm]
- 136,0
- Bohrdurchmesser [mm]
- 13,8
- Mindestdicke [mm]
- 22,0
Spezifische Referenzen
- ean13
- 4006633479820
- Hersteller-Teilenummer (MPN)
- 2401250220102
ATE 24.0125-0220.1
(240125-02201)
- Außendurchmesser [mm]: 288,0
- Innendurchmesser [mm]: 136,0
- Bremsscheibendicke [mm]: 25,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 425220
