ATE Originele 2-delige remschijf (24012502201) voor Volkswagen (VW)
€ 127,05
(incl. btw)
€ 105,00 belastingexcl.
Onderdeelnummer:
ATE 24.0125-0220.1
(240125-02201)
- Buitendiameter [mm]: 288,0
- Binnendiameter [mm]: 136,0
- Remschijfdikte [mm]: 25,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 425220
Logistieke informatie:
- Ean Code: 4006633479820
- Gewicht: 14.78kg
Specification of ATE 24.0125-0220.1 / 240125-02201 / 24012502201:
| OE Number | Reference info |
| VAG 1S0 615 301 K | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 1S0615301K | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| VW UP! (121, 122, BL1, BL2, BL3, 123) Fitting Position Front Axle for PR number 1ZE Construction Year from 201605 | 2013-07 - 2019-08 | 60 | 82 | CC | Hatchback |
| VW UP! (121, 122, BL1, BL2, BL3, 123) Fitting Position Front Axle for PR number 1ZE | 2019-08 - | 61 | 83 | CC | Hatchback |
| VW UP! (121, 122, BL1, BL2, BL3, 123) Fitting Position Front Axle for PR number 1ZE Construction Year from 201605 | 2011-08 - 2020-08 | 44 | 60 | 999 | Hatchback |
| VW UP! (121, 122, BL1, BL2, BL3, 123) Fitting Position Front Axle for PR number 1ZE | 2020-08 - 2023-11 | 48 | 65 | 999 | Hatchback |
| VW UP! (121, 122, BL1, BL2, BL3, 123) Fitting Position Front Axle for PR number 1ZE Construction Year from 201605 | 2012-11 - 2023-11 | 50 | 68 | 999 | Hatchback |
| VW UP! (121, 122, BL1, BL2, BL3, 123) Fitting Position Front Axle for PR number 1ZE Construction Year from 201605 | 2011-08 - 2019-11 | 55 | 75 | 999 | Hatchback |
| VW UP! (121, 122, BL1, BL2, BL3, 123) Fitting Position Front Axle for PR number 1ZE | 2016-05 - 2019-08 | 66 | 90 | 999 | Hatchback |
| VW UP! (121, 122, BL1, BL2, BL3, 123) Fitting Position Front Axle for PR number 1ZE | 2017-11 - 2023-11 | 85 | 115 | 999 | Hatchback |
| VW LOAD UP! (121, 122, BL1, BL2) for PR number 1ZE Fitting Position Front Axle Construction Year from 201605 | 2012-11 - 2019-11 | 44 | 60 | 999 | Hatchback Van |
| VW LOAD UP! (121, 122, BL1, BL2) for PR number 1ZE Fitting Position Front Axle Construction Year from 201605 | 2012-11 - 2020-08 | 50 | 68 | 999 | Hatchback Van |
| VW LOAD UP! (121, 122, BL1, BL2) for PR number 1ZE Fitting Position Front Axle Construction Year from 201605 | 2014-12 - 2019-08 | 60 | 82 | CC | Hatchback Van |

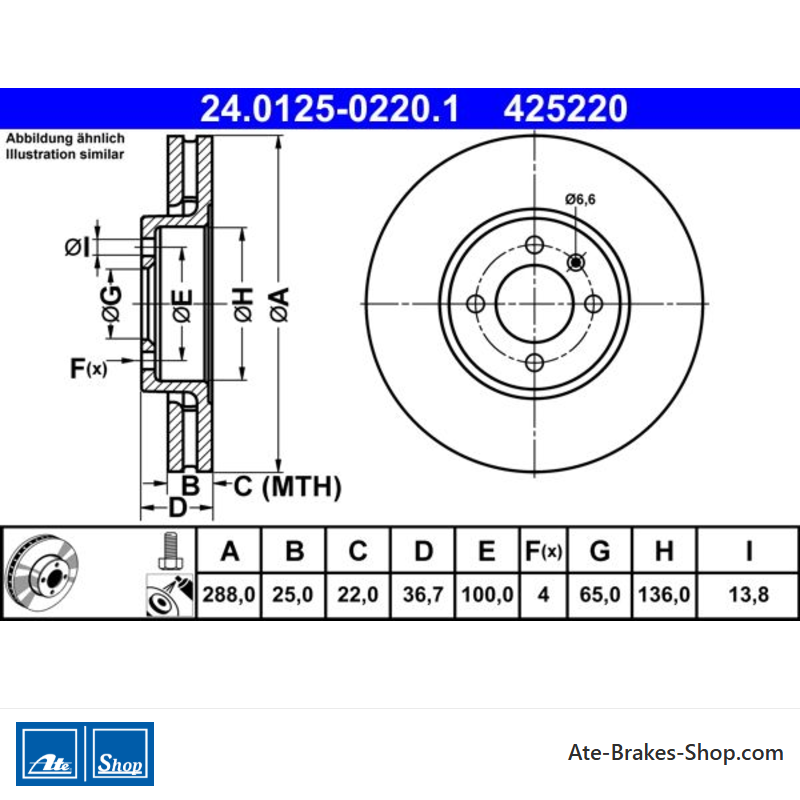

24.0125-0220.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Volkswagen (VW)
- Handelsnummer
- 425220
- Land van Herkomst
- Duitsland
- Aanvullende informatie
- met bouten/schroeven
- Hoogte
- 36,7
- Buitendiameter [mm]
- 288,0
- Remschijfdikte [mm]
- 25,0
- Type remschijf
- Geventileerd
- Verwerking
- Hoogkoolstof
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 100,0
- Centreringsdiameter [mm]
- 65,0
- Binnendiameter [mm]
- 136,0
- Bordiameter [mm]
- 13,8
- Minimale dikte [mm]
- 22,0
Specifieke referenties
- ean13
- 4006633479820
- MPN
- 2401250220102
ATE 24.0125-0220.1
(240125-02201)
- Buitendiameter [mm]: 288,0
- Binnendiameter [mm]: 136,0
- Remschijfdikte [mm]: 25,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 425220
