ATE Original 2 Teile Bremsscheibe (24012601921) für Fiat
137,94 €
(inkl. MwSt.)
114,00 € Steuerexzl.
Teilenummer:
ATE 24.0126-0192.1
(240126-01921)
- Außendurchmesser [mm]: 281,0
- Innendurchmesser [mm]: 127,0
- Bremsscheibendicke [mm]: 26,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 426192
Logistische Informationen:
- Ean-Code: 4006633475877
- Gewicht: 13.92kg
Specification of ATE 24.0126-0192.1 / 240126-01921 / 24012601921:
| OE Number | Reference info |
| FIAT 52017292 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 52017293 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 52067394 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 52067393 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FIAT TIPO Saloon (356_, 357_) Fitting Position Front Axle | 2016-05 - 2020-10 | 88 | 120 | 1368 | Saloon |
| FIAT TIPO Saloon (356_, 357_) Fitting Position Front Axle Equipment Code 4TA Observe dimensions | 2022-03 - | 96 | 131 | 1469 | Saloon |
| FIAT TIPO Saloon (356_, 357_) Fitting Position Front Axle Equipment Code 4TA Observe dimensions | 2015-10 - 2020-10 | 81 | 110 | 1598 | Saloon |
| FIAT TIPO Saloon (356_, 357_) Fitting Position Front Axle Equipment Code 4TA Observe dimensions | 2016-09 - 2020-10 | 84 | 114 | 1598 | Saloon |
| FIAT TIPO Saloon (356_, 357_) Fitting Position Front Axle Equipment Code 4TA Observe dimensions | 2015-10 - 2020-10 | 88 | 120 | 1598 | Saloon |
| FIAT TIPO Saloon (356_, 357_) Fitting Position Front Axle Equipment Code 4TA Observe dimensions | 2020-11 - | 96 | 131 | 1598 | Saloon |
| FIAT TIPO Hatchback (356_, 357_) Fitting Position Front Axle | 2016-03 - 2020-10 | 88 | 120 | 1368 | Hatchback |
| FIAT TIPO Hatchback (356_, 357_) Fitting Position Front Axle | 2016-05 - 2020-10 | 88 | 120 | 1368 | Hatchback |
| FIAT TIPO Hatchback (356_, 357_) Fitting Position Front Axle Equipment Code 4TA Observe dimensions | 2022-03 - | 96 | 131 | 1469 | Hatchback |
| FIAT TIPO Hatchback (356_, 357_) Fitting Position Front Axle Equipment Code 4TA Observe dimensions | 2016-07 - 2020-10 | 81 | 110 | 1598 | Hatchback |
| FIAT TIPO Hatchback (356_, 357_) Fitting Position Front Axle Equipment Code 4TA Observe dimensions | 2016-09 - 2020-10 | 84 | 114 | 1598 | Hatchback |
| FIAT TIPO Hatchback (356_, 357_) Fitting Position Front Axle Equipment Code 4TA Observe dimensions | 2016-03 - 2020-10 | 88 | 120 | 1598 | Hatchback |
| FIAT TIPO Hatchback (356_, 357_) Fitting Position Front Axle Equipment Code 4TA Observe dimensions | 2020-11 - | 96 | 131 | 1598 | Hatchback |
| FIAT TIPO Estate (356_, 357_) Fitting Position Front Axle Equipment Code 4TA Observe dimensions | 2016-03 - 2020-10 | 88 | 120 | 1368 | Estate |
| FIAT TIPO Estate (356_, 357_) Fitting Position Front Axle | 2016-05 - 2020-10 | 88 | 120 | 1368 | Estate |
| FIAT TIPO Estate (356_, 357_) Fitting Position Front Axle Equipment Code 4TA Observe dimensions | 2022-03 - | 96 | 131 | 1469 | Estate |
| FIAT TIPO Estate (356_, 357_) Fitting Position Front Axle Equipment Code 4TA Observe dimensions | 2016-09 - 2020-10 | 84 | 114 | 1598 | Estate |
| FIAT TIPO Estate (356_, 357_) Fitting Position Front Axle Equipment Code 4TA Observe dimensions | 2016-03 - 2020-10 | 88 | 120 | 1598 | Estate |
| FIAT TIPO Estate (356_, 357_) Fitting Position Front Axle Equipment Code 4TA Observe dimensions | 2020-11 - | 96 | 131 | 1598 | Estate |

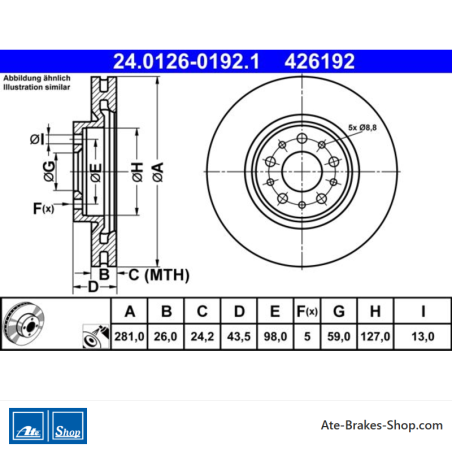

24.0126-0192.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Fiat
- Handelsnummer
- 426192
- Herkunftsland
- QU
- Höhe
- 43,5
- Außendurchmesser [mm]
- 281,0
- Bremsscheibendicke [mm]
- 26,0
- Bremsscheibentyp
- Entlüftet
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 98,0
- Zentrierungsdurchmesser [mm]
- 59,0
- Innendurchmesser [mm]
- 127,0
- Bohrdurchmesser [mm]
- 13,0
- Mindestdicke [mm]
- 24,2
Spezifische Referenzen
- ean13
- 4006633475877
- Hersteller-Teilenummer (MPN)
- 2401260192102
ATE 24.0126-0192.1
(240126-01921)
- Außendurchmesser [mm]: 281,0
- Innendurchmesser [mm]: 127,0
- Bremsscheibendicke [mm]: 26,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 426192
