ATE Originele 2-delige remschijf (24012601921) voor Fiat
€ 137,94
(incl. btw)
€ 114,00 belastingexcl.
Onderdeelnummer:
ATE 24.0126-0192.1
(240126-01921)
- Buitendiameter [mm]: 281,0
- Binnendiameter [mm]: 127,0
- Remschijfdikte [mm]: 26,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 426192
Logistieke informatie:
- Ean Code: 4006633475877
- Gewicht: 13.92kg
Specification of ATE 24.0126-0192.1 / 240126-01921 / 24012601921:
| OE Number | Reference info |
| FIAT 52017292 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 52017293 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 52067394 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 52067393 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FIAT TIPO Saloon (356_, 357_) Fitting Position Front Axle | 2016-05 - 2020-10 | 88 | 120 | 1368 | Saloon |
| FIAT TIPO Saloon (356_, 357_) Fitting Position Front Axle Equipment Code 4TA Observe dimensions | 2022-03 - | 96 | 131 | 1469 | Saloon |
| FIAT TIPO Saloon (356_, 357_) Fitting Position Front Axle Equipment Code 4TA Observe dimensions | 2015-10 - 2020-10 | 81 | 110 | 1598 | Saloon |
| FIAT TIPO Saloon (356_, 357_) Fitting Position Front Axle Equipment Code 4TA Observe dimensions | 2016-09 - 2020-10 | 84 | 114 | 1598 | Saloon |
| FIAT TIPO Saloon (356_, 357_) Fitting Position Front Axle Equipment Code 4TA Observe dimensions | 2015-10 - 2020-10 | 88 | 120 | 1598 | Saloon |
| FIAT TIPO Saloon (356_, 357_) Fitting Position Front Axle Equipment Code 4TA Observe dimensions | 2020-11 - | 96 | 131 | 1598 | Saloon |
| FIAT TIPO Hatchback (356_, 357_) Fitting Position Front Axle | 2016-03 - 2020-10 | 88 | 120 | 1368 | Hatchback |
| FIAT TIPO Hatchback (356_, 357_) Fitting Position Front Axle | 2016-05 - 2020-10 | 88 | 120 | 1368 | Hatchback |
| FIAT TIPO Hatchback (356_, 357_) Fitting Position Front Axle Equipment Code 4TA Observe dimensions | 2022-03 - | 96 | 131 | 1469 | Hatchback |
| FIAT TIPO Hatchback (356_, 357_) Fitting Position Front Axle Equipment Code 4TA Observe dimensions | 2016-07 - 2020-10 | 81 | 110 | 1598 | Hatchback |
| FIAT TIPO Hatchback (356_, 357_) Fitting Position Front Axle Equipment Code 4TA Observe dimensions | 2016-09 - 2020-10 | 84 | 114 | 1598 | Hatchback |
| FIAT TIPO Hatchback (356_, 357_) Fitting Position Front Axle Equipment Code 4TA Observe dimensions | 2016-03 - 2020-10 | 88 | 120 | 1598 | Hatchback |
| FIAT TIPO Hatchback (356_, 357_) Fitting Position Front Axle Equipment Code 4TA Observe dimensions | 2020-11 - | 96 | 131 | 1598 | Hatchback |
| FIAT TIPO Estate (356_, 357_) Fitting Position Front Axle Equipment Code 4TA Observe dimensions | 2016-03 - 2020-10 | 88 | 120 | 1368 | Estate |
| FIAT TIPO Estate (356_, 357_) Fitting Position Front Axle | 2016-05 - 2020-10 | 88 | 120 | 1368 | Estate |
| FIAT TIPO Estate (356_, 357_) Fitting Position Front Axle Equipment Code 4TA Observe dimensions | 2022-03 - | 96 | 131 | 1469 | Estate |
| FIAT TIPO Estate (356_, 357_) Fitting Position Front Axle Equipment Code 4TA Observe dimensions | 2016-09 - 2020-10 | 84 | 114 | 1598 | Estate |
| FIAT TIPO Estate (356_, 357_) Fitting Position Front Axle Equipment Code 4TA Observe dimensions | 2016-03 - 2020-10 | 88 | 120 | 1598 | Estate |
| FIAT TIPO Estate (356_, 357_) Fitting Position Front Axle Equipment Code 4TA Observe dimensions | 2020-11 - | 96 | 131 | 1598 | Estate |
24.0126-0192.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Fiat
- Handelsnummer
- 426192
- Land van Herkomst
- QU

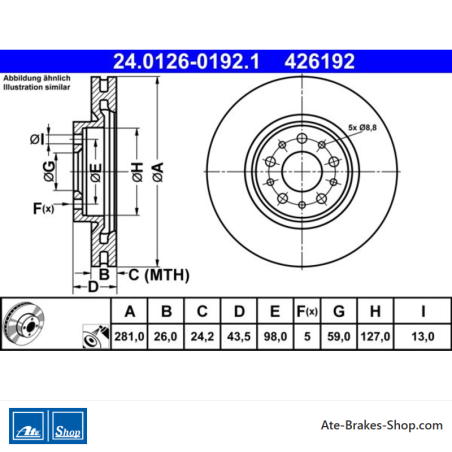

- Hoogte
- 43,5
- Buitendiameter [mm]
- 281,0
- Remschijfdikte [mm]
- 26,0
- Type remschijf
- Geventileerd
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 98,0
- Centreringsdiameter [mm]
- 59,0
- Binnendiameter [mm]
- 127,0
- Bordiameter [mm]
- 13,0
- Minimale dikte [mm]
- 24,2
Specifieke referenties
- ean13
- 4006633475877
- MPN
- 2401260192102
ATE 24.0126-0192.1
(240126-01921)
- Buitendiameter [mm]: 281,0
- Binnendiameter [mm]: 127,0
- Remschijfdikte [mm]: 26,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 426192
