ATE Originale Bremsscheibe (24012803091) für Fiat, Mitsubishi
134,31 €
(inkl. MwSt.)
111,00 € Steuerexzl.
Teilenummer:
ATE 24.0128-0309.1
(240128-03091)
- Außendurchmesser [mm]: 294,0
- Innendurchmesser [mm]: 171,0
- Bremsscheibendicke [mm]: 28,2
- Anzahl der Bolzenlöcher: 6
- Handelsnummer: 428309
Logistische Informationen:
- Ean-Code: 4006633461498
- Gewicht: 8.46kg
Specification of ATE 24.0128-0309.1 / 240128-03091 / 24012803091:
| OE Number | Reference info |
| FIAT 6000611049 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MITSUBISHI 4615A203 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FIAT FULLBACK Pickup (502_, 503_) Suspension for vehicles with height-adjustable suspension Fitting Position Front Axle | 2016-04 - | 113 | 154 | 2442 | Pickup |
| FIAT FULLBACK Pickup (502_, 503_) Suspension for vehicles with height-adjustable suspension Fitting Position Front Axle | 2016-04 - | 113 | 154 | 2442 | Pickup |
| FIAT FULLBACK Pickup (502_, 503_) Suspension for vehicles with height-adjustable suspension Fitting Position Front Axle | 2016-04 - | 133 | 181 | 2442 | Pickup |
| MITSUBISHI L200 (KJ_, KK_, KL_) Fitting Position Front Axle Equipment Code C05 | 2019-07 - | 110 | 150 | 2268 | Pickup |
| MITSUBISHI L200 (KJ_, KK_, KL_) Fitting Position Front Axle Equipment Code C05 | 2019-07 - | 110 | 150 | 2268 | Pickup |
| MITSUBISHI L200 (KJ_, KK_, KL_) Equipment Code C05 Fitting Position Front Axle | 2015-09 - | 113 | 154 | 2442 | Pickup |
| MITSUBISHI L200 (KJ_, KK_, KL_) Equipment Code C05 Fitting Position Front Axle | 2015-09 - | 113 | 154 | 2442 | Pickup |
| MITSUBISHI L200 (KJ_, KK_, KL_) Construction Year from 201509 Equipment Code C05 Fitting Position Front Axle | 2014-11 - | 133 | 181 | 2442 | Pickup |
| MITSUBISHI L200 (KJ_, KK_, KL_) Equipment Code C05 Fitting Position Front Axle | 2014-11 - | 100 | 136 | 2477 | Pickup |

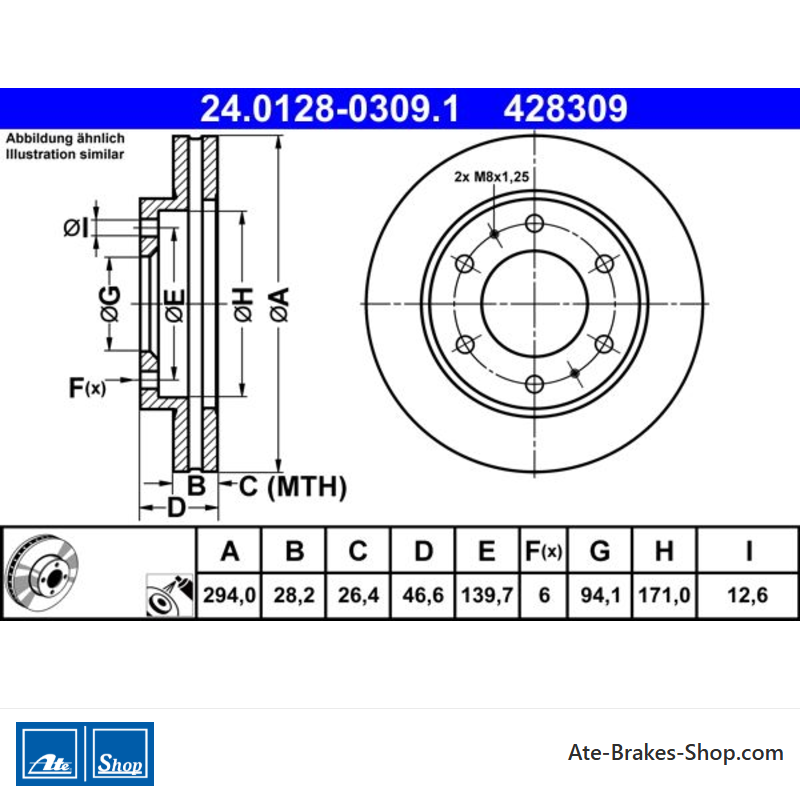

24.0128-0309.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Fiat
Mitsubishi - Handelsnummer
- 428309
- Herkunftsland
- Deutschland
- Höhe
- 46,6
- Außendurchmesser [mm]
- 294,0
- Bremsscheibendicke [mm]
- 28,2
- Bremsscheibentyp
- Entlüftet
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 6
- Bolzenlochdurchmesser [mm]
- 139,7
- Zentrierungsdurchmesser [mm]
- 94,1
- Innendurchmesser [mm]
- 171,0
- Bohrdurchmesser [mm]
- 12,6
- Mindestdicke [mm]
- 26,4
Spezifische Referenzen
- ean13
- 4006633461498
- Hersteller-Teilenummer (MPN)
- 2401280309102
ATE 24.0128-0309.1
(240128-03091)
- Außendurchmesser [mm]: 294,0
- Innendurchmesser [mm]: 171,0
- Bremsscheibendicke [mm]: 28,2
- Anzahl der Bolzenlöcher: 6
- Handelsnummer: 428309
