ATE Originele remschijf (24012803091) voor Fiat, Mitsubishi
€ 134,31
(incl. btw)
€ 111,00 belastingexcl.
Onderdeelnummer:
ATE 24.0128-0309.1
(240128-03091)
- Buitendiameter [mm]: 294,0
- Binnendiameter [mm]: 171,0
- Remschijfdikte [mm]: 28,2
- Aantal bolt holes: 6
- Handelsnummer: 428309
Logistieke informatie:
- Ean Code: 4006633461498
- Gewicht: 8.46kg
Specification of ATE 24.0128-0309.1 / 240128-03091 / 24012803091:
| OE Number | Reference info |
| FIAT 6000611049 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MITSUBISHI 4615A203 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FIAT FULLBACK Pickup (502_, 503_) Suspension for vehicles with height-adjustable suspension Fitting Position Front Axle | 2016-04 - | 113 | 154 | 2442 | Pickup |
| FIAT FULLBACK Pickup (502_, 503_) Suspension for vehicles with height-adjustable suspension Fitting Position Front Axle | 2016-04 - | 113 | 154 | 2442 | Pickup |
| FIAT FULLBACK Pickup (502_, 503_) Suspension for vehicles with height-adjustable suspension Fitting Position Front Axle | 2016-04 - | 133 | 181 | 2442 | Pickup |
| MITSUBISHI L200 (KJ_, KK_, KL_) Fitting Position Front Axle Equipment Code C05 | 2019-07 - | 110 | 150 | 2268 | Pickup |
| MITSUBISHI L200 (KJ_, KK_, KL_) Fitting Position Front Axle Equipment Code C05 | 2019-07 - | 110 | 150 | 2268 | Pickup |
| MITSUBISHI L200 (KJ_, KK_, KL_) Equipment Code C05 Fitting Position Front Axle | 2015-09 - | 113 | 154 | 2442 | Pickup |
| MITSUBISHI L200 (KJ_, KK_, KL_) Equipment Code C05 Fitting Position Front Axle | 2015-09 - | 113 | 154 | 2442 | Pickup |
| MITSUBISHI L200 (KJ_, KK_, KL_) Construction Year from 201509 Equipment Code C05 Fitting Position Front Axle | 2014-11 - | 133 | 181 | 2442 | Pickup |
| MITSUBISHI L200 (KJ_, KK_, KL_) Equipment Code C05 Fitting Position Front Axle | 2014-11 - | 100 | 136 | 2477 | Pickup |

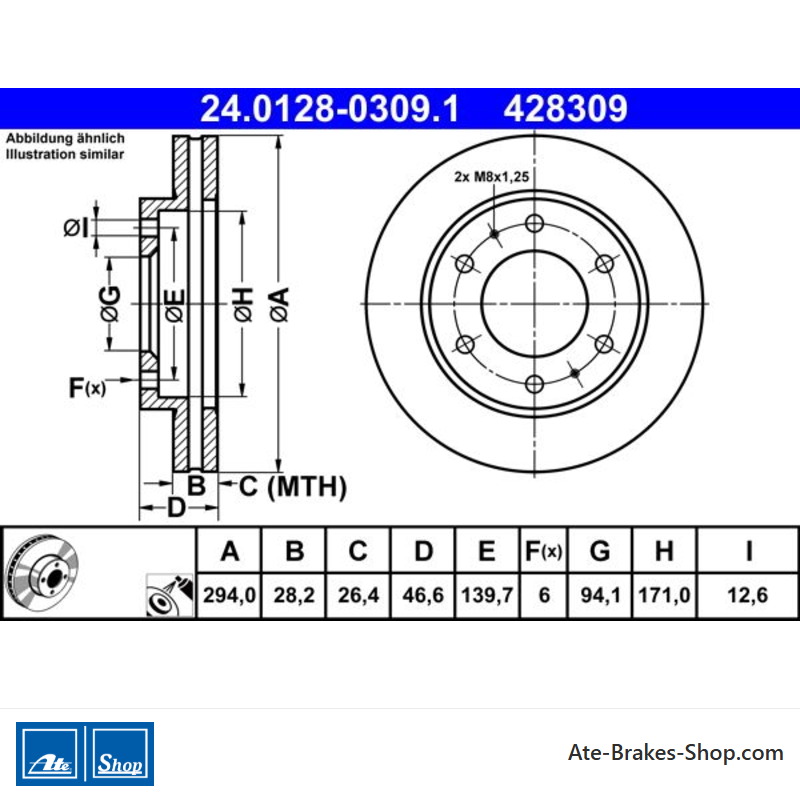

24.0128-0309.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Fiat
Mitsubishi - Handelsnummer
- 428309
- Land van Herkomst
- Duitsland
- Hoogte
- 46,6
- Buitendiameter [mm]
- 294,0
- Remschijfdikte [mm]
- 28,2
- Type remschijf
- Geventileerd
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 6
- Diameter van het schroefgat [mm]
- 139,7
- Centreringsdiameter [mm]
- 94,1
- Binnendiameter [mm]
- 171,0
- Bordiameter [mm]
- 12,6
- Minimale dikte [mm]
- 26,4
Specifieke referenties
- ean13
- 4006633461498
- MPN
- 2401280309102
ATE 24.0128-0309.1
(240128-03091)
- Buitendiameter [mm]: 294,0
- Binnendiameter [mm]: 171,0
- Remschijfdikte [mm]: 28,2
- Aantal bolt holes: 6
- Handelsnummer: 428309
