ATE Original 2 Pieces Brake Drum (24022000361) for Chevrolet, Daewoo
€90.75
(tax incl.)
€75.00 tax excl.
Part-number:
ATE 24.0220-0036.1
(240220-00361)
- Outer diameter [mm]: 228,0
- Inner diameter [mm]: 200,0
- Support plate diameter [mm]: 50,3
- Number of Bolt Holes: 4
- 2 Pieces of Brake Drum
- Trade Number: 480149
- Ean Code: 4006633082105
- Weight: 12.27kg
Specification of ATE 24.0220-0036.1 / 240220-00361 / 24022000361:
| OE Number | Reference info |
| CHEVROLET 96193771 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| DAEWOO 96193771 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CHEVROLET LANOS Saloon Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2005-11 - 2010-12 | 55 | 75 | 1349 | Saloon |
| CHEVROLET LANOS Saloon Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2005-11 - 2010-12 | 63 | 86 | 1498 | Saloon |
| CHEVROLET LANOS Saloon Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2005-11 - 2010-12 | 78 | 106 | 1598 | Saloon |
| DAEWOO LANOS Saloon (KLAT) Construction Year to 200212 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1997-05 - | 55 | 75 | 1349 | Saloon |
| DAEWOO LANOS Saloon (KLAT) Construction Year to 200212 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1997-05 - 2002-12 | 63 | 86 | 1498 | Saloon |
| DAEWOO LANOS Saloon (KLAT) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1997-10 - 1999-06 | 73 | 99 | 1498 | Saloon |
| DAEWOO LANOS Saloon (KLAT) Construction Year from 199705 Construction Year to 200212 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1997-02 - | 78 | 106 | 1598 | Saloon |
| DAEWOO LANOS (KLAT) Construction Year to 200212 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1997-05 - | 55 | 75 | 1349 | Hatchback |
| DAEWOO LANOS (KLAT) Construction Year to 200212 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1997-05 - | 63 | 86 | 1498 | Hatchback |
| DAEWOO LANOS (KLAT) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1997-10 - 1999-06 | 73 | 99 | 1498 | Hatchback |
| DAEWOO LANOS (KLAT) Construction Year to 200212 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1997-05 - | 78 | 106 | 1598 | Hatchback |

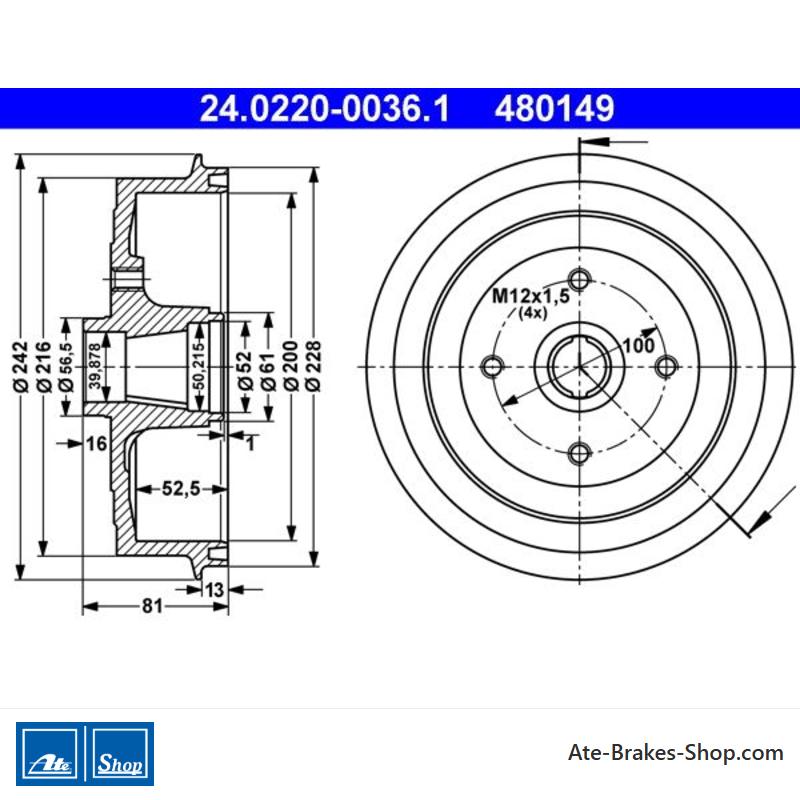

24.0220-0036.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Chevrolet
Daewoo - Trade Number
- 480149
- Country Of Origin
- China
- Additional Info
- without ABS sensor ring
without wheel bearing - Height
- 81,0
- Outer Diameter [mm]
- 228,0
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 100,0
- Support Plate Diameter [mm]
- 50,3
- Inner Diameter [mm]
- 200,0
- Thread Size
- M12x1,5
- Max. Reboring Dimension [mm]
- 201,0
- Brake Drum Inner Height [mm]
- 52,5
- Brake Drum Inner Diameter [mm]
- 39,9
Specific References
- EAN13
- 4006633082105
- MPN
- 2402200036102
