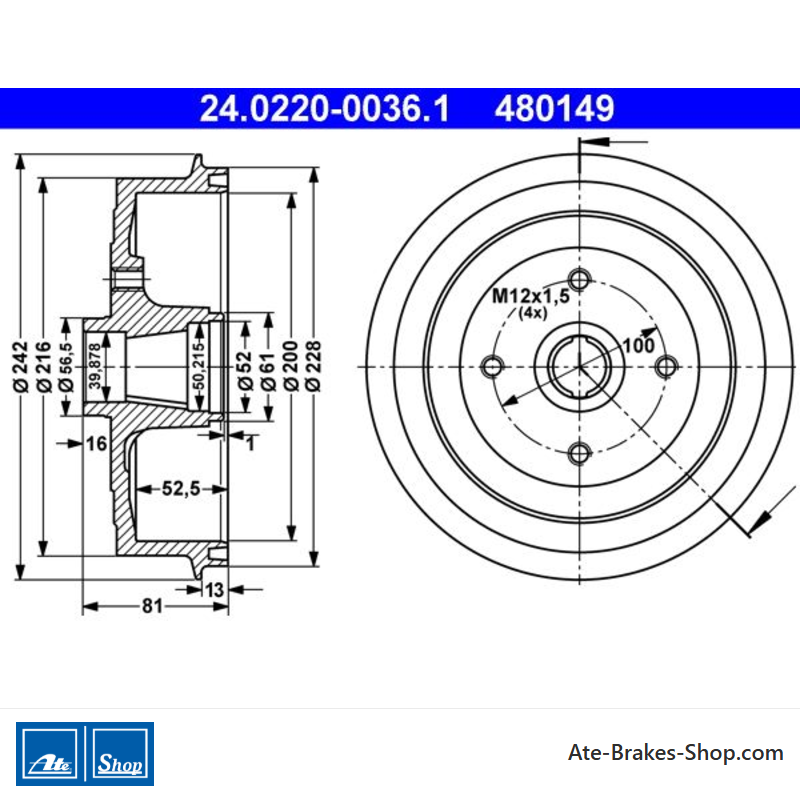

ATE Originaler zweiteiliger Bremstrommel (24022000361) für Chevrolet, Daewoo
90,75 €
(inkl. MwSt.)
75,00 € Steuerexzl.
Teilenummer:
ATE 24.0220-0036.1
(240220-00361)
- Außendurchmesser [mm]: 228,0
- Innendurchmesser [mm]: 200,0
- Trägerplattendurchmesser [mm]: 50,3
- Anzahl der Bolzenlöcher: 4
- 2 Teile der Bremstrommel
- Handelsnummer: 480149
- Ean-Code: 4006633082105
- Gewicht: 12.27kg
Specification of ATE 24.0220-0036.1 / 240220-00361 / 24022000361:
| OE Number | Reference info |
| CHEVROLET 96193771 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| DAEWOO 96193771 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CHEVROLET LANOS Saloon Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2005-11 - 2010-12 | 55 | 75 | 1349 | Saloon |
| CHEVROLET LANOS Saloon Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2005-11 - 2010-12 | 63 | 86 | 1498 | Saloon |
| CHEVROLET LANOS Saloon Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2005-11 - 2010-12 | 78 | 106 | 1598 | Saloon |
| DAEWOO LANOS Saloon (KLAT) Construction Year to 200212 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1997-05 - | 55 | 75 | 1349 | Saloon |
| DAEWOO LANOS Saloon (KLAT) Construction Year to 200212 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1997-05 - 2002-12 | 63 | 86 | 1498 | Saloon |
| DAEWOO LANOS Saloon (KLAT) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1997-10 - 1999-06 | 73 | 99 | 1498 | Saloon |
| DAEWOO LANOS Saloon (KLAT) Construction Year from 199705 Construction Year to 200212 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1997-02 - | 78 | 106 | 1598 | Saloon |
| DAEWOO LANOS (KLAT) Construction Year to 200212 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1997-05 - | 55 | 75 | 1349 | Hatchback |
| DAEWOO LANOS (KLAT) Construction Year to 200212 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1997-05 - | 63 | 86 | 1498 | Hatchback |
| DAEWOO LANOS (KLAT) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1997-10 - 1999-06 | 73 | 99 | 1498 | Hatchback |
| DAEWOO LANOS (KLAT) Construction Year to 200212 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1997-05 - | 78 | 106 | 1598 | Hatchback |
24.0220-0036.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Chevrolet
Daewoo - Handelsnummer
- 480149
- Herkunftsland
- China
- Zusätzliche Informationen
- ohne ABS-Sensorring
ohne Radlager - Höhe
- 81,0
- Außendurchmesser [mm]
- 228,0
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 100,0
- Trägerplattendurchmesser [mm]
- 50,3
- Innendurchmesser [mm]
- 200,0
- Gewindegröße
- M12x1,5
- Max. Bohrende Dimension [mm]
- 201,0
- Innenhöhe der Bremstrommel [mm]
- 52,5
- Innendurchmesser der Bremstrommel [mm]
- 39,9
Spezifische Referenzen
- ean13
- 4006633082105
- Hersteller-Teilenummer (MPN)
- 2402200036102
ATE 24.0220-0036.1
(240220-00361)
- Außendurchmesser [mm]: 228,0
- Innendurchmesser [mm]: 200,0
- Trägerplattendurchmesser [mm]: 50,3
- Anzahl der Bolzenlöcher: 4
- 2 Teile der Bremstrommel
- Handelsnummer: 480149
