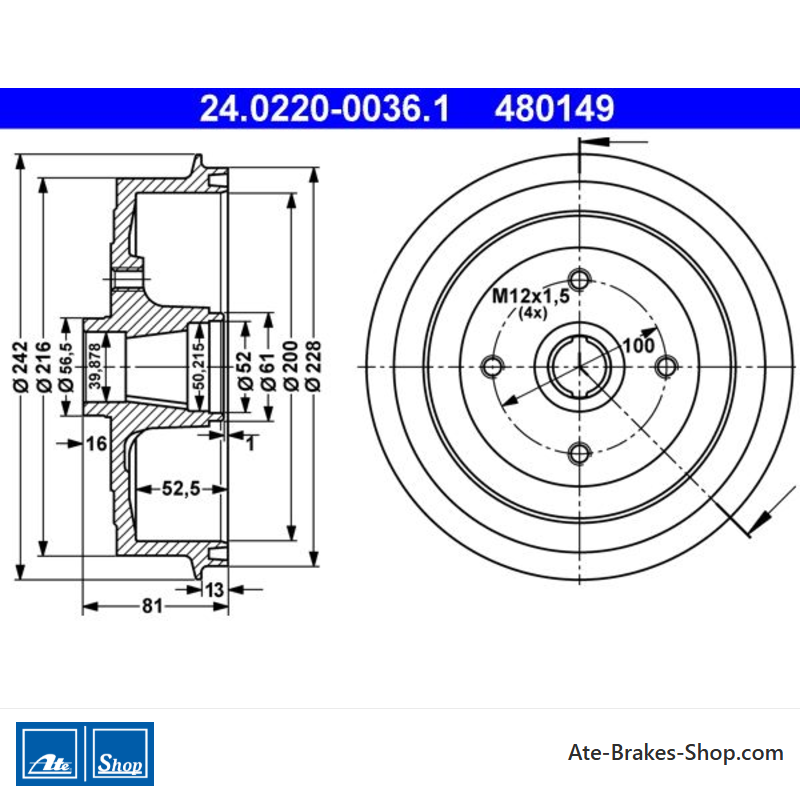

ATE Tambor de freno original de 2 piezas (24022000361) para Chevrolet, Daewoo
90,75 €
(impuestos inc.)
75,00 € fiscales excl.
Número de parte:
ATE 24.0220-0036.1
(240220-00361)
- Diámetro exterior [mm]: 228,0
- Diámetro interior [mm]: 200,0
- Diámetro de la placa de soporte [mm]: 50,3
- Número de agujeros de perno: 4
- 2 piezas de tambor de freno
- Número de intercambio: 480149
- Código Ean: 4006633082105
- Peso: 12.27kg
Specification of ATE 24.0220-0036.1 / 240220-00361 / 24022000361:
| OE Number | Reference info |
| CHEVROLET 96193771 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| DAEWOO 96193771 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CHEVROLET LANOS Saloon Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2005-11 - 2010-12 | 55 | 75 | 1349 | Saloon |
| CHEVROLET LANOS Saloon Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2005-11 - 2010-12 | 63 | 86 | 1498 | Saloon |
| CHEVROLET LANOS Saloon Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2005-11 - 2010-12 | 78 | 106 | 1598 | Saloon |
| DAEWOO LANOS Saloon (KLAT) Construction Year to 200212 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1997-05 - | 55 | 75 | 1349 | Saloon |
| DAEWOO LANOS Saloon (KLAT) Construction Year to 200212 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1997-05 - 2002-12 | 63 | 86 | 1498 | Saloon |
| DAEWOO LANOS Saloon (KLAT) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1997-10 - 1999-06 | 73 | 99 | 1498 | Saloon |
| DAEWOO LANOS Saloon (KLAT) Construction Year from 199705 Construction Year to 200212 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1997-02 - | 78 | 106 | 1598 | Saloon |
| DAEWOO LANOS (KLAT) Construction Year to 200212 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1997-05 - | 55 | 75 | 1349 | Hatchback |
| DAEWOO LANOS (KLAT) Construction Year to 200212 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1997-05 - | 63 | 86 | 1498 | Hatchback |
| DAEWOO LANOS (KLAT) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1997-10 - 1999-06 | 73 | 99 | 1498 | Hatchback |
| DAEWOO LANOS (KLAT) Construction Year to 200212 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1997-05 - | 78 | 106 | 1598 | Hatchback |
24.0220-0036.1
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Chevrolet
Daewoo - Número de Comercio
- 480149
- País de origen
- China
- Información adicional
- sin anillo sensor ABS
sin rodamientos de rueda - Altura
- 81,0
- Diámetro exterior [mm]
- 228,0
- Número de agujeros para los tornillos
- 4
- Diámetro del agujero del perno [mm]
- 100,0
- Diámetro de la placa de soporte [mm]
- 50,3
- Diámetro interior [mm]
- 200,0
- Tamaño del hilo
- M12x1,5
- Max. Dimensión de perforación [mm]
- 201,0
- Altura interior del tambor de freno [mm]
- 52,5
- Diámetro interior del tambor de freno [mm]
- 39,9
Referencias específicas
- ean13
- 4006633082105
- MPN
- 2402200036102
