ATE Originele 2-delige remtrommel (24022000361) voor Chevrolet, Daewoo
€ 90,75
(incl. btw)
€ 75,00 belastingexcl.
Onderdeelnummer:
ATE 24.0220-0036.1
(240220-00361)
- Buitendiameter [mm]: 228,0
- Binnendiameter [mm]: 200,0
- Draagplaat diameter [mm]: 50,3
- Aantal boutgaten: 4
- 2 Stukken Remtrommel
- Handelsnummer: 480149
- Ean Code: 4006633082105
- Gewicht: 12.27kg
Specification of ATE 24.0220-0036.1 / 240220-00361 / 24022000361:
| OE Number | Reference info |
| CHEVROLET 96193771 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| DAEWOO 96193771 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CHEVROLET LANOS Saloon Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2005-11 - 2010-12 | 55 | 75 | 1349 | Saloon |
| CHEVROLET LANOS Saloon Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2005-11 - 2010-12 | 63 | 86 | 1498 | Saloon |
| CHEVROLET LANOS Saloon Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2005-11 - 2010-12 | 78 | 106 | 1598 | Saloon |
| DAEWOO LANOS Saloon (KLAT) Construction Year to 200212 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1997-05 - | 55 | 75 | 1349 | Saloon |
| DAEWOO LANOS Saloon (KLAT) Construction Year to 200212 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1997-05 - 2002-12 | 63 | 86 | 1498 | Saloon |
| DAEWOO LANOS Saloon (KLAT) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1997-10 - 1999-06 | 73 | 99 | 1498 | Saloon |
| DAEWOO LANOS Saloon (KLAT) Construction Year from 199705 Construction Year to 200212 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1997-02 - | 78 | 106 | 1598 | Saloon |
| DAEWOO LANOS (KLAT) Construction Year to 200212 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1997-05 - | 55 | 75 | 1349 | Hatchback |
| DAEWOO LANOS (KLAT) Construction Year to 200212 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1997-05 - | 63 | 86 | 1498 | Hatchback |
| DAEWOO LANOS (KLAT) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1997-10 - 1999-06 | 73 | 99 | 1498 | Hatchback |
| DAEWOO LANOS (KLAT) Construction Year to 200212 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1997-05 - | 78 | 106 | 1598 | Hatchback |

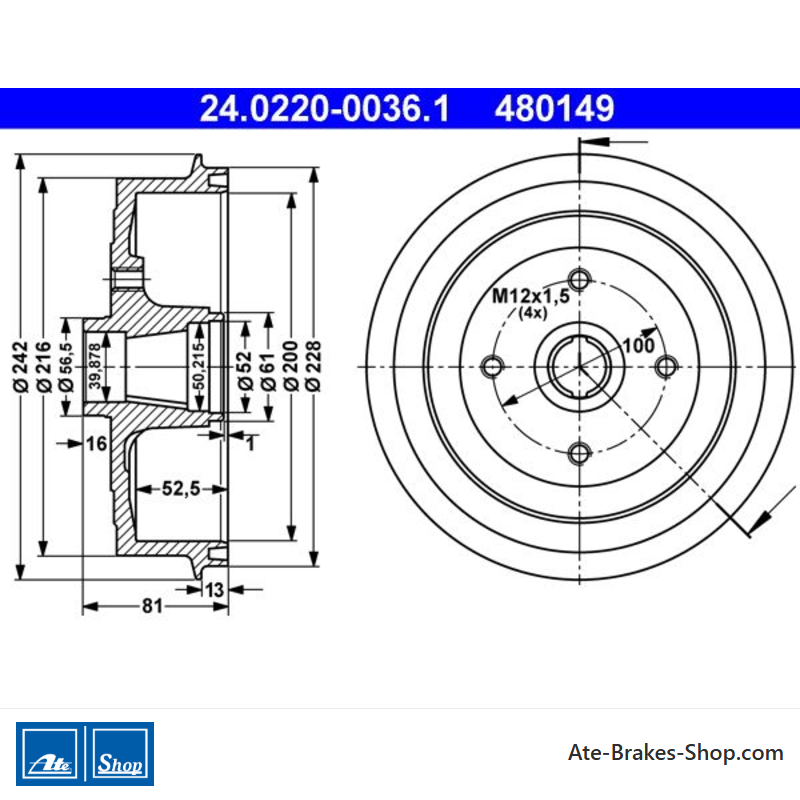

24.0220-0036.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Chevrolet
Daewoo - Handelsnummer
- 480149
- Land van Herkomst
- China
- Aanvullende informatie
- zonder ABS-sensorring
zonder wiellager - Hoogte
- 81,0
- Buitendiameter [mm]
- 228,0
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 100,0
- Diameter van de ondersteuningsplaat [mm]
- 50,3
- Binnendiameter [mm]
- 200,0
- Draadmaat
- M12x1,5
- Max. Afborende Dimensie [mm]
- 201,0
- Binnenhoogte van de remtrommel [mm]
- 52,5
- Remtrommel binnendiameter [mm]
- 39,9
Specifieke referenties
- ean13
- 4006633082105
- MPN
- 2402200036102
