2 pieces of ATE original Brake Disk (24011003691) for Hyundai
€112.53
(tax incl.)
€93.00 tax excl.
Part-number:
ATE 24.0110-0369.1
(240110-03691)
- Outer Diameter [mm]: 300,0
- Inner Diameter [mm]: 155,0
- Brake Disc Thickness [mm]: 10,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 410369
Logistical information:
- Ean Code: 4006633383691
- Weight: 8.69kg
Specification of ATE 24.0110-0369.1 / 240110-03691 / 24011003691:
| OE Number | Reference info |
| HYUNDAI 58411-3Z700 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HYUNDAI i40 I CW (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2011-07 - 2019-05 | 99 | 135 | 1591 | Estate |
| HYUNDAI i40 I CW (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2012-10 - 2019-05 | 110 | 150 | 1999 | Estate |
| HYUNDAI i40 I CW (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2014-12 - 2019-05 | 121 | 165 | 1999 | Estate |
| HYUNDAI i40 I CW (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2012-06 - 2019-05 | 121 | 165 | 1999 | Estate |
| HYUNDAI i40 I CW (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2011-07 - 2019-05 | 130 | 177 | 1999 | Estate |
| HYUNDAI i40 I CW (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2011-07 - 2019-05 | 130 | 177 | 1999 | Estate |
| HYUNDAI i40 I CW (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2018-07 - 2019-05 | 85 | 116 | 1598 | Estate |
| HYUNDAI i40 I CW (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2018-07 - 2019-05 | 100 | 136 | 1598 | Estate |
| HYUNDAI i40 I CW (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2011-07 - 2019-05 | 85 | 116 | 1685 | Estate |
| HYUNDAI i40 I CW (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2011-07 - 2019-05 | 100 | 136 | 1685 | Estate |
| HYUNDAI i40 I CW (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2015-01 - 2019-05 | 104 | 141 | 1685 | Estate |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2012-03 - 2019-05 | 99 | 135 | 1591 | Saloon |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2012-10 - 2019-05 | 110 | 150 | 1999 | Saloon |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2014-12 - 2019-05 | 121 | 165 | 1999 | Saloon |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2012-03 - 2019-05 | 121 | 165 | 1999 | Saloon |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2012-03 - 2019-05 | 130 | 177 | 1999 | Saloon |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2012-03 - 2019-05 | 131 | 178 | 1999 | Saloon |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2018-07 - 2019-05 | 85 | 116 | 1598 | Saloon |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2018-07 - 2019-05 | 100 | 136 | 1598 | Saloon |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2012-03 - 2019-05 | 85 | 116 | 1685 | Saloon |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2012-03 - 2019-05 | 100 | 136 | 1685 | Saloon |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2015-01 - 2019-05 | 104 | 141 | 1685 | Saloon |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2012-03 - 2019-05 | 130 | 177 | 1999 | Saloon |

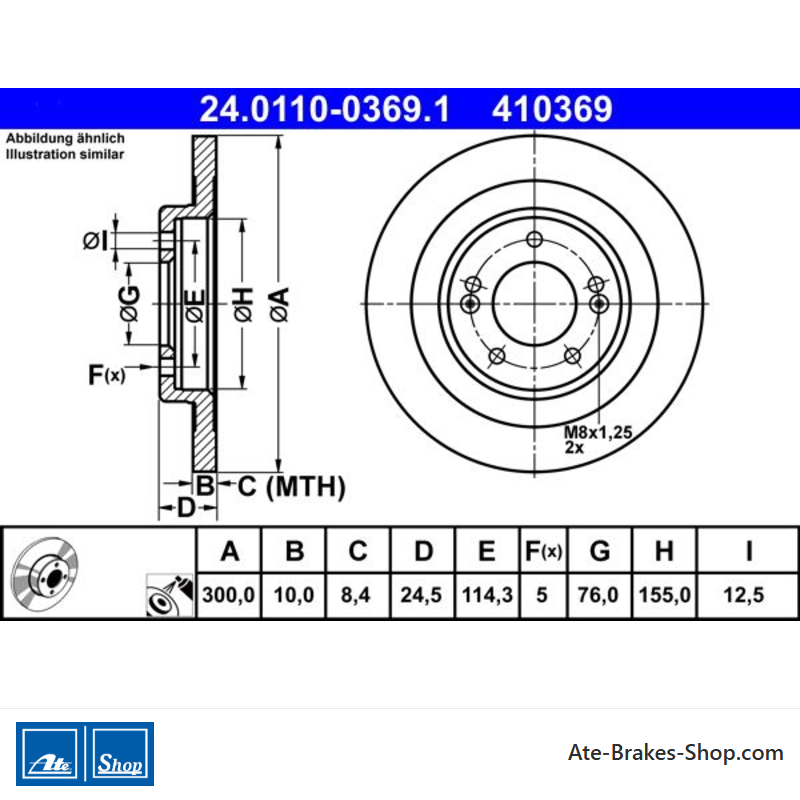

24.0110-0369.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Hyundai
- Trade Number
- 410369
- Country Of Origin
- Czechia
- Height
- 24,5
- Outer Diameter [mm]
- 300,0
- Brake Disc Thickness [mm]
- 10,0
- Brake Disc Type
- solid
- Surface
- Coated
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 114,3
- Centering Diameter [mm]
- 76,0
- Inner Diameter [mm]
- 155,0
- Bore Diameter [mm]
- 12,5
- Minimum Thickness [mm]
- 8,4
Specific References
- EAN13
- 4006633383691
- MPN
- 2401100369102
ATE 24.0110-0369.1
(240110-03691)
- Outer Diameter [mm]: 300,0
- Inner Diameter [mm]: 155,0
- Brake Disc Thickness [mm]: 10,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 410369
