ATE Disque de frein original en 2 pièces (24011003691) pour Hyundai
112,53 €
TTC
93,00 € fiscalité ex.
Numéro de pièce :
ATE 24.0110-0369.1
(240110-03691)
- Diamètre extérieur [mm] : 300,0
- Diamètre intérieur [mm] : 155,0
- Épaisseur du disque de frein [mm] : 10,0
- Nombre de trous de boulon : 5
- 2 pièces de disque de frein
- Numéro d’échange : 410369
Informations logistiques :
- Code Ean : 4006633383691
- Poids : 8.69kg
Specification of ATE 24.0110-0369.1 / 240110-03691 / 24011003691:
| OE Number | Reference info |
| HYUNDAI 58411-3Z700 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HYUNDAI i40 I CW (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2011-07 - 2019-05 | 99 | 135 | 1591 | Estate |
| HYUNDAI i40 I CW (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2012-10 - 2019-05 | 110 | 150 | 1999 | Estate |
| HYUNDAI i40 I CW (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2014-12 - 2019-05 | 121 | 165 | 1999 | Estate |
| HYUNDAI i40 I CW (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2012-06 - 2019-05 | 121 | 165 | 1999 | Estate |
| HYUNDAI i40 I CW (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2011-07 - 2019-05 | 130 | 177 | 1999 | Estate |
| HYUNDAI i40 I CW (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2011-07 - 2019-05 | 130 | 177 | 1999 | Estate |
| HYUNDAI i40 I CW (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2018-07 - 2019-05 | 85 | 116 | 1598 | Estate |
| HYUNDAI i40 I CW (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2018-07 - 2019-05 | 100 | 136 | 1598 | Estate |
| HYUNDAI i40 I CW (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2011-07 - 2019-05 | 85 | 116 | 1685 | Estate |
| HYUNDAI i40 I CW (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2011-07 - 2019-05 | 100 | 136 | 1685 | Estate |
| HYUNDAI i40 I CW (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2015-01 - 2019-05 | 104 | 141 | 1685 | Estate |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2012-03 - 2019-05 | 99 | 135 | 1591 | Saloon |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2012-10 - 2019-05 | 110 | 150 | 1999 | Saloon |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2014-12 - 2019-05 | 121 | 165 | 1999 | Saloon |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2012-03 - 2019-05 | 121 | 165 | 1999 | Saloon |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2012-03 - 2019-05 | 130 | 177 | 1999 | Saloon |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2012-03 - 2019-05 | 131 | 178 | 1999 | Saloon |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2018-07 - 2019-05 | 85 | 116 | 1598 | Saloon |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2018-07 - 2019-05 | 100 | 136 | 1598 | Saloon |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2012-03 - 2019-05 | 85 | 116 | 1685 | Saloon |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2012-03 - 2019-05 | 100 | 136 | 1685 | Saloon |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2015-01 - 2019-05 | 104 | 141 | 1685 | Saloon |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2012-03 - 2019-05 | 130 | 177 | 1999 | Saloon |

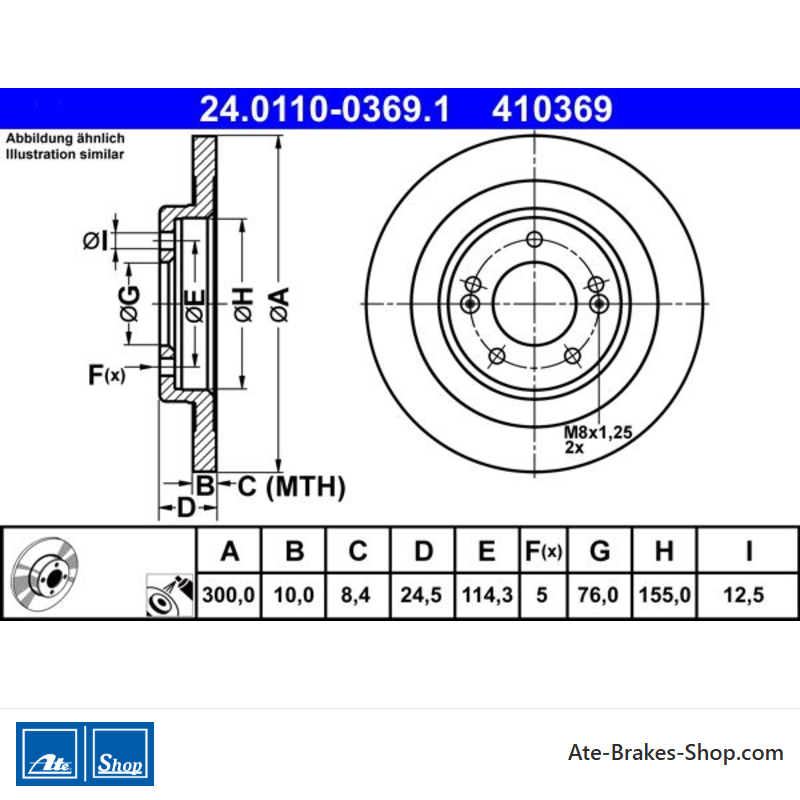

24.0110-0369.1
Fiche technique
- Statut de l’article
- Ordonnance
- Marque automobile
- Hyundai
- Numéro de trade
- 410369
- Pays d’origine
- Tchéquie
- Hauteur
- 24,5
- Diamètre extérieur [mm]
- 300,0
- Épaisseur du disque de frein [mm]
- 10,0
- Type à disque de frein
- solide
- Surface
- Enduit
- Nombre de trous de boulons
- 5
- Diamètre du trou de boulon [mm]
- 114,3
- Diamètre de centrage [mm]
- 76,0
- Diamètre intérieur [mm]
- 155,0
- Diamètre du canon [mm]
- 12,5
- Épaisseur minimale [mm]
- 8,4
Références spécifiques
- EAN-13
- 4006633383691
- MPN
- 2401100369102
ATE 24.0110-0369.1
(240110-03691)
- Diamètre extérieur [mm] : 300,0
- Diamètre intérieur [mm] : 155,0
- Épaisseur du disque de frein [mm] : 10,0
- Nombre de trous de boulon : 5
- 2 pièces de disque de frein
- Numéro d’échange : 410369
