ATE Originale zweiteilige Bremsscheibe (24011003691) für Hyundai
search
  • ATE Originale zweiteilige Bremsscheibe (24011003691) für Hyundai
  • ATE Originale zweiteilige Bremsscheibe (24011003691) für Hyundai
  • ATE Originale zweiteilige Bremsscheibe (24011003691) für Hyundai

ATE Originale zweiteilige Bremsscheibe (24011003691) für Hyundai

112,53 € (inkl. MwSt.)

93,00 € Steuerexzl.

Teilenummer:

ATE 24.0110-0369.1
(240110-03691)

  • Außendurchmesser [mm]: 300,0
  • Innendurchmesser [mm]: 155,0
  • Bremsscheibendicke [mm]: 10,0
  • Anzahl der Bolzenlöcher: 5
  • 2 Teile Bremsscheiben
  • Handelsnummer: 410369
Logistische Informationen:
76,0Klicken Sie hier für detaillierte Informationen.
  • Ean-Code: 4006633383691
  • Gewicht: 8.69kg
Menge

Specification of ATE 24.0110-0369.1 / 240110-03691 / 24011003691:

OE NumberReference info
HYUNDAI 58411-3Z700Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)

ModelModel YearkWHPCCType
HYUNDAI i40 I CW (VF)

Fitting Position Rear Axle

Rim Size [inch] 17.0 Inch

Rim Size [inch] 18.0 Inch		2011-07 - 2019-05991351591Estate
HYUNDAI i40 I CW (VF)

Fitting Position Rear Axle

Rim Size [inch] 17.0 Inch

Rim Size [inch] 18.0 Inch		2012-10 - 2019-051101501999Estate
HYUNDAI i40 I CW (VF)

Fitting Position Rear Axle

Rim Size [inch] 17.0 Inch

Rim Size [inch] 18.0 Inch		2014-12 - 2019-051211651999Estate
HYUNDAI i40 I CW (VF)

Fitting Position Rear Axle

Rim Size [inch] 17.0 Inch

Rim Size [inch] 18.0 Inch		2012-06 - 2019-051211651999Estate
HYUNDAI i40 I CW (VF)

Fitting Position Rear Axle

Rim Size [inch] 17.0 Inch

Rim Size [inch] 18.0 Inch		2011-07 - 2019-051301771999Estate
HYUNDAI i40 I CW (VF)

Fitting Position Rear Axle

Rim Size [inch] 17.0 Inch

Rim Size [inch] 18.0 Inch		2011-07 - 2019-051301771999Estate
HYUNDAI i40 I CW (VF)

Fitting Position Rear Axle

Rim Size [inch] 17.0 Inch

Rim Size [inch] 18.0 Inch		2018-07 - 2019-05851161598Estate
HYUNDAI i40 I CW (VF)

Fitting Position Rear Axle

Rim Size [inch] 17.0 Inch

Rim Size [inch] 18.0 Inch		2018-07 - 2019-051001361598Estate
HYUNDAI i40 I CW (VF)

Fitting Position Rear Axle

Rim Size [inch] 17.0 Inch

Rim Size [inch] 18.0 Inch		2011-07 - 2019-05851161685Estate
HYUNDAI i40 I CW (VF)

Fitting Position Rear Axle

Rim Size [inch] 17.0 Inch

Rim Size [inch] 18.0 Inch		2011-07 - 2019-051001361685Estate
HYUNDAI i40 I CW (VF)

Fitting Position Rear Axle

Rim Size [inch] 17.0 Inch

Rim Size [inch] 18.0 Inch		2015-01 - 2019-051041411685Estate
HYUNDAI i40 I (VF)

Fitting Position Rear Axle

Rim Size [inch] 17.0 Inch

Rim Size [inch] 18.0 Inch		2012-03 - 2019-05991351591Saloon
HYUNDAI i40 I (VF)

Fitting Position Rear Axle

Rim Size [inch] 17.0 Inch

Rim Size [inch] 18.0 Inch		2012-10 - 2019-051101501999Saloon
HYUNDAI i40 I (VF)

Fitting Position Rear Axle

Rim Size [inch] 17.0 Inch

Rim Size [inch] 18.0 Inch		2014-12 - 2019-051211651999Saloon
HYUNDAI i40 I (VF)

Fitting Position Rear Axle

Rim Size [inch] 17.0 Inch

Rim Size [inch] 18.0 Inch		2012-03 - 2019-051211651999Saloon
HYUNDAI i40 I (VF)

Fitting Position Rear Axle

Rim Size [inch] 17.0 Inch

Rim Size [inch] 18.0 Inch		2012-03 - 2019-051301771999Saloon
HYUNDAI i40 I (VF)

Fitting Position Rear Axle

Rim Size [inch] 17.0 Inch

Rim Size [inch] 18.0 Inch		2012-03 - 2019-051311781999Saloon
HYUNDAI i40 I (VF)

Fitting Position Rear Axle

Rim Size [inch] 17.0 Inch

Rim Size [inch] 18.0 Inch		2018-07 - 2019-05851161598Saloon
HYUNDAI i40 I (VF)

Fitting Position Rear Axle

Rim Size [inch] 17.0 Inch

Rim Size [inch] 18.0 Inch		2018-07 - 2019-051001361598Saloon
HYUNDAI i40 I (VF)

Fitting Position Rear Axle

Rim Size [inch] 17.0 Inch

Rim Size [inch] 18.0 Inch		2012-03 - 2019-05851161685Saloon
HYUNDAI i40 I (VF)

Fitting Position Rear Axle

Rim Size [inch] 17.0 Inch

Rim Size [inch] 18.0 Inch		2012-03 - 2019-051001361685Saloon
HYUNDAI i40 I (VF)

Fitting Position Rear Axle

Rim Size [inch] 17.0 Inch

Rim Size [inch] 18.0 Inch		2015-01 - 2019-051041411685Saloon
HYUNDAI i40 I (VF)

Fitting Position Rear Axle

Rim Size [inch] 17.0 Inch

Rim Size [inch] 18.0 Inch		2012-03 - 2019-051301771999Saloon

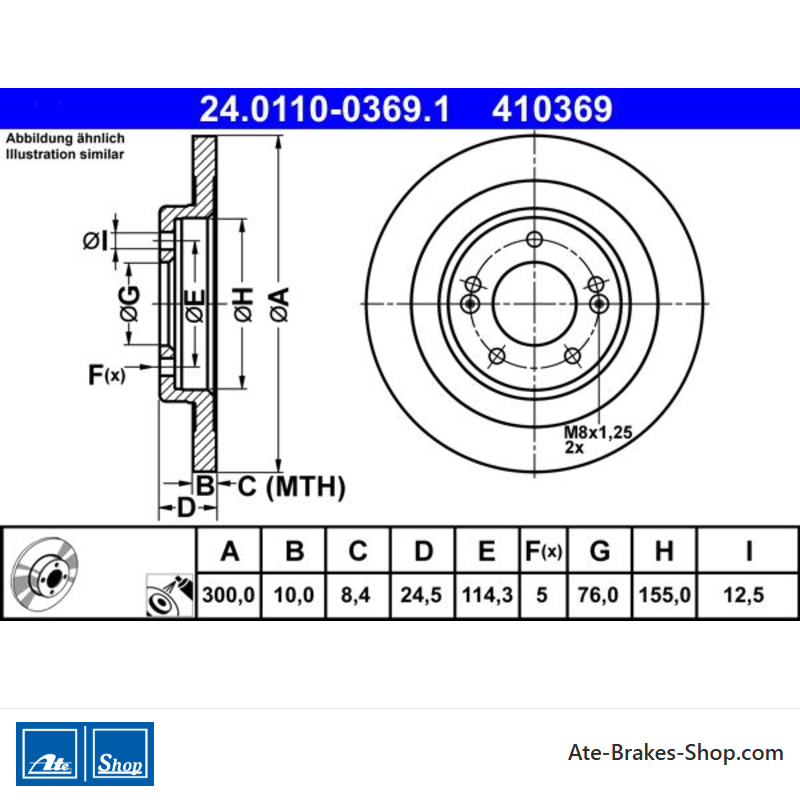

24.0110-0369.1

Datenblatt

Artikelstatus
Bestellbar
Automarke
Hyundai
Handelsnummer
410369
Herkunftsland
Tschechien
Höhe
24,5
Außendurchmesser [mm]
300,0
Bremsscheibendicke [mm]
10,0
Bremsscheibentyp
Solide
Oberfläche
Coated
Anzahl der Schraublöcher
5
Bolzenlochdurchmesser [mm]
114,3
Zentrierungsdurchmesser [mm]
76,0
Innendurchmesser [mm]
155,0
Bohrdurchmesser [mm]
12,5
Mindestdicke [mm]
8,4

Spezifische Referenzen

ean13
4006633383691
Hersteller-Teilenummer (MPN)
2401100369102
