ATE Disco de freno original de 2 piezas (24011003691) para Hyundai
112,53 €
(impuestos inc.)
93,00 € fiscales excl.

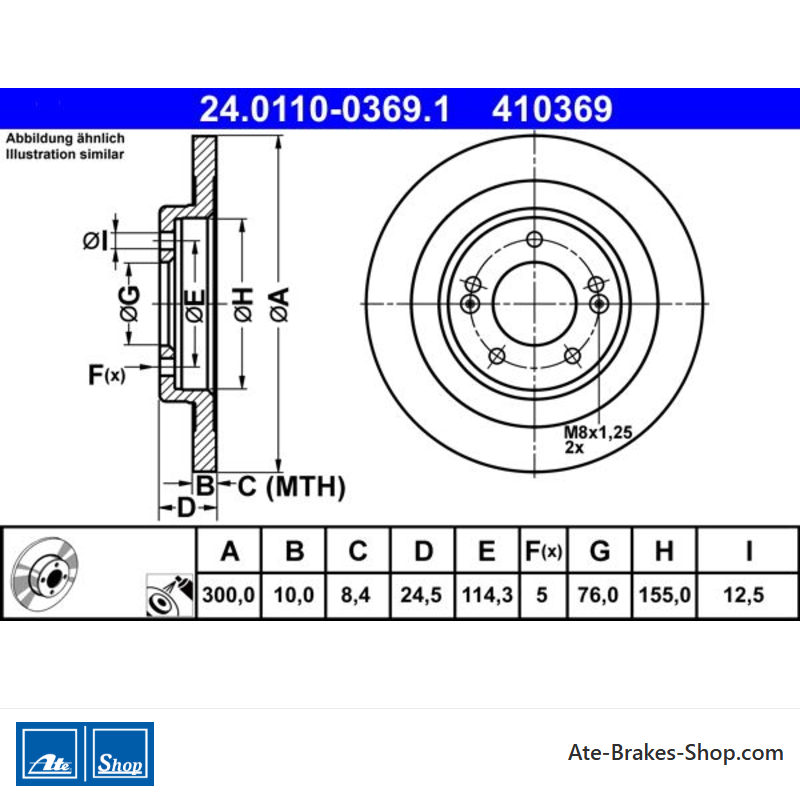

Número de parte:
ATE 24.0110-0369.1
(240110-03691)
- Diámetro exterior [mm]: 300,0
- Diámetro interior [mm]: 155,0
- Grosor del disco de freno [mm]: 10,0
- Número de agujeros de perno: 5
- 2 piezas de disco de freno
- Número de intercambio: 410369
Información logística:
- Código Ean: 4006633383691
- Peso: 8.69kg
Specification of ATE 24.0110-0369.1 / 240110-03691 / 24011003691:
| OE Number | Reference info |
| HYUNDAI 58411-3Z700 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HYUNDAI i40 I CW (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2011-07 - 2019-05 | 99 | 135 | 1591 | Estate |
| HYUNDAI i40 I CW (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2012-10 - 2019-05 | 110 | 150 | 1999 | Estate |
| HYUNDAI i40 I CW (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2014-12 - 2019-05 | 121 | 165 | 1999 | Estate |
| HYUNDAI i40 I CW (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2012-06 - 2019-05 | 121 | 165 | 1999 | Estate |
| HYUNDAI i40 I CW (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2011-07 - 2019-05 | 130 | 177 | 1999 | Estate |
| HYUNDAI i40 I CW (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2011-07 - 2019-05 | 130 | 177 | 1999 | Estate |
| HYUNDAI i40 I CW (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2018-07 - 2019-05 | 85 | 116 | 1598 | Estate |
| HYUNDAI i40 I CW (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2018-07 - 2019-05 | 100 | 136 | 1598 | Estate |
| HYUNDAI i40 I CW (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2011-07 - 2019-05 | 85 | 116 | 1685 | Estate |
| HYUNDAI i40 I CW (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2011-07 - 2019-05 | 100 | 136 | 1685 | Estate |
| HYUNDAI i40 I CW (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2015-01 - 2019-05 | 104 | 141 | 1685 | Estate |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2012-03 - 2019-05 | 99 | 135 | 1591 | Saloon |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2012-10 - 2019-05 | 110 | 150 | 1999 | Saloon |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2014-12 - 2019-05 | 121 | 165 | 1999 | Saloon |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2012-03 - 2019-05 | 121 | 165 | 1999 | Saloon |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2012-03 - 2019-05 | 130 | 177 | 1999 | Saloon |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2012-03 - 2019-05 | 131 | 178 | 1999 | Saloon |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2018-07 - 2019-05 | 85 | 116 | 1598 | Saloon |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2018-07 - 2019-05 | 100 | 136 | 1598 | Saloon |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2012-03 - 2019-05 | 85 | 116 | 1685 | Saloon |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2012-03 - 2019-05 | 100 | 136 | 1685 | Saloon |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2015-01 - 2019-05 | 104 | 141 | 1685 | Saloon |
| HYUNDAI i40 I (VF) Fitting Position Rear Axle Rim Size [inch] 17.0 Inch Rim Size [inch] 18.0 Inch | 2012-03 - 2019-05 | 130 | 177 | 1999 | Saloon |
24.0110-0369.1
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Hyundai
- Número de Comercio
- 410369
- País de origen
- Chequia
- Altura
- 24,5
- Diámetro exterior [mm]
- 300,0
- Grosor del disco de freno [mm]
- 10,0
- Tipo de disco de freno
- sólido
- Superficie
- Revestido
- Número de agujeros para los tornillos
- 5
- Diámetro del agujero del perno [mm]
- 114,3
- Diámetro de centrado [mm]
- 76,0
- Diámetro interior [mm]
- 155,0
- Diámetro del diámetro del diámetro [mm]
- 12,5
- Espesor mínimo [mm]
- 8,4
Referencias específicas
- ean13
- 4006633383691
- MPN
- 2401100369102
ATE 24.0110-0369.1
(240110-03691)
- Diámetro exterior [mm]: 300,0
- Diámetro interior [mm]: 155,0
- Grosor del disco de freno [mm]: 10,0
- Número de agujeros de perno: 5
- 2 piezas de disco de freno
- Número de intercambio: 410369
