2 pieces of ATE original Brake Disk (24012202901) for Suzuki
€98.01
(tax incl.)
€81.00 tax excl.
Part-number:
ATE 24.0122-0290.1
(240122-02901)
- Outer Diameter [mm]: 280,0
- Inner Diameter [mm]: 146,3
- Brake Disc Thickness [mm]: 22,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 422290
Logistical information:
- Ean Code: 4006633415699
- Weight: 11.15kg
Specification of ATE 24.0122-0290.1 / 240122-02901 / 24012202901:
| OE Number | Reference info |
| SUZUKI 55311-61M00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 55311-61M10 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 55311-61M11 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| SUZUKI S-CROSS Fitting Position Front Axle | 2022-01 - | 95 | 129 | 1373 | SUV |
| SUZUKI S-CROSS Fitting Position Front Axle | 2022-01 - | 95 | 129 | 1373 | SUV |
| SUZUKI S-CROSS Fitting Position Front Axle | 2022-01 - | 85 | 116 | 1462 | SUV |
| SUZUKI S-CROSS Fitting Position Front Axle | 2022-01 - | 85 | 116 | 1462 | SUV |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2016-08 - 2022-06 | 82 | 111 | 998 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2016-08 - 2022-06 | 82 | 111 | 998 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2019-08 - 2022-06 | 95 | 129 | 1373 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2019-08 - 2022-06 | 95 | 129 | 1373 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2016-08 - 2022-06 | 103 | 140 | 1373 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2016-08 - 2022-06 | 103 | 140 | 1373 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2013-12 - 2022-06 | 86 | 117 | 1586 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2013-12 - 2022-06 | 86 | 117 | 1586 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2013-08 - 2022-06 | 88 | 120 | 1586 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2013-08 - 2022-06 | 88 | 120 | 1586 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2013-08 - 2022-06 | 88 | 120 | 1598 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2013-08 - 2022-06 | 88 | 120 | 1598 | Hatchback |
| SUZUKI VITARA (LY) Fitting Position Front Axle | 2018-10 - | 82 | 111 | 998 | SUV |
| SUZUKI VITARA (LY) Fitting Position Front Axle | 2018-10 - | 82 | 111 | 998 | SUV |
| SUZUKI VITARA (LY) Fitting Position Front Axle | 2019-07 - | 95 | 129 | 1373 | SUV |
| SUZUKI VITARA (LY) Fitting Position Front Axle | 2019-07 - | 95 | 129 | 1373 | SUV |
| SUZUKI VITARA (LY) Fitting Position Front Axle | 2023-08 - | 95 | 129 | 1373 | SUV |
| SUZUKI VITARA (LY) Construction Year from 201702 Fitting Position Front Axle | 2015-09 - 2020-07 | 103 | 140 | 1373 | SUV |
| SUZUKI VITARA (LY) Construction Year from 201702 Fitting Position Front Axle | 2015-09 - 2020-07 | 103 | 140 | 1373 | SUV |
| SUZUKI VITARA (LY) Fitting Position Front Axle | 2022-01 - | 85 | 116 | 1462 | SUV |
| SUZUKI VITARA (LY) Fitting Position Front Axle | 2022-01 - | 85 | 116 | 1462 | SUV |
| SUZUKI VITARA (LY) Fitting Position Front Axle | 2023-08 - | 85 | 116 | 1462 | SUV |
| SUZUKI VITARA (LY) Construction Year from 201702 Fitting Position Front Axle | 2015-05 - | 86 | 117 | 1586 | SUV |
| SUZUKI VITARA (LY) Construction Year from 201702 Fitting Position Front Axle | 2015-02 - | 88 | 120 | 1586 | SUV |
| SUZUKI VITARA (LY) Construction Year from 201702 Fitting Position Front Axle | 2015-02 - | 88 | 120 | 1586 | SUV |
| SUZUKI VITARA (LY) Construction Year from 201702 Fitting Position Front Axle | 2015-02 - | 88 | 120 | 1598 | SUV |
| SUZUKI VITARA (LY) Construction Year from 201702 Fitting Position Front Axle | 2015-02 - | 88 | 120 | 1598 | SUV |

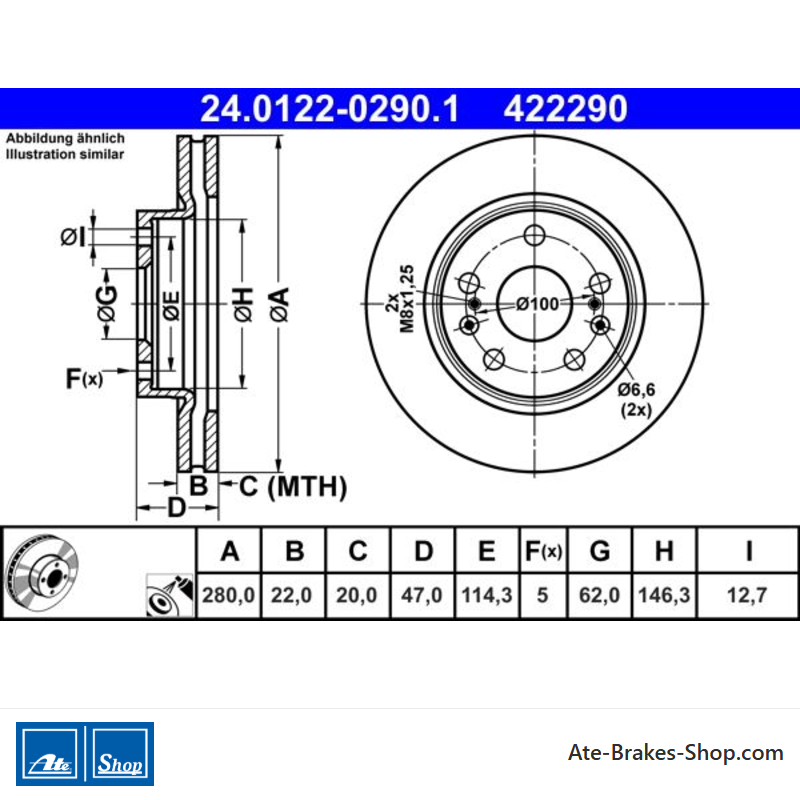

24.0122-0290.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Suzuki
- Trade Number
- 422290
- Country Of Origin
- Czechia
- Height
- 47,0
- Outer Diameter [mm]
- 280,0
- Brake Disc Thickness [mm]
- 22,0
- Brake Disc Type
- Vented
- Surface
- Coated
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 114,3
- Centering Diameter [mm]
- 62,0
- Inner Diameter [mm]
- 146,3
- Bore Diameter [mm]
- 12,7
- Minimum Thickness [mm]
- 20,0
Specific References
- EAN13
- 4006633415699
- MPN
- 2401220290102
ATE 24.0122-0290.1
(240122-02901)
- Outer Diameter [mm]: 280,0
- Inner Diameter [mm]: 146,3
- Brake Disc Thickness [mm]: 22,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 422290
