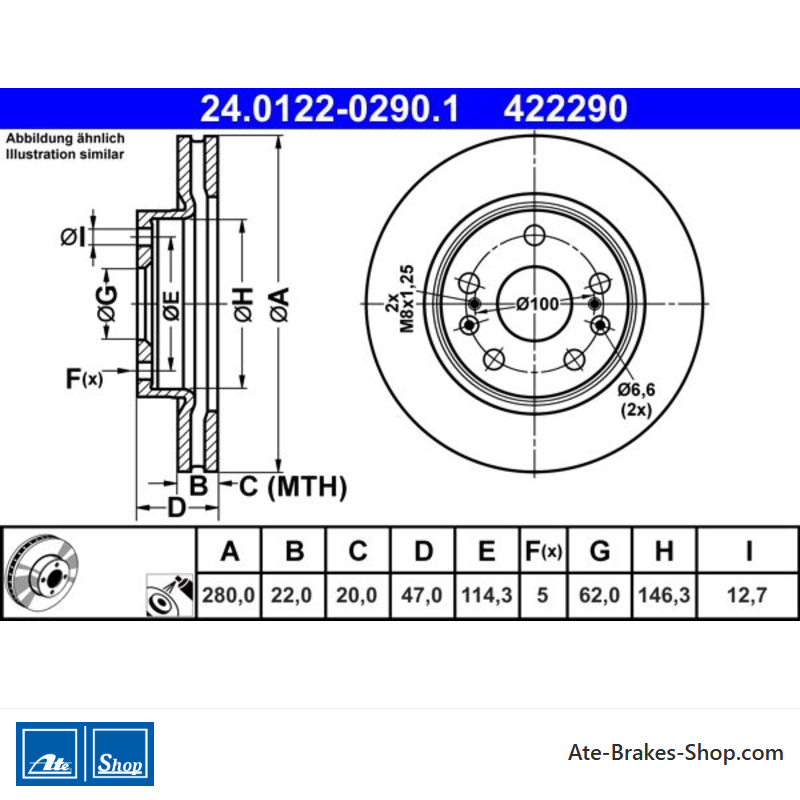

ATE Disque de frein original en 2 pièces (24012202901) pour Suzuki
98,01 €
TTC
81,00 € fiscalité ex.
Numéro de pièce :
ATE 24.0122-0290.1
(240122-02901)
- Diamètre extérieur [mm] : 280,0
- Diamètre intérieur [mm] : 146,3
- Épaisseur du disque de frein [mm] : 22,0
- Nombre de trous de boulon : 5
- 2 pièces de disque de frein
- Numéro de commerce : 422290
Informations logistiques :
- Code Ean : 4006633415699
- Poids : 11.15kg
Specification of ATE 24.0122-0290.1 / 240122-02901 / 24012202901:
| OE Number | Reference info |
| SUZUKI 55311-61M00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 55311-61M10 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 55311-61M11 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| SUZUKI S-CROSS Fitting Position Front Axle | 2022-01 - | 95 | 129 | 1373 | SUV |
| SUZUKI S-CROSS Fitting Position Front Axle | 2022-01 - | 95 | 129 | 1373 | SUV |
| SUZUKI S-CROSS Fitting Position Front Axle | 2022-01 - | 85 | 116 | 1462 | SUV |
| SUZUKI S-CROSS Fitting Position Front Axle | 2022-01 - | 85 | 116 | 1462 | SUV |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2016-08 - 2022-06 | 82 | 111 | 998 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2016-08 - 2022-06 | 82 | 111 | 998 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2019-08 - 2022-06 | 95 | 129 | 1373 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2019-08 - 2022-06 | 95 | 129 | 1373 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2016-08 - 2022-06 | 103 | 140 | 1373 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2016-08 - 2022-06 | 103 | 140 | 1373 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2013-12 - 2022-06 | 86 | 117 | 1586 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2013-12 - 2022-06 | 86 | 117 | 1586 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2013-08 - 2022-06 | 88 | 120 | 1586 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2013-08 - 2022-06 | 88 | 120 | 1586 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2013-08 - 2022-06 | 88 | 120 | 1598 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2013-08 - 2022-06 | 88 | 120 | 1598 | Hatchback |
| SUZUKI VITARA (LY) Fitting Position Front Axle | 2018-10 - | 82 | 111 | 998 | SUV |
| SUZUKI VITARA (LY) Fitting Position Front Axle | 2018-10 - | 82 | 111 | 998 | SUV |
| SUZUKI VITARA (LY) Fitting Position Front Axle | 2019-07 - | 95 | 129 | 1373 | SUV |
| SUZUKI VITARA (LY) Fitting Position Front Axle | 2019-07 - | 95 | 129 | 1373 | SUV |
| SUZUKI VITARA (LY) Fitting Position Front Axle | 2023-08 - | 95 | 129 | 1373 | SUV |
| SUZUKI VITARA (LY) Construction Year from 201702 Fitting Position Front Axle | 2015-09 - 2020-07 | 103 | 140 | 1373 | SUV |
| SUZUKI VITARA (LY) Construction Year from 201702 Fitting Position Front Axle | 2015-09 - 2020-07 | 103 | 140 | 1373 | SUV |
| SUZUKI VITARA (LY) Fitting Position Front Axle | 2022-01 - | 85 | 116 | 1462 | SUV |
| SUZUKI VITARA (LY) Fitting Position Front Axle | 2022-01 - | 85 | 116 | 1462 | SUV |
| SUZUKI VITARA (LY) Fitting Position Front Axle | 2023-08 - | 85 | 116 | 1462 | SUV |
| SUZUKI VITARA (LY) Construction Year from 201702 Fitting Position Front Axle | 2015-05 - | 86 | 117 | 1586 | SUV |
| SUZUKI VITARA (LY) Construction Year from 201702 Fitting Position Front Axle | 2015-02 - | 88 | 120 | 1586 | SUV |
| SUZUKI VITARA (LY) Construction Year from 201702 Fitting Position Front Axle | 2015-02 - | 88 | 120 | 1586 | SUV |
| SUZUKI VITARA (LY) Construction Year from 201702 Fitting Position Front Axle | 2015-02 - | 88 | 120 | 1598 | SUV |
| SUZUKI VITARA (LY) Construction Year from 201702 Fitting Position Front Axle | 2015-02 - | 88 | 120 | 1598 | SUV |
24.0122-0290.1
Fiche technique
- Statut de l’article
- Ordonnance
- Marque automobile
- Suzuki
- Numéro de trade
- 422290
- Pays d’origine
- Tchéquie
- Hauteur
- 47,0
- Diamètre extérieur [mm]
- 280,0
- Épaisseur du disque de frein [mm]
- 22,0
- Type à disque de frein
- Ventilé
- Surface
- Enduit
- Nombre de trous de boulons
- 5
- Diamètre du trou de boulon [mm]
- 114,3
- Diamètre de centrage [mm]
- 62,0
- Diamètre intérieur [mm]
- 146,3
- Diamètre du canon [mm]
- 12,7
- Épaisseur minimale [mm]
- 20,0
Références spécifiques
- EAN-13
- 4006633415699
- MPN
- 2401220290102
ATE 24.0122-0290.1
(240122-02901)
- Diamètre extérieur [mm] : 280,0
- Diamètre intérieur [mm] : 146,3
- Épaisseur du disque de frein [mm] : 22,0
- Nombre de trous de boulon : 5
- 2 pièces de disque de frein
- Numéro de commerce : 422290
