ATE Originale zweiteilige Bremsscheibe (24012202901) für Suzuki
98,01 €
(inkl. MwSt.)
81,00 € Steuerexzl.
Teilenummer:
ATE 24.0122-0290.1
(240122-02901)
- Außendurchmesser [mm]: 280,0
- Innendurchmesser [mm]: 146,3
- Bremsscheibendicke [mm]: 22,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 422290
Logistische Informationen:
- Ean-Code: 4006633415699
- Gewicht: 11.15kg
Specification of ATE 24.0122-0290.1 / 240122-02901 / 24012202901:
| OE Number | Reference info |
| SUZUKI 55311-61M00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 55311-61M10 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 55311-61M11 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| SUZUKI S-CROSS Fitting Position Front Axle | 2022-01 - | 95 | 129 | 1373 | SUV |
| SUZUKI S-CROSS Fitting Position Front Axle | 2022-01 - | 95 | 129 | 1373 | SUV |
| SUZUKI S-CROSS Fitting Position Front Axle | 2022-01 - | 85 | 116 | 1462 | SUV |
| SUZUKI S-CROSS Fitting Position Front Axle | 2022-01 - | 85 | 116 | 1462 | SUV |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2016-08 - 2022-06 | 82 | 111 | 998 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2016-08 - 2022-06 | 82 | 111 | 998 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2019-08 - 2022-06 | 95 | 129 | 1373 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2019-08 - 2022-06 | 95 | 129 | 1373 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2016-08 - 2022-06 | 103 | 140 | 1373 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2016-08 - 2022-06 | 103 | 140 | 1373 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2013-12 - 2022-06 | 86 | 117 | 1586 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2013-12 - 2022-06 | 86 | 117 | 1586 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2013-08 - 2022-06 | 88 | 120 | 1586 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2013-08 - 2022-06 | 88 | 120 | 1586 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2013-08 - 2022-06 | 88 | 120 | 1598 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2013-08 - 2022-06 | 88 | 120 | 1598 | Hatchback |
| SUZUKI VITARA (LY) Fitting Position Front Axle | 2018-10 - | 82 | 111 | 998 | SUV |
| SUZUKI VITARA (LY) Fitting Position Front Axle | 2018-10 - | 82 | 111 | 998 | SUV |
| SUZUKI VITARA (LY) Fitting Position Front Axle | 2019-07 - | 95 | 129 | 1373 | SUV |
| SUZUKI VITARA (LY) Fitting Position Front Axle | 2019-07 - | 95 | 129 | 1373 | SUV |
| SUZUKI VITARA (LY) Fitting Position Front Axle | 2023-08 - | 95 | 129 | 1373 | SUV |
| SUZUKI VITARA (LY) Construction Year from 201702 Fitting Position Front Axle | 2015-09 - 2020-07 | 103 | 140 | 1373 | SUV |
| SUZUKI VITARA (LY) Construction Year from 201702 Fitting Position Front Axle | 2015-09 - 2020-07 | 103 | 140 | 1373 | SUV |
| SUZUKI VITARA (LY) Fitting Position Front Axle | 2022-01 - | 85 | 116 | 1462 | SUV |
| SUZUKI VITARA (LY) Fitting Position Front Axle | 2022-01 - | 85 | 116 | 1462 | SUV |
| SUZUKI VITARA (LY) Fitting Position Front Axle | 2023-08 - | 85 | 116 | 1462 | SUV |
| SUZUKI VITARA (LY) Construction Year from 201702 Fitting Position Front Axle | 2015-05 - | 86 | 117 | 1586 | SUV |
| SUZUKI VITARA (LY) Construction Year from 201702 Fitting Position Front Axle | 2015-02 - | 88 | 120 | 1586 | SUV |
| SUZUKI VITARA (LY) Construction Year from 201702 Fitting Position Front Axle | 2015-02 - | 88 | 120 | 1586 | SUV |
| SUZUKI VITARA (LY) Construction Year from 201702 Fitting Position Front Axle | 2015-02 - | 88 | 120 | 1598 | SUV |
| SUZUKI VITARA (LY) Construction Year from 201702 Fitting Position Front Axle | 2015-02 - | 88 | 120 | 1598 | SUV |

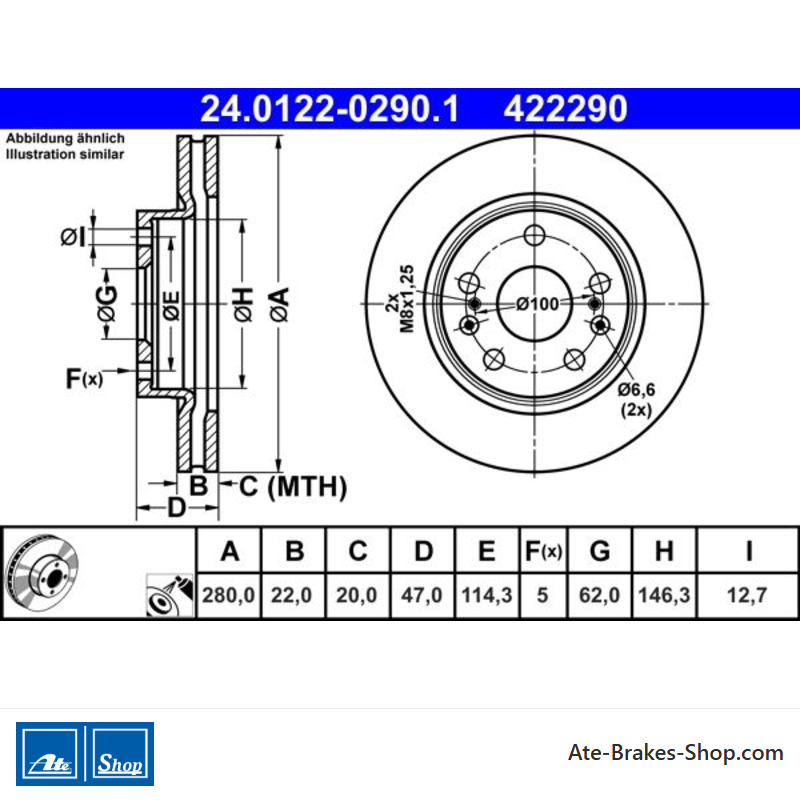

24.0122-0290.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Suzuki
- Handelsnummer
- 422290
- Herkunftsland
- Tschechien
- Höhe
- 47,0
- Außendurchmesser [mm]
- 280,0
- Bremsscheibendicke [mm]
- 22,0
- Bremsscheibentyp
- Entlüftet
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 114,3
- Zentrierungsdurchmesser [mm]
- 62,0
- Innendurchmesser [mm]
- 146,3
- Bohrdurchmesser [mm]
- 12,7
- Mindestdicke [mm]
- 20,0
Spezifische Referenzen
- ean13
- 4006633415699
- Hersteller-Teilenummer (MPN)
- 2401220290102
ATE 24.0122-0290.1
(240122-02901)
- Außendurchmesser [mm]: 280,0
- Innendurchmesser [mm]: 146,3
- Bremsscheibendicke [mm]: 22,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 422290
