ATE Disco de freno original de 2 piezas (24012202901) para Suzuki
98,01 €
(impuestos inc.)
81,00 € fiscales excl.
Número de parte:
ATE 24.0122-0290.1
(240122-02901)
- Diámetro exterior [mm]: 280,0
- Diámetro interior [mm]: 146,3
- Grosor del disco de freno [mm]: 22,0
- Número de agujeros de perno: 5
- 2 piezas de disco de freno
- Número comercial: 422290
Información logística:
- Código Ean: 4006633415699
- Peso: 11.15kg
Specification of ATE 24.0122-0290.1 / 240122-02901 / 24012202901:
| OE Number | Reference info |
| SUZUKI 55311-61M00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 55311-61M10 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 55311-61M11 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| SUZUKI S-CROSS Fitting Position Front Axle | 2022-01 - | 95 | 129 | 1373 | SUV |
| SUZUKI S-CROSS Fitting Position Front Axle | 2022-01 - | 95 | 129 | 1373 | SUV |
| SUZUKI S-CROSS Fitting Position Front Axle | 2022-01 - | 85 | 116 | 1462 | SUV |
| SUZUKI S-CROSS Fitting Position Front Axle | 2022-01 - | 85 | 116 | 1462 | SUV |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2016-08 - 2022-06 | 82 | 111 | 998 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2016-08 - 2022-06 | 82 | 111 | 998 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2019-08 - 2022-06 | 95 | 129 | 1373 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2019-08 - 2022-06 | 95 | 129 | 1373 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2016-08 - 2022-06 | 103 | 140 | 1373 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2016-08 - 2022-06 | 103 | 140 | 1373 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2013-12 - 2022-06 | 86 | 117 | 1586 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2013-12 - 2022-06 | 86 | 117 | 1586 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2013-08 - 2022-06 | 88 | 120 | 1586 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2013-08 - 2022-06 | 88 | 120 | 1586 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2013-08 - 2022-06 | 88 | 120 | 1598 | Hatchback |
| SUZUKI SX4 S-CROSS (JY) Fitting Position Front Axle | 2013-08 - 2022-06 | 88 | 120 | 1598 | Hatchback |
| SUZUKI VITARA (LY) Fitting Position Front Axle | 2018-10 - | 82 | 111 | 998 | SUV |
| SUZUKI VITARA (LY) Fitting Position Front Axle | 2018-10 - | 82 | 111 | 998 | SUV |
| SUZUKI VITARA (LY) Fitting Position Front Axle | 2019-07 - | 95 | 129 | 1373 | SUV |
| SUZUKI VITARA (LY) Fitting Position Front Axle | 2019-07 - | 95 | 129 | 1373 | SUV |
| SUZUKI VITARA (LY) Fitting Position Front Axle | 2023-08 - | 95 | 129 | 1373 | SUV |
| SUZUKI VITARA (LY) Construction Year from 201702 Fitting Position Front Axle | 2015-09 - 2020-07 | 103 | 140 | 1373 | SUV |
| SUZUKI VITARA (LY) Construction Year from 201702 Fitting Position Front Axle | 2015-09 - 2020-07 | 103 | 140 | 1373 | SUV |
| SUZUKI VITARA (LY) Fitting Position Front Axle | 2022-01 - | 85 | 116 | 1462 | SUV |
| SUZUKI VITARA (LY) Fitting Position Front Axle | 2022-01 - | 85 | 116 | 1462 | SUV |
| SUZUKI VITARA (LY) Fitting Position Front Axle | 2023-08 - | 85 | 116 | 1462 | SUV |
| SUZUKI VITARA (LY) Construction Year from 201702 Fitting Position Front Axle | 2015-05 - | 86 | 117 | 1586 | SUV |
| SUZUKI VITARA (LY) Construction Year from 201702 Fitting Position Front Axle | 2015-02 - | 88 | 120 | 1586 | SUV |
| SUZUKI VITARA (LY) Construction Year from 201702 Fitting Position Front Axle | 2015-02 - | 88 | 120 | 1586 | SUV |
| SUZUKI VITARA (LY) Construction Year from 201702 Fitting Position Front Axle | 2015-02 - | 88 | 120 | 1598 | SUV |
| SUZUKI VITARA (LY) Construction Year from 201702 Fitting Position Front Axle | 2015-02 - | 88 | 120 | 1598 | SUV |

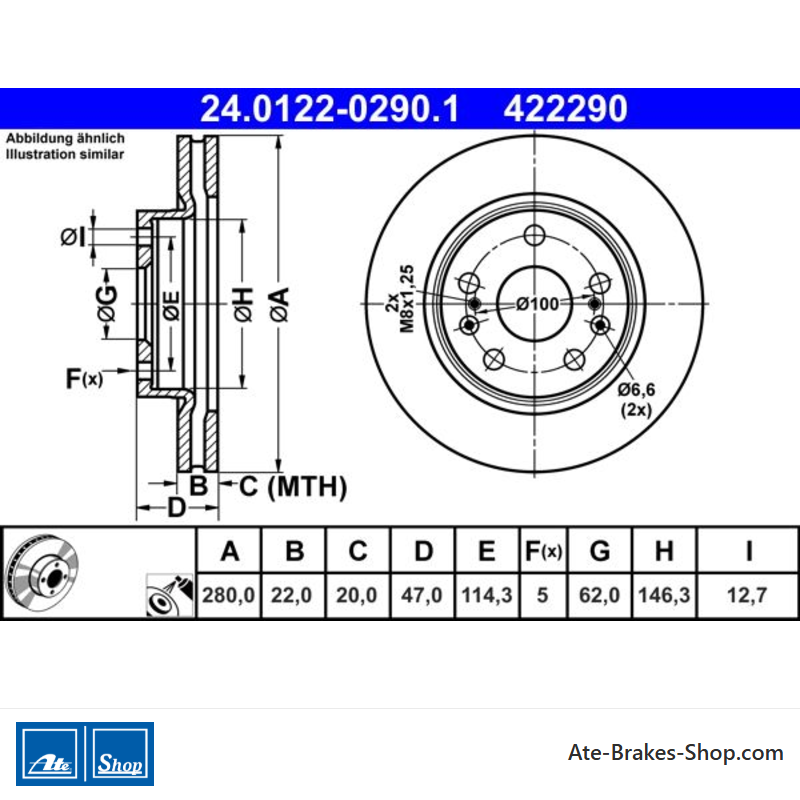

24.0122-0290.1
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Suzuki
- Número de Comercio
- 422290
- País de origen
- Chequia
- Altura
- 47,0
- Diámetro exterior [mm]
- 280,0
- Grosor del disco de freno [mm]
- 22,0
- Tipo de disco de freno
- Ventilado
- Superficie
- Revestido
- Número de agujeros para los tornillos
- 5
- Diámetro del agujero del perno [mm]
- 114,3
- Diámetro de centrado [mm]
- 62,0
- Diámetro interior [mm]
- 146,3
- Diámetro del diámetro del diámetro [mm]
- 12,7
- Espesor mínimo [mm]
- 20,0
Referencias específicas
- ean13
- 4006633415699
- MPN
- 2401220290102
ATE 24.0122-0290.1
(240122-02901)
- Diámetro exterior [mm]: 280,0
- Diámetro interior [mm]: 146,3
- Grosor del disco de freno [mm]: 22,0
- Número de agujeros de perno: 5
- 2 piezas de disco de freno
- Número comercial: 422290
