2 pieces of ATE original Brake Disk (24012401931) for Chrysler
€98.01
(tax incl.)
€81.00 tax excl.
Part-number:
ATE 24.0124-0193.1
(240124-01931)
- Outer Diameter [mm]: 282,5
- Inner Diameter [mm]: 144,0
- Brake Disc Thickness [mm]: 24,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 424193
Logistical information:
- Ean Code: 4006633246118
- Weight: 12.87kg
Specification of ATE 24.0124-0193.1 / 240124-01931 / 24012401931:
| OE Number | Reference info |
| CHRYSLER 4423 368 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 4423368 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 4509 340 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 4509340 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 0 4423 368 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 04423368 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 0 4509 340 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 04509340 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CHRYSLER VOYAGER II (ES) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1991-01 - 1995-09 | 72 | 98 | 2501 | MPV |
| CHRYSLER VOYAGER II (ES) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1990-08 - 1995-09 | 74 | 101 | 2501 | MPV |
| CHRYSLER VOYAGER II (ES) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1990-10 - 1995-09 | 104 | 141 | 2972 | MPV |
| CHRYSLER VOYAGER II (ES) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1991-01 - 1995-09 | 108 | 147 | 2972 | MPV |
| CHRYSLER VOYAGER II (ES) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1990-08 - 1995-09 | 110 | 150 | 3301 | MPV |
| CHRYSLER VOYAGER II (ES) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1990-08 - 1995-09 | 110 | 150 | 3301 | MPV |
| CHRYSLER VOYAGER II (ES) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1990-08 - 1995-09 | 120 | 163 | 3301 | MPV |
| CHRYSLER VOYAGER II (ES) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1990-08 - 1995-09 | 120 | 163 | 3301 | MPV |
| CHRYSLER VOYAGER II (ES) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1992-01 - 1995-09 | 85 | 116 | 2499 | MPV |
| CHRYSLER VOYAGER II (ES) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1992-01 - 1995-09 | 87 | 118 | 2500 | MPV |

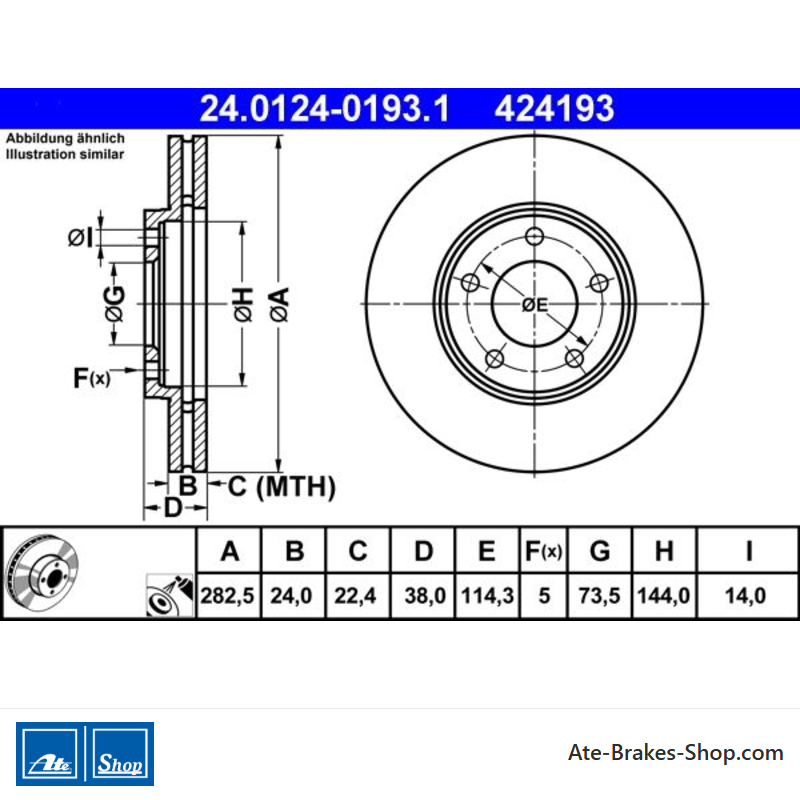

24.0124-0193.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Chrysler
- Trade Number
- 424193
- Country Of Origin
- QU
- Height
- 38,0
- Outer Diameter [mm]
- 282,5
- Brake Disc Thickness [mm]
- 24,0
- Brake Disc Type
- Vented
- Surface
- Coated
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 114,3
- Centering Diameter [mm]
- 73,5
- Inner Diameter [mm]
- 144,0
- Bore Diameter [mm]
- 14,0
- Minimum Thickness [mm]
- 22,4
Specific References
- EAN13
- 4006633246118
- MPN
- 2401240193102
ATE 24.0124-0193.1
(240124-01931)
- Outer Diameter [mm]: 282,5
- Inner Diameter [mm]: 144,0
- Brake Disc Thickness [mm]: 24,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 424193
