ATE Originale zweiteilige Bremsscheibe (24012401931) für Chrysler
98,01 €
(inkl. MwSt.)
81,00 € Steuerexzl.
Teilenummer:
ATE 24.0124-0193.1
(240124-01931)
- Außendurchmesser [mm]: 282,5
- Innendurchmesser [mm]: 144,0
- Bremsscheibendicke [mm]: 24,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 424193
Logistische Informationen:
- Ean-Code: 4006633246118
- Gewicht: 12.87kg
Specification of ATE 24.0124-0193.1 / 240124-01931 / 24012401931:
| OE Number | Reference info |
| CHRYSLER 4423 368 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 4423368 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 4509 340 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 4509340 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 0 4423 368 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 04423368 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 0 4509 340 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 04509340 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CHRYSLER VOYAGER II (ES) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1991-01 - 1995-09 | 72 | 98 | 2501 | MPV |
| CHRYSLER VOYAGER II (ES) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1990-08 - 1995-09 | 74 | 101 | 2501 | MPV |
| CHRYSLER VOYAGER II (ES) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1990-10 - 1995-09 | 104 | 141 | 2972 | MPV |
| CHRYSLER VOYAGER II (ES) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1991-01 - 1995-09 | 108 | 147 | 2972 | MPV |
| CHRYSLER VOYAGER II (ES) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1990-08 - 1995-09 | 110 | 150 | 3301 | MPV |
| CHRYSLER VOYAGER II (ES) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1990-08 - 1995-09 | 110 | 150 | 3301 | MPV |
| CHRYSLER VOYAGER II (ES) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1990-08 - 1995-09 | 120 | 163 | 3301 | MPV |
| CHRYSLER VOYAGER II (ES) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1990-08 - 1995-09 | 120 | 163 | 3301 | MPV |
| CHRYSLER VOYAGER II (ES) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1992-01 - 1995-09 | 85 | 116 | 2499 | MPV |
| CHRYSLER VOYAGER II (ES) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1992-01 - 1995-09 | 87 | 118 | 2500 | MPV |

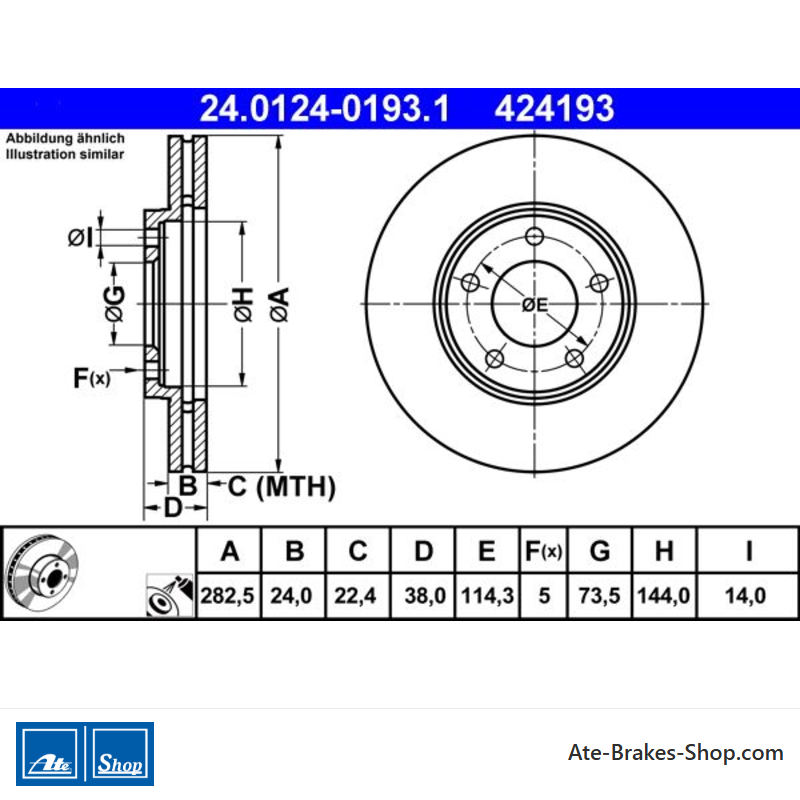

24.0124-0193.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Chrysler
- Handelsnummer
- 424193
- Herkunftsland
- QU
- Höhe
- 38,0
- Außendurchmesser [mm]
- 282,5
- Bremsscheibendicke [mm]
- 24,0
- Bremsscheibentyp
- Entlüftet
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 114,3
- Zentrierungsdurchmesser [mm]
- 73,5
- Innendurchmesser [mm]
- 144,0
- Bohrdurchmesser [mm]
- 14,0
- Mindestdicke [mm]
- 22,4
Spezifische Referenzen
- ean13
- 4006633246118
- Hersteller-Teilenummer (MPN)
- 2401240193102
ATE 24.0124-0193.1
(240124-01931)
- Außendurchmesser [mm]: 282,5
- Innendurchmesser [mm]: 144,0
- Bremsscheibendicke [mm]: 24,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile Bremsscheiben
- Handelsnummer: 424193
