ATE Originele 2-delige remschijf (24012401931) voor Chrysler
€ 98,01
(incl. btw)
€ 81,00 belastingexcl.
Onderdeelnummer:
ATE 24.0124-0193.1
(240124-01931)
- Buitendiameter [mm]: 282,5
- Binnendiameter [mm]: 144,0
- Remschijfdikte [mm]: 24,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 424193
Logistieke informatie:
- Ean Code: 4006633246118
- Gewicht: 12.87kg
Specification of ATE 24.0124-0193.1 / 240124-01931 / 24012401931:
| OE Number | Reference info |
| CHRYSLER 4423 368 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 4423368 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 4509 340 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 4509340 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 0 4423 368 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 04423368 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 0 4509 340 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 04509340 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CHRYSLER VOYAGER II (ES) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1991-01 - 1995-09 | 72 | 98 | 2501 | MPV |
| CHRYSLER VOYAGER II (ES) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1990-08 - 1995-09 | 74 | 101 | 2501 | MPV |
| CHRYSLER VOYAGER II (ES) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1990-10 - 1995-09 | 104 | 141 | 2972 | MPV |
| CHRYSLER VOYAGER II (ES) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1991-01 - 1995-09 | 108 | 147 | 2972 | MPV |
| CHRYSLER VOYAGER II (ES) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1990-08 - 1995-09 | 110 | 150 | 3301 | MPV |
| CHRYSLER VOYAGER II (ES) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1990-08 - 1995-09 | 110 | 150 | 3301 | MPV |
| CHRYSLER VOYAGER II (ES) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1990-08 - 1995-09 | 120 | 163 | 3301 | MPV |
| CHRYSLER VOYAGER II (ES) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1990-08 - 1995-09 | 120 | 163 | 3301 | MPV |
| CHRYSLER VOYAGER II (ES) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1992-01 - 1995-09 | 85 | 116 | 2499 | MPV |
| CHRYSLER VOYAGER II (ES) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1992-01 - 1995-09 | 87 | 118 | 2500 | MPV |
24.0124-0193.1

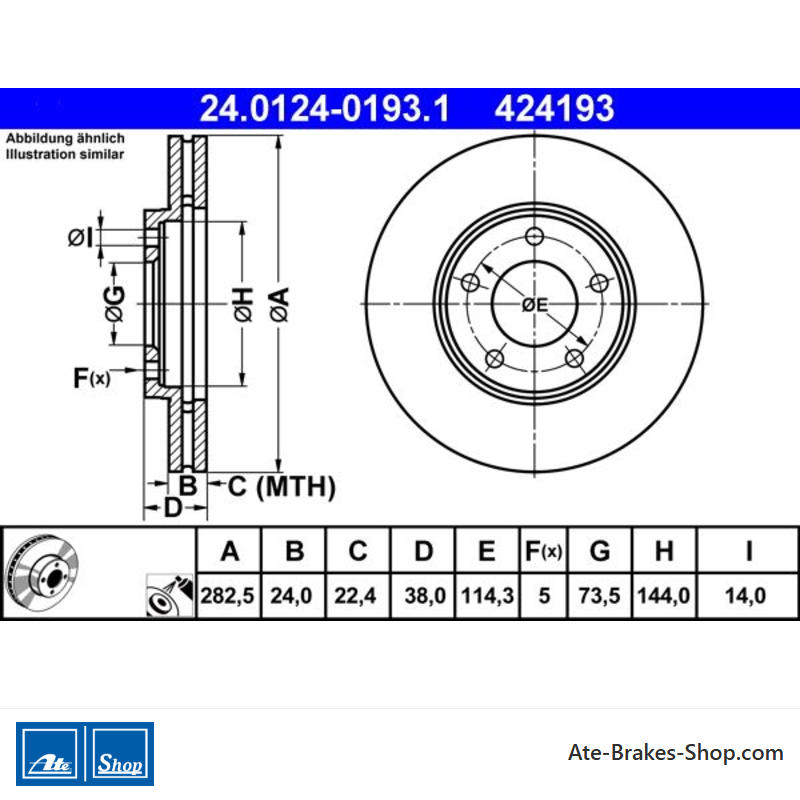

Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Chrysler
- Handelsnummer
- 424193
- Land van Herkomst
- QU
- Hoogte
- 38,0
- Buitendiameter [mm]
- 282,5
- Remschijfdikte [mm]
- 24,0
- Type remschijf
- Geventileerd
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 114,3
- Centreringsdiameter [mm]
- 73,5
- Binnendiameter [mm]
- 144,0
- Bordiameter [mm]
- 14,0
- Minimale dikte [mm]
- 22,4
Specifieke referenties
- ean13
- 4006633246118
- MPN
- 2401240193102
ATE 24.0124-0193.1
(240124-01931)
- Buitendiameter [mm]: 282,5
- Binnendiameter [mm]: 144,0
- Remschijfdikte [mm]: 24,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 424193
