ATE Disco de freno original de 2 piezas (24012401931) para Chrysler
98,01 €
(impuestos inc.)
81,00 € fiscales excl.
Número de parte:
ATE 24.0124-0193.1
(240124-01931)
- Diámetro exterior [mm]: 282,5
- Diámetro interior [mm]: 144,0
- Grosor del disco de freno [mm]: 24,0
- Número de agujeros de perno: 5
- 2 piezas de disco de freno
- Número de intercambio: 424193
Información logística:
- Código Ean: 4006633246118
- Peso: 12.87kg
Specification of ATE 24.0124-0193.1 / 240124-01931 / 24012401931:
| OE Number | Reference info |
| CHRYSLER 4423 368 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 4423368 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 4509 340 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 4509340 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 0 4423 368 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 04423368 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 0 4509 340 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 04509340 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CHRYSLER VOYAGER II (ES) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1991-01 - 1995-09 | 72 | 98 | 2501 | MPV |
| CHRYSLER VOYAGER II (ES) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1990-08 - 1995-09 | 74 | 101 | 2501 | MPV |
| CHRYSLER VOYAGER II (ES) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1990-10 - 1995-09 | 104 | 141 | 2972 | MPV |
| CHRYSLER VOYAGER II (ES) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1991-01 - 1995-09 | 108 | 147 | 2972 | MPV |
| CHRYSLER VOYAGER II (ES) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1990-08 - 1995-09 | 110 | 150 | 3301 | MPV |
| CHRYSLER VOYAGER II (ES) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1990-08 - 1995-09 | 110 | 150 | 3301 | MPV |
| CHRYSLER VOYAGER II (ES) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1990-08 - 1995-09 | 120 | 163 | 3301 | MPV |
| CHRYSLER VOYAGER II (ES) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1990-08 - 1995-09 | 120 | 163 | 3301 | MPV |
| CHRYSLER VOYAGER II (ES) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1992-01 - 1995-09 | 85 | 116 | 2499 | MPV |
| CHRYSLER VOYAGER II (ES) Fitting Position Front Axle Rim Size [inch] 15.0 Inch | 1992-01 - 1995-09 | 87 | 118 | 2500 | MPV |
24.0124-0193.1

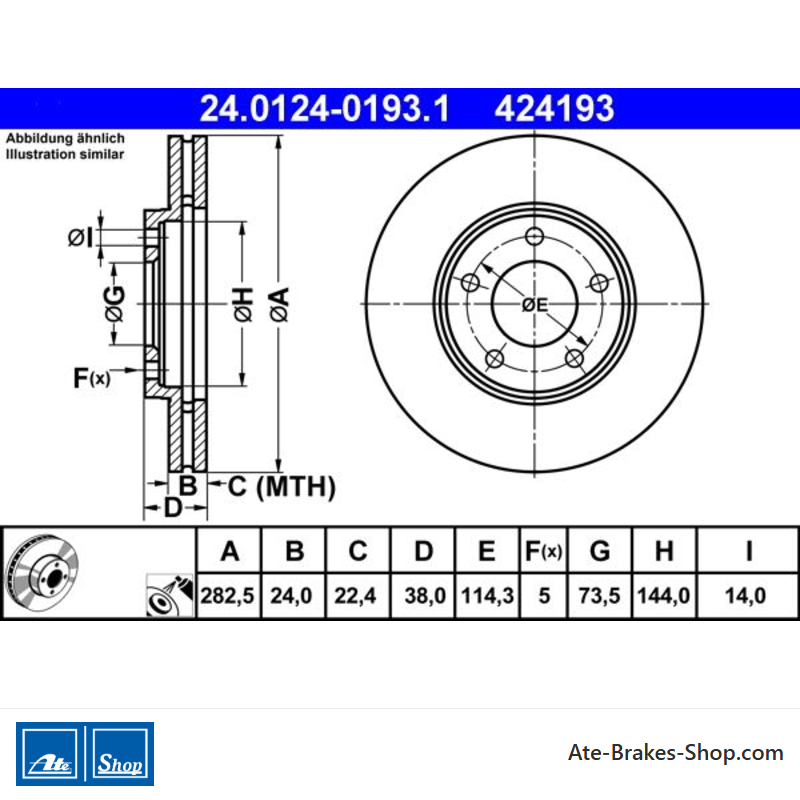

Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Chrysler
- Número de Comercio
- 424193
- País de origen
- QU
- Altura
- 38,0
- Diámetro exterior [mm]
- 282,5
- Grosor del disco de freno [mm]
- 24,0
- Tipo de disco de freno
- Ventilado
- Superficie
- Revestido
- Número de agujeros para los tornillos
- 5
- Diámetro del agujero del perno [mm]
- 114,3
- Diámetro de centrado [mm]
- 73,5
- Diámetro interior [mm]
- 144,0
- Diámetro del diámetro del diámetro [mm]
- 14,0
- Espesor mínimo [mm]
- 22,4
Referencias específicas
- ean13
- 4006633246118
- MPN
- 2401240193102
ATE 24.0124-0193.1
(240124-01931)
- Diámetro exterior [mm]: 282,5
- Diámetro interior [mm]: 144,0
- Grosor del disco de freno [mm]: 24,0
- Número de agujeros de perno: 5
- 2 piezas de disco de freno
- Número de intercambio: 424193
