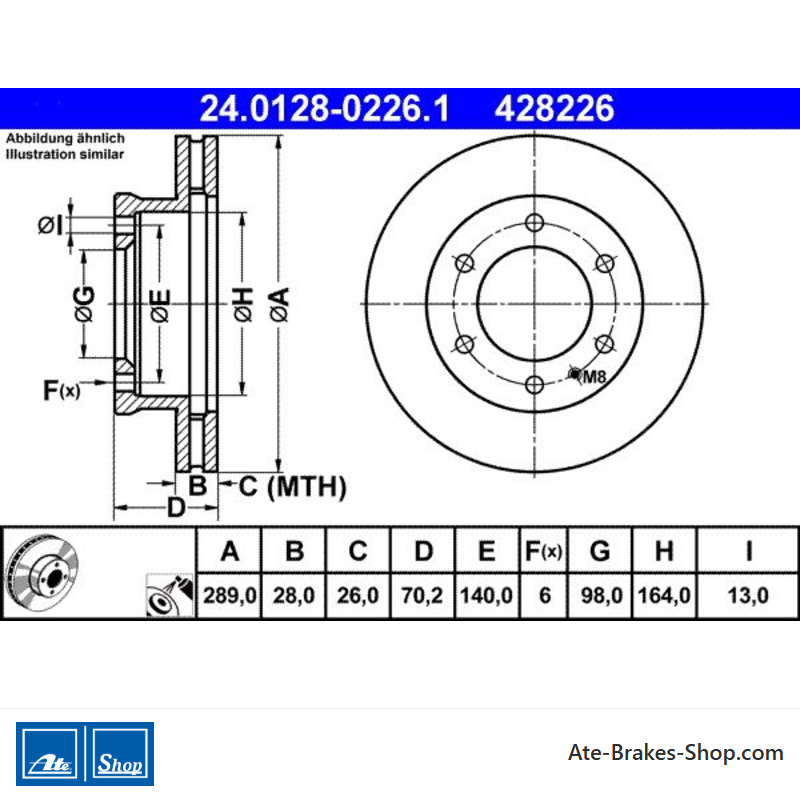

ATE Original Brake Disk (24012802261) for Ford, Mazda
€192.39
(tax incl.)
€159.00 tax excl.
Part-number:
ATE 24.0128-0226.1
(240128-02261)
- Outer Diameter [mm]: 289,0
- Inner Diameter [mm]: 164,0
- Brake Disc Thickness [mm]: 28,0
- Number of Bolt Holes: 6
- Trade Number: 428226
Logistical information:
- Ean Code: 4006633327541
- Weight: 9.19kg
Specification of ATE 24.0128-0226.1 / 240128-02261 / 24012802261:
| OE Number | Reference info |
| FORD 1490412 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 6M34-1027-DA | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA UM51-33-251 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA UR61-33-251 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FORD RANGER (ER, EQ, R_) Fitting Position Front Axle | 1999-10 - 2006-06 | 80 | 109 | 2500 | Pickup |
| FORD RANGER (ET) Fitting Position Front Axle Suspension for vehicles with increased ground clearance | 2006-05 - 2012-07 | 105 | 143 | 2499 | Pickup |
| FORD RANGER (ET) Fitting Position Front Axle | 2006-05 - 2012-07 | 105 | 143 | 2499 | Pickup |
| FORD RANGER (ET) Construction Year from 201004 Construction Year to 201110 Fitting Position Front Axle Suspension for vehicles with increased ground clearance | 2006-05 - 2012-07 | 115 | 156 | 2953 | Pickup |
| FORD RANGER (ET) Fitting Position Front Axle | 2006-05 - 2012-07 | 115 | 156 | 2953 | Pickup |
| MAZDA B-SERIE (UN) Construction Year to 200607 Fitting Position Front Axle | 2002-12 - 2006-11 | 62 | 84 | 2499 | Pickup |
| MAZDA B-SERIE (UN) Fitting Position Front Axle | 1999-06 - 2006-07 | 80 | 109 | 2499 | Pickup |
| MAZDA BT-50 Pickup (CD, UN) Construction Year to 201207 Fitting Position Front Axle | 2006-12 - 2015-12 | 105 | 143 | 2499 | Pickup |
24.0128-0226.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Ford
Mazda - Trade Number
- 428226
- Country Of Origin
- Italy
- Height
- 70,2
- Outer Diameter [mm]
- 289,0
- Brake Disc Thickness [mm]
- 28,0
- Brake Disc Type
- Vented
- Processing
- Alloyed/High-carbon
- Surface
- Coated
- Number of Bolt Holes
- 6
- Bolt Hole Diameter [mm]
- 140,0
- Centering Diameter [mm]
- 98,0
- Inner Diameter [mm]
- 164,0
- Bore Diameter [mm]
- 13,0
- Minimum Thickness [mm]
- 26,0
Specific References
- EAN13
- 4006633327541
- MPN
- 2401280226102
ATE 24.0128-0226.1
(240128-02261)
- Outer Diameter [mm]: 289,0
- Inner Diameter [mm]: 164,0
- Brake Disc Thickness [mm]: 28,0
- Number of Bolt Holes: 6
- Trade Number: 428226
