ATE Disco de freno original (24012802261) para Ford, Mazda
192,39 €
(impuestos inc.)
159,00 € fiscales excl.
Número de parte:
ATE 24.0128-0226.1
(240128-02261)
- Diámetro exterior [mm]: 289,0
- Diámetro interior [mm]: 164,0
- Grosor del disco de freno [mm]: 28,0
- Número de agujeros de perno: 6
- Número de intercambio: 428226
Información logística:
- Código Ean: 4006633327541
- Peso: 9.19kg

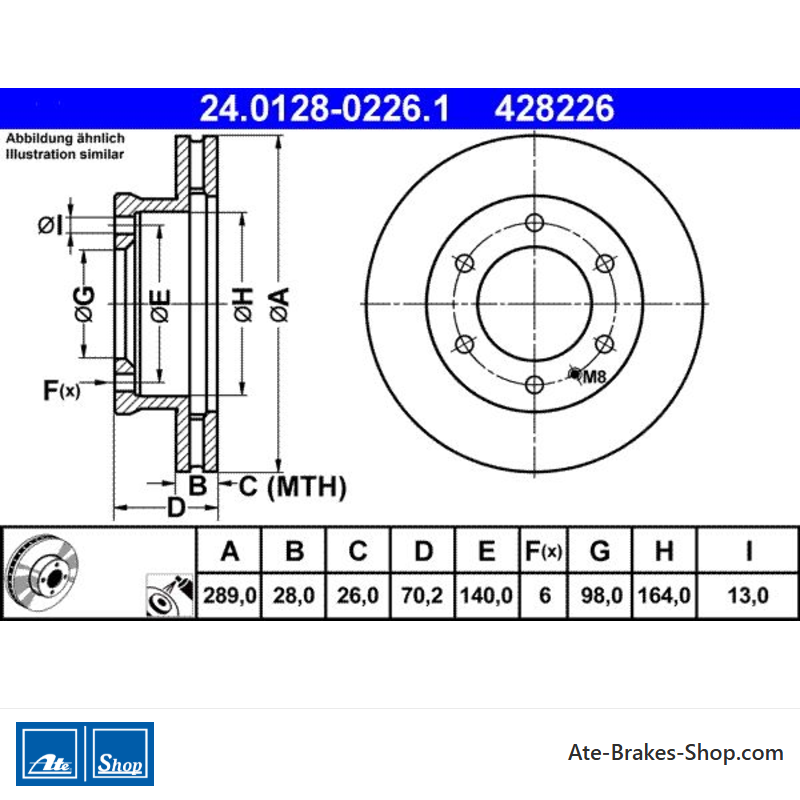

Specification of ATE 24.0128-0226.1 / 240128-02261 / 24012802261:
| OE Number | Reference info |
| FORD 1490412 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 6M34-1027-DA | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA UM51-33-251 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA UR61-33-251 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FORD RANGER (ER, EQ, R_) Fitting Position Front Axle | 1999-10 - 2006-06 | 80 | 109 | 2500 | Pickup |
| FORD RANGER (ET) Fitting Position Front Axle Suspension for vehicles with increased ground clearance | 2006-05 - 2012-07 | 105 | 143 | 2499 | Pickup |
| FORD RANGER (ET) Fitting Position Front Axle | 2006-05 - 2012-07 | 105 | 143 | 2499 | Pickup |
| FORD RANGER (ET) Construction Year from 201004 Construction Year to 201110 Fitting Position Front Axle Suspension for vehicles with increased ground clearance | 2006-05 - 2012-07 | 115 | 156 | 2953 | Pickup |
| FORD RANGER (ET) Fitting Position Front Axle | 2006-05 - 2012-07 | 115 | 156 | 2953 | Pickup |
| MAZDA B-SERIE (UN) Construction Year to 200607 Fitting Position Front Axle | 2002-12 - 2006-11 | 62 | 84 | 2499 | Pickup |
| MAZDA B-SERIE (UN) Fitting Position Front Axle | 1999-06 - 2006-07 | 80 | 109 | 2499 | Pickup |
| MAZDA BT-50 Pickup (CD, UN) Construction Year to 201207 Fitting Position Front Axle | 2006-12 - 2015-12 | 105 | 143 | 2499 | Pickup |
24.0128-0226.1
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Ford
Mazda - Número de Comercio
- 428226
- País de origen
- Italia
- Altura
- 70,2
- Diámetro exterior [mm]
- 289,0
- Grosor del disco de freno [mm]
- 28,0
- Tipo de disco de freno
- Ventilado
- Procesamiento
- Aleados/de alto contenido de carbono
- Superficie
- Revestido
- Número de agujeros para los tornillos
- 6
- Diámetro del agujero del perno [mm]
- 140,0
- Diámetro de centrado [mm]
- 98,0
- Diámetro interior [mm]
- 164,0
- Diámetro del diámetro del diámetro [mm]
- 13,0
- Espesor mínimo [mm]
- 26,0
Referencias específicas
- ean13
- 4006633327541
- MPN
- 2401280226102
ATE 24.0128-0226.1
(240128-02261)
- Diámetro exterior [mm]: 289,0
- Diámetro interior [mm]: 164,0
- Grosor del disco de freno [mm]: 28,0
- Número de agujeros de perno: 6
- Número de intercambio: 428226
