ATE Originale Bremsscheibe (24012802261) für Ford, Mazda
192,39 €
(inkl. MwSt.)
159,00 € Steuerexzl.
Teilenummer:
ATE 24.0128-0226.1
(240128-02261)
- Außendurchmesser [mm]: 289,0
- Innendurchmesser [mm]: 164,0
- Bremsscheibendicke [mm]: 28,0
- Anzahl der Bolzenlöcher: 6
- Handelsnummer: 428226
Logistische Informationen:
- Ean-Code: 4006633327541
- Gewicht: 9.19kg

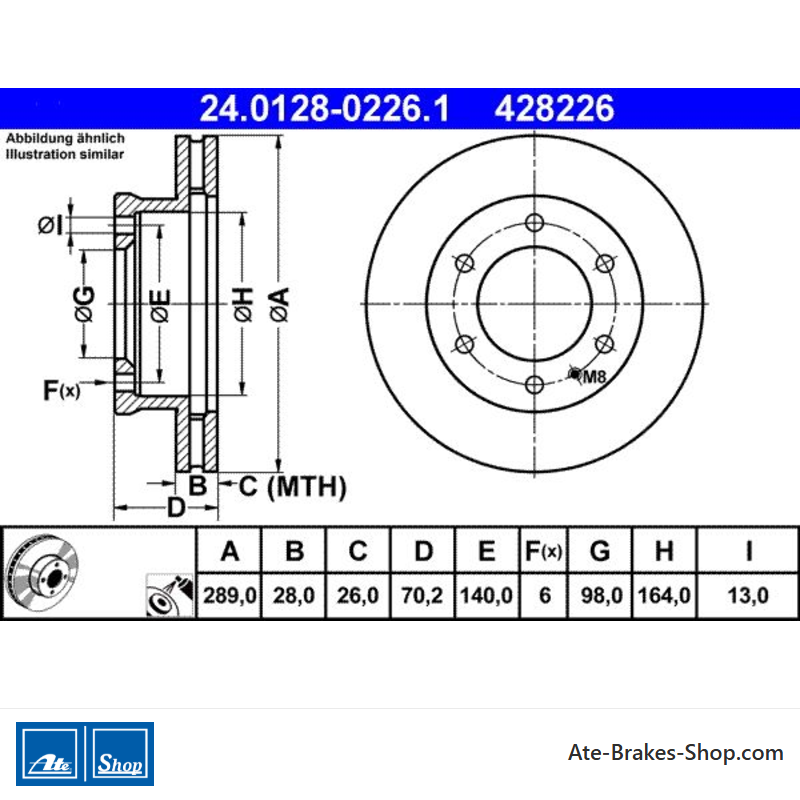

Specification of ATE 24.0128-0226.1 / 240128-02261 / 24012802261:
| OE Number | Reference info |
| FORD 1490412 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 6M34-1027-DA | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA UM51-33-251 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA UR61-33-251 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FORD RANGER (ER, EQ, R_) Fitting Position Front Axle | 1999-10 - 2006-06 | 80 | 109 | 2500 | Pickup |
| FORD RANGER (ET) Fitting Position Front Axle Suspension for vehicles with increased ground clearance | 2006-05 - 2012-07 | 105 | 143 | 2499 | Pickup |
| FORD RANGER (ET) Fitting Position Front Axle | 2006-05 - 2012-07 | 105 | 143 | 2499 | Pickup |
| FORD RANGER (ET) Construction Year from 201004 Construction Year to 201110 Fitting Position Front Axle Suspension for vehicles with increased ground clearance | 2006-05 - 2012-07 | 115 | 156 | 2953 | Pickup |
| FORD RANGER (ET) Fitting Position Front Axle | 2006-05 - 2012-07 | 115 | 156 | 2953 | Pickup |
| MAZDA B-SERIE (UN) Construction Year to 200607 Fitting Position Front Axle | 2002-12 - 2006-11 | 62 | 84 | 2499 | Pickup |
| MAZDA B-SERIE (UN) Fitting Position Front Axle | 1999-06 - 2006-07 | 80 | 109 | 2499 | Pickup |
| MAZDA BT-50 Pickup (CD, UN) Construction Year to 201207 Fitting Position Front Axle | 2006-12 - 2015-12 | 105 | 143 | 2499 | Pickup |
24.0128-0226.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Ford
Mazda - Handelsnummer
- 428226
- Herkunftsland
- Italien
- Höhe
- 70,2
- Außendurchmesser [mm]
- 289,0
- Bremsscheibendicke [mm]
- 28,0
- Bremsscheibentyp
- Entlüftet
- Verarbeitung
- Legierte/Hochkohlenstoff-Legierungen
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 6
- Bolzenlochdurchmesser [mm]
- 140,0
- Zentrierungsdurchmesser [mm]
- 98,0
- Innendurchmesser [mm]
- 164,0
- Bohrdurchmesser [mm]
- 13,0
- Mindestdicke [mm]
- 26,0
Spezifische Referenzen
- ean13
- 4006633327541
- Hersteller-Teilenummer (MPN)
- 2401280226102
ATE 24.0128-0226.1
(240128-02261)
- Außendurchmesser [mm]: 289,0
- Innendurchmesser [mm]: 164,0
- Bremsscheibendicke [mm]: 28,0
- Anzahl der Bolzenlöcher: 6
- Handelsnummer: 428226
