ATE Originele remschijf (24012802261) voor Ford, Mazda
€ 192,39
(incl. btw)
€ 159,00 belastingexcl.
Onderdeelnummer:
ATE 24.0128-0226.1
(240128-02261)
- Buitendiameter [mm]: 289,0
- Binnendiameter [mm]: 164,0
- Remschijfdikte [mm]: 28,0
- Aantal bolt holes: 6
- Handelsnummer: 428226
Logistieke informatie:
- Ean Code: 4006633327541
- Gewicht: 9.19kg
Specification of ATE 24.0128-0226.1 / 240128-02261 / 24012802261:
| OE Number | Reference info |
| FORD 1490412 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 6M34-1027-DA | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA UM51-33-251 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA UR61-33-251 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FORD RANGER (ER, EQ, R_) Fitting Position Front Axle | 1999-10 - 2006-06 | 80 | 109 | 2500 | Pickup |
| FORD RANGER (ET) Fitting Position Front Axle Suspension for vehicles with increased ground clearance | 2006-05 - 2012-07 | 105 | 143 | 2499 | Pickup |
| FORD RANGER (ET) Fitting Position Front Axle | 2006-05 - 2012-07 | 105 | 143 | 2499 | Pickup |
| FORD RANGER (ET) Construction Year from 201004 Construction Year to 201110 Fitting Position Front Axle Suspension for vehicles with increased ground clearance | 2006-05 - 2012-07 | 115 | 156 | 2953 | Pickup |
| FORD RANGER (ET) Fitting Position Front Axle | 2006-05 - 2012-07 | 115 | 156 | 2953 | Pickup |
| MAZDA B-SERIE (UN) Construction Year to 200607 Fitting Position Front Axle | 2002-12 - 2006-11 | 62 | 84 | 2499 | Pickup |
| MAZDA B-SERIE (UN) Fitting Position Front Axle | 1999-06 - 2006-07 | 80 | 109 | 2499 | Pickup |
| MAZDA BT-50 Pickup (CD, UN) Construction Year to 201207 Fitting Position Front Axle | 2006-12 - 2015-12 | 105 | 143 | 2499 | Pickup |
24.0128-0226.1

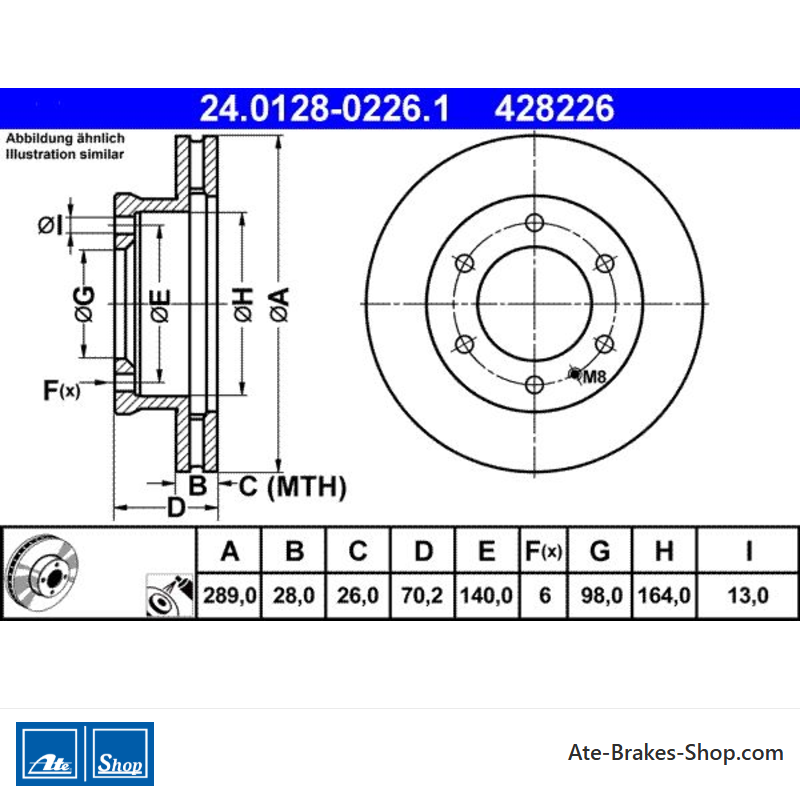

Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Ford
Mazda - Handelsnummer
- 428226
- Land van Herkomst
- Italië
- Hoogte
- 70,2
- Buitendiameter [mm]
- 289,0
- Remschijfdikte [mm]
- 28,0
- Type remschijf
- Geventileerd
- Verwerking
- Gelegeerd/Hoog-koolstof
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 6
- Diameter van het schroefgat [mm]
- 140,0
- Centreringsdiameter [mm]
- 98,0
- Binnendiameter [mm]
- 164,0
- Bordiameter [mm]
- 13,0
- Minimale dikte [mm]
- 26,0
Specifieke referenties
- ean13
- 4006633327541
- MPN
- 2401280226102
