ATE Tambour de frein original en deux pièces (24022520022) pour Volkswagen (VW)
94,38 €
TTC
78,00 € fiscalité ex.
Numéro de pièce :
ATE 24.0225-2002.2
(240225-20022)

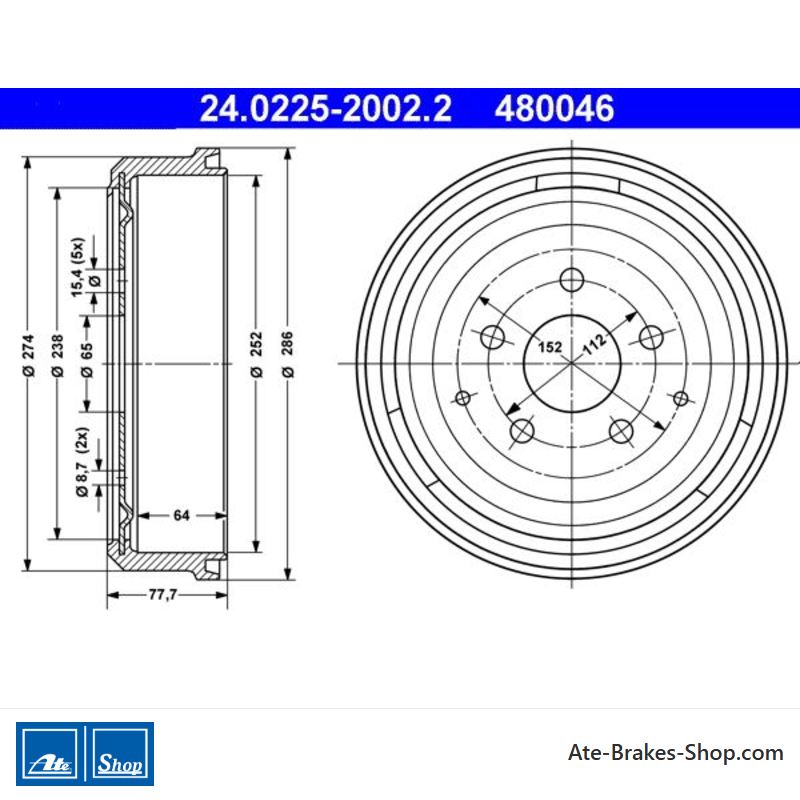

- Diamètre extérieur [mm] : 286,0
- Diamètre intérieur [mm] : 252,0
- Diamètre de la plaque de support [mm] : 65,0
- Nombre de trous de boulon : 5
- 2 pièces de tambour de frein
- Numéro d’échange : 480046
- Code Ean : 4006633057950
- Poids : 13.12kg
Specification of ATE 24.0225-2002.2 / 240225-20022 / 24022520022:
| OE Number | Reference info |
| VAG 251 609 615 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 251609615 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| VW TRANSPORTER T2 Van (21, 23) Construction Year from 197905 Fitting Position Rear Axle | 1970-08 - 1979-07 | 37 | 50 | 1584 | Van |
| VW TRANSPORTER T2 Van (21, 23) Construction Year from 197905 Fitting Position Rear Axle | 1976-08 - 1979-07 | 51 | 69 | 1970 | Van |
| VW TRANSPORTER T2 Platform/Chassis (21, 26) Construction Year from 197905 Fitting Position Rear Axle | 1968-08 - 1979-07 | 37 | 50 | 1584 | Platform/Chassis |
| VW TRANSPORTER T3 Van (24_, 25_) Construction Year from 197907 Fitting Position Rear Axle | 1979-05 - 1982-12 | 37 | 50 | 1584 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Fitting Position Rear Axle | 1982-10 - 1992-07 | 44 | 60 | 1913 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Fitting Position Rear Axle | 1982-10 - 1992-07 | 57 | 78 | 1913 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Fitting Position Rear Axle Rim Size [inch] 14.0 Inch | 1984-11 - 1992-07 | 57 | 78 | 1913 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Fitting Position Rear Axle | 1984-10 - 1989-02 | 61 | 83 | 1913 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Fitting Position Rear Axle | 1983-08 - 1989-02 | 66 | 90 | 1913 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Fitting Position Rear Axle | 1979-05 - 1986-04 | 51 | 69 | 1970 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Fitting Position Rear Axle | 1989-07 - 1992-07 | 68 | 92 | 2109 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Fitting Position Rear Axle | 1985-08 - 1992-07 | 70 | 95 | 2109 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Fitting Position Rear Axle Rim Size [inch] 14.0 Inch | 1985-08 - 1992-07 | 70 | 95 | 2109 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Fitting Position Rear Axle | 1986-03 - 1992-07 | 82 | 112 | 2109 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Fitting Position Rear Axle Rim Size [inch] 14.0 Inch | 1986-03 - 1992-07 | 82 | 112 | 2109 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Fitting Position Rear Axle | 1981-01 - 1987-07 | 37 | 50 | 1588 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Fitting Position Rear Axle | 1984-10 - 1992-07 | 51 | 69 | 1588 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Fitting Position Rear Axle Rim Size [inch] 14.0 Inch | 1986-03 - 1992-07 | 51 | 69 | 1588 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Fitting Position Rear Axle | 1984-08 - 1992-07 | 42 | 57 | 1715 | Van |
| VW TRANSPORTER T3 Bus (25_) Construction Year from 197907 Fitting Position Rear Axle | 1979-05 - 1982-12 | 37 | 50 | 1584 | Bus |
| VW TRANSPORTER T3 Bus (25_) Fitting Position Rear Axle | 1982-08 - 1992-07 | 44 | 60 | 1913 | Bus |
| VW TRANSPORTER T3 Bus (25_) Fitting Position Rear Axle | 1982-08 - 1992-07 | 57 | 78 | 1913 | Bus |
| VW TRANSPORTER T3 Bus (25_) Fitting Position Rear Axle Rim Size [inch] 14.0 Inch | 1985-02 - 1992-07 | 57 | 78 | 1913 | Bus |
| VW TRANSPORTER T3 Bus (25_) Fitting Position Rear Axle | 1983-01 - 1985-07 | 61 | 83 | 1913 | Bus |
| VW TRANSPORTER T3 Bus (25_) Fitting Position Rear Axle | 1983-08 - 1985-07 | 66 | 90 | 1913 | Bus |
| VW TRANSPORTER T3 Bus (25_) Fitting Position Rear Axle | 1979-05 - 1982-12 | 51 | 70 | 1970 | Bus |
| VW TRANSPORTER T3 Bus (25_) Fitting Position Rear Axle | 1989-07 - 1992-07 | 68 | 92 | 2109 | Bus |
| VW TRANSPORTER T3 Bus (25_) Fitting Position Rear Axle | 1989-06 - 1992-07 | 70 | 95 | 2109 | Bus |
| VW TRANSPORTER T3 Bus (25_) Fitting Position Rear Axle | 1985-08 - 1992-07 | 70 | 95 | 2109 | Bus |
| VW TRANSPORTER T3 Bus (25_) Fitting Position Rear Axle Rim Size [inch] 14.0 Inch | 1985-08 - 1992-07 | 70 | 95 | 2109 | Bus |
| VW TRANSPORTER T3 Bus (25_) Construction Year from 198508 Fitting Position Rear Axle | 1984-08 - 1992-07 | 82 | 112 | 2109 | Bus |
| VW TRANSPORTER T3 Bus (25_) Fitting Position Rear Axle Rim Size [inch] 14.0 Inch | 1986-01 - 1992-07 | 82 | 112 | 2109 | Bus |
| VW TRANSPORTER T3 Bus (25_) Fitting Position Rear Axle | 1981-01 - 1987-07 | 37 | 50 | 1588 | Bus |
| VW TRANSPORTER T3 Bus (25_) Fitting Position Rear Axle | 1984-08 - 1992-07 | 51 | 70 | 1588 | Bus |
| VW TRANSPORTER T3 Bus (25_) Fitting Position Rear Axle Rim Size [inch] 14.0 Inch | 1986-03 - 1992-07 | 51 | 70 | 1588 | Bus |
| VW TRANSPORTER T3 Bus (25_) Fitting Position Rear Axle | 1986-10 - 1992-07 | 42 | 57 | 1716 | Bus |
| VW TRANSPORTER T3 Platform/Chassis (24_) Fitting Position Rear Axle | 1982-09 - 1992-07 | 44 | 60 | 1913 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Fitting Position Rear Axle | 1982-08 - 1992-07 | 57 | 78 | 1913 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Fitting Position Rear Axle Rim Size [inch] 14.0 Inch | 1984-12 - 1992-07 | 57 | 78 | 1913 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Fitting Position Rear Axle | 1984-10 - 1989-02 | 61 | 83 | 1913 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Fitting Position Rear Axle | 1979-05 - 1986-04 | 51 | 69 | 1970 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Fitting Position Rear Axle | 1989-07 - 1992-07 | 68 | 92 | 2109 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Fitting Position Rear Axle | 1985-08 - 1992-07 | 70 | 95 | 2109 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Fitting Position Rear Axle Rim Size [inch] 14.0 Inch | 1985-08 - 1992-07 | 70 | 95 | 2109 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Fitting Position Rear Axle | 1986-03 - 1992-07 | 82 | 112 | 2109 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Fitting Position Rear Axle Rim Size [inch] 14.0 Inch | 1986-03 - 1992-07 | 82 | 112 | 2109 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Fitting Position Rear Axle | 1981-01 - 1987-07 | 37 | 50 | 1588 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Fitting Position Rear Axle | 1984-10 - 1992-07 | 51 | 70 | 1588 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Fitting Position Rear Axle Rim Size [inch] 14.0 Inch | 1986-03 - 1992-07 | 51 | 69 | 1588 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Fitting Position Rear Axle | 1985-08 - 1992-07 | 42 | 57 | 1715 | Platform/Chassis |
24.0225-2002.2
Fiche technique
- Statut de l’article
- Ordonnance
- Marque automobile
- Volkswagen (VW)
- Numéro de trade
- 480046
- Pays d’origine
- Chine
- Hauteur
- 77,7
- Diamètre extérieur [mm]
- 286,0
- Nombre de trous de boulons
- 5
- Diamètre du trou de boulon [mm]
- 112,0
- Diamètre de la plaque de support [mm]
- 65,0
- Diamètre intérieur [mm]
- 252,0
- Diamètre du canon [mm]
- 15,4
- Max. Dimension de réalésage [mm]
- 253,5
- Hauteur intérieure du tambour de frein [mm]
- 64,0
Références spécifiques
- EAN-13
- 4006633057950
- MPN
- 2402252002202
ATE 24.0225-2002.2
(240225-20022)
- Diamètre extérieur [mm] : 286,0
- Diamètre intérieur [mm] : 252,0
- Diamètre de la plaque de support [mm] : 65,0
- Nombre de trous de boulon : 5
- 2 pièces de tambour de frein
- Numéro d’échange : 480046
