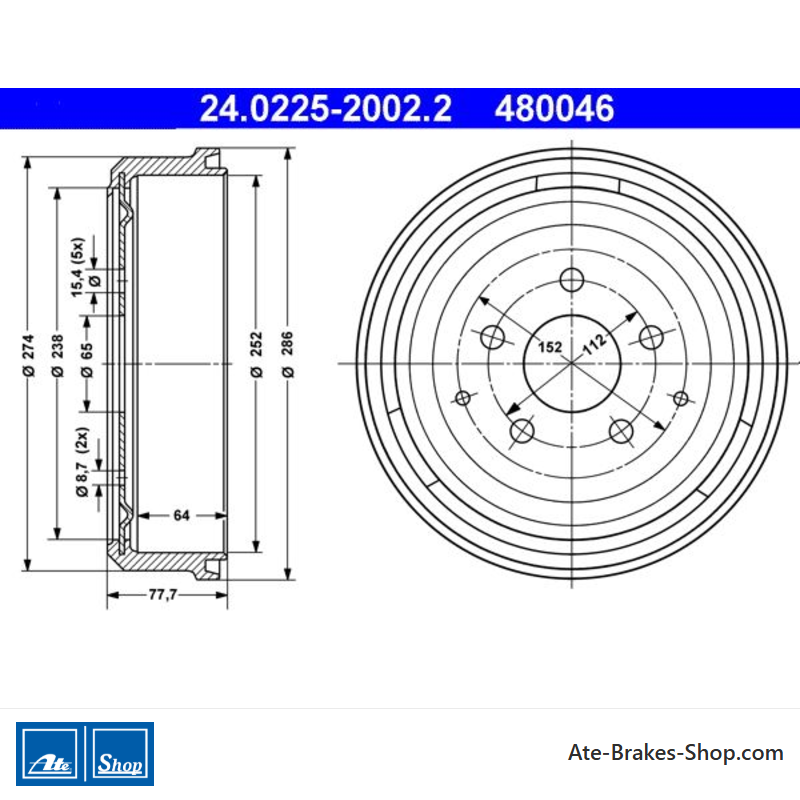

ATE Tambor de freno original de 2 piezas (24022520022) para Volkswagen (VW)
94,38 €
(impuestos inc.)
78,00 € fiscales excl.
Número de parte:
ATE 24.0225-2002.2
(240225-20022)
- Diámetro exterior [mm]: 286,0
- Diámetro interior [mm]: 252,0
- Diámetro de la placa de soporte [mm]: 65,0
- Número de agujeros de perno: 5
- 2 piezas de tambor de freno
- Número de intercambio: 480046
- Código Ean: 4006633057950
- Peso: 13.12kg
Specification of ATE 24.0225-2002.2 / 240225-20022 / 24022520022:
| OE Number | Reference info |
| VAG 251 609 615 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 251609615 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| VW TRANSPORTER T2 Van (21, 23) Construction Year from 197905 Fitting Position Rear Axle | 1970-08 - 1979-07 | 37 | 50 | 1584 | Van |
| VW TRANSPORTER T2 Van (21, 23) Construction Year from 197905 Fitting Position Rear Axle | 1976-08 - 1979-07 | 51 | 69 | 1970 | Van |
| VW TRANSPORTER T2 Platform/Chassis (21, 26) Construction Year from 197905 Fitting Position Rear Axle | 1968-08 - 1979-07 | 37 | 50 | 1584 | Platform/Chassis |
| VW TRANSPORTER T3 Van (24_, 25_) Construction Year from 197907 Fitting Position Rear Axle | 1979-05 - 1982-12 | 37 | 50 | 1584 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Fitting Position Rear Axle | 1982-10 - 1992-07 | 44 | 60 | 1913 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Fitting Position Rear Axle | 1982-10 - 1992-07 | 57 | 78 | 1913 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Fitting Position Rear Axle Rim Size [inch] 14.0 Inch | 1984-11 - 1992-07 | 57 | 78 | 1913 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Fitting Position Rear Axle | 1984-10 - 1989-02 | 61 | 83 | 1913 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Fitting Position Rear Axle | 1983-08 - 1989-02 | 66 | 90 | 1913 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Fitting Position Rear Axle | 1979-05 - 1986-04 | 51 | 69 | 1970 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Fitting Position Rear Axle | 1989-07 - 1992-07 | 68 | 92 | 2109 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Fitting Position Rear Axle | 1985-08 - 1992-07 | 70 | 95 | 2109 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Fitting Position Rear Axle Rim Size [inch] 14.0 Inch | 1985-08 - 1992-07 | 70 | 95 | 2109 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Fitting Position Rear Axle | 1986-03 - 1992-07 | 82 | 112 | 2109 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Fitting Position Rear Axle Rim Size [inch] 14.0 Inch | 1986-03 - 1992-07 | 82 | 112 | 2109 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Fitting Position Rear Axle | 1981-01 - 1987-07 | 37 | 50 | 1588 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Fitting Position Rear Axle | 1984-10 - 1992-07 | 51 | 69 | 1588 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Fitting Position Rear Axle Rim Size [inch] 14.0 Inch | 1986-03 - 1992-07 | 51 | 69 | 1588 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Fitting Position Rear Axle | 1984-08 - 1992-07 | 42 | 57 | 1715 | Van |
| VW TRANSPORTER T3 Bus (25_) Construction Year from 197907 Fitting Position Rear Axle | 1979-05 - 1982-12 | 37 | 50 | 1584 | Bus |
| VW TRANSPORTER T3 Bus (25_) Fitting Position Rear Axle | 1982-08 - 1992-07 | 44 | 60 | 1913 | Bus |
| VW TRANSPORTER T3 Bus (25_) Fitting Position Rear Axle | 1982-08 - 1992-07 | 57 | 78 | 1913 | Bus |
| VW TRANSPORTER T3 Bus (25_) Fitting Position Rear Axle Rim Size [inch] 14.0 Inch | 1985-02 - 1992-07 | 57 | 78 | 1913 | Bus |
| VW TRANSPORTER T3 Bus (25_) Fitting Position Rear Axle | 1983-01 - 1985-07 | 61 | 83 | 1913 | Bus |
| VW TRANSPORTER T3 Bus (25_) Fitting Position Rear Axle | 1983-08 - 1985-07 | 66 | 90 | 1913 | Bus |
| VW TRANSPORTER T3 Bus (25_) Fitting Position Rear Axle | 1979-05 - 1982-12 | 51 | 70 | 1970 | Bus |
| VW TRANSPORTER T3 Bus (25_) Fitting Position Rear Axle | 1989-07 - 1992-07 | 68 | 92 | 2109 | Bus |
| VW TRANSPORTER T3 Bus (25_) Fitting Position Rear Axle | 1989-06 - 1992-07 | 70 | 95 | 2109 | Bus |
| VW TRANSPORTER T3 Bus (25_) Fitting Position Rear Axle | 1985-08 - 1992-07 | 70 | 95 | 2109 | Bus |
| VW TRANSPORTER T3 Bus (25_) Fitting Position Rear Axle Rim Size [inch] 14.0 Inch | 1985-08 - 1992-07 | 70 | 95 | 2109 | Bus |
| VW TRANSPORTER T3 Bus (25_) Construction Year from 198508 Fitting Position Rear Axle | 1984-08 - 1992-07 | 82 | 112 | 2109 | Bus |
| VW TRANSPORTER T3 Bus (25_) Fitting Position Rear Axle Rim Size [inch] 14.0 Inch | 1986-01 - 1992-07 | 82 | 112 | 2109 | Bus |
| VW TRANSPORTER T3 Bus (25_) Fitting Position Rear Axle | 1981-01 - 1987-07 | 37 | 50 | 1588 | Bus |
| VW TRANSPORTER T3 Bus (25_) Fitting Position Rear Axle | 1984-08 - 1992-07 | 51 | 70 | 1588 | Bus |
| VW TRANSPORTER T3 Bus (25_) Fitting Position Rear Axle Rim Size [inch] 14.0 Inch | 1986-03 - 1992-07 | 51 | 70 | 1588 | Bus |
| VW TRANSPORTER T3 Bus (25_) Fitting Position Rear Axle | 1986-10 - 1992-07 | 42 | 57 | 1716 | Bus |
| VW TRANSPORTER T3 Platform/Chassis (24_) Fitting Position Rear Axle | 1982-09 - 1992-07 | 44 | 60 | 1913 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Fitting Position Rear Axle | 1982-08 - 1992-07 | 57 | 78 | 1913 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Fitting Position Rear Axle Rim Size [inch] 14.0 Inch | 1984-12 - 1992-07 | 57 | 78 | 1913 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Fitting Position Rear Axle | 1984-10 - 1989-02 | 61 | 83 | 1913 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Fitting Position Rear Axle | 1979-05 - 1986-04 | 51 | 69 | 1970 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Fitting Position Rear Axle | 1989-07 - 1992-07 | 68 | 92 | 2109 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Fitting Position Rear Axle | 1985-08 - 1992-07 | 70 | 95 | 2109 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Fitting Position Rear Axle Rim Size [inch] 14.0 Inch | 1985-08 - 1992-07 | 70 | 95 | 2109 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Fitting Position Rear Axle | 1986-03 - 1992-07 | 82 | 112 | 2109 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Fitting Position Rear Axle Rim Size [inch] 14.0 Inch | 1986-03 - 1992-07 | 82 | 112 | 2109 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Fitting Position Rear Axle | 1981-01 - 1987-07 | 37 | 50 | 1588 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Fitting Position Rear Axle | 1984-10 - 1992-07 | 51 | 70 | 1588 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Fitting Position Rear Axle Rim Size [inch] 14.0 Inch | 1986-03 - 1992-07 | 51 | 69 | 1588 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Fitting Position Rear Axle | 1985-08 - 1992-07 | 42 | 57 | 1715 | Platform/Chassis |
24.0225-2002.2
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Volkswagen (VW)
- Número de Comercio
- 480046
- País de origen
- China
- Altura
- 77,7
- Diámetro exterior [mm]
- 286,0
- Número de agujeros para los tornillos
- 5
- Diámetro del agujero del perno [mm]
- 112,0
- Diámetro de la placa de soporte [mm]
- 65,0
- Diámetro interior [mm]
- 252,0
- Diámetro del diámetro del diámetro [mm]
- 15,4
- Max. Dimensión de perforación [mm]
- 253,5
- Altura interior del tambor de freno [mm]
- 64,0
Referencias específicas
- ean13
- 4006633057950
- MPN
- 2402252002202
ATE 24.0225-2002.2
(240225-20022)
- Diámetro exterior [mm]: 286,0
- Diámetro interior [mm]: 252,0
- Diámetro de la placa de soporte [mm]: 65,0
- Número de agujeros de perno: 5
- 2 piezas de tambor de freno
- Número de intercambio: 480046
