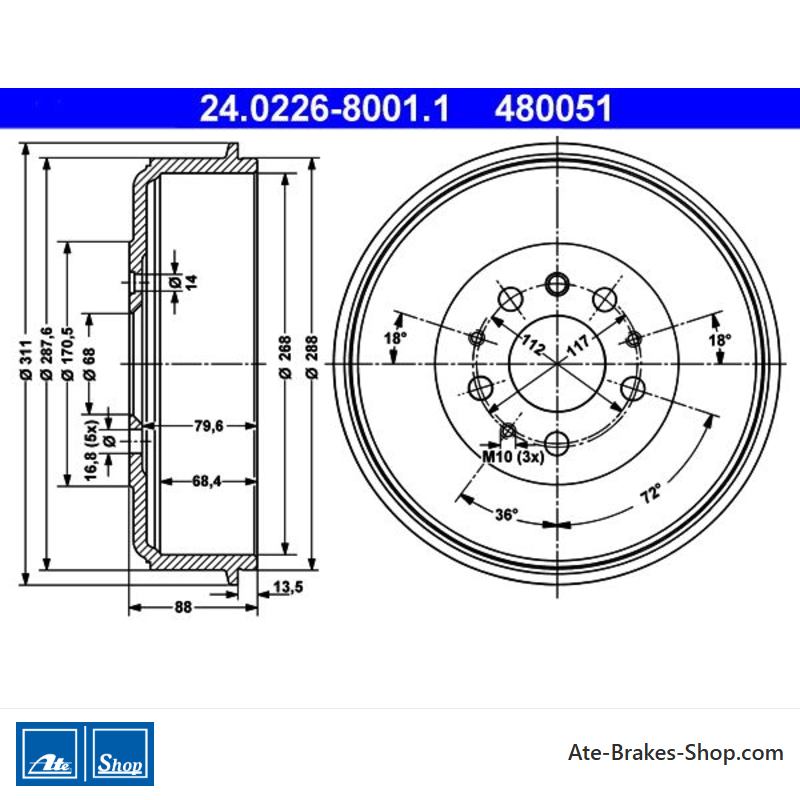

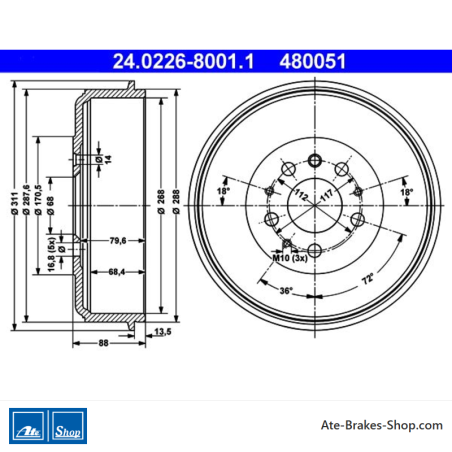

ATE Caisson de frein original en 2 pièces (24022680011) pour Volkswagen (VW)
159,72 €
TTC
132,00 € fiscalité ex.
Numéro de pièce :
ATE 24.0226-8001.1
(240226-80011)
- Diamètre extérieur [mm] : 288,0
- Diamètre intérieur [mm] : 268,0
- Diamètre de la plaque de support [mm] : 68,4
- Nombre de trous de boulon : 5
- 2 pièces de tambour de frein
- Numéro de l’échange : 480051
- Code Ean : 4006633144674
- Poids : 18.74kg
Specification of ATE 24.0226-8001.1 / 240226-80011 / 24022680011:
| OE Number | Reference info |
| VAG 701 609 617 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 701609617 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1990-07 - 2003-04 | 62 | 84 | 1968 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1990-11 - 2003-04 | 81 | 110 | 2461 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1992-11 - 2001-11 | 81 | 110 | 2461 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1996-08 - 2003-04 | 85 | 115 | 2461 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1996-08 - 2003-04 | 85 | 115 | 2461 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1990-09 - 1995-12 | 44 | 60 | 1896 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1990-07 - 1995-12 | 45 | 61 | 1896 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1992-10 - 2003-04 | 50 | 68 | 1896 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1997-08 - 2003-04 | 55 | 75 | 2370 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1990-07 - 1998-04 | 57 | 78 | 2370 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Construction Year from 199211 Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1992-10 - 1998-09 | 57 | 78 | 2370 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1998-12 - 2003-04 | 65 | 88 | 2461 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1995-09 - 2003-04 | 75 | 102 | 2461 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1995-09 - 2003-04 | 75 | 102 | 2461 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 2000-09 - 2003-04 | 111 | 151 | 2461 | Van |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Fitting Position Rear Axle | 1990-12 - 1992-07 | 49 | 67 | 1781 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1990-09 - 2003-04 | 62 | 84 | 1968 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1990-09 - 2003-06 | 81 | 110 | 2461 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1992-08 - 2003-04 | 81 | 110 | 2461 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1996-08 - 2003-04 | 85 | 115 | 2461 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1996-07 - 2003-04 | 85 | 115 | 2461 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1990-09 - 1995-12 | 44 | 60 | 1896 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1992-10 - 2003-04 | 50 | 68 | 1896 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1997-08 - 2003-04 | 55 | 75 | 2370 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1990-09 - 1998-04 | 57 | 78 | 2370 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Construction Year from 199211 Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1992-10 - 1998-09 | 57 | 78 | 2370 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1998-05 - 2003-04 | 65 | 88 | 2461 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1995-09 - 2003-04 | 75 | 102 | 2461 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1996-01 - 2003-04 | 75 | 102 | 2461 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1998-05 - 2003-04 | 111 | 151 | 2461 | Bus |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1990-07 - 2003-04 | 62 | 84 | 1968 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1990-11 - 2003-04 | 81 | 110 | 2461 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1992-11 - 2001-11 | 81 | 110 | 2461 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1996-08 - 2003-04 | 85 | 115 | 2461 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1996-08 - 2003-04 | 85 | 115 | 2461 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1990-09 - 1995-12 | 44 | 60 | 1896 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1990-07 - 1995-12 | 45 | 61 | 1896 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1992-10 - 2003-04 | 50 | 68 | 1896 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1997-08 - 2003-04 | 55 | 75 | 2370 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1990-09 - 1998-04 | 57 | 78 | 2370 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Construction Year from 199211 Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1992-10 - 1998-09 | 57 | 78 | 2370 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1998-05 - 2003-04 | 65 | 88 | 2461 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1995-09 - 2003-04 | 75 | 102 | 2461 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1998-05 - 2003-04 | 75 | 102 | 2461 | Platform/Chassis |
24.0226-8001.1
Fiche technique
- Statut de l’article
- Ordonnance
- Marque automobile
- Volkswagen (VW)
- Numéro de trade
- 480051
- Pays d’origine
- Chine
- Hauteur
- 88,0
- Diamètre extérieur [mm]
- 288,0
- Nombre de trous de boulons
- 5
- Diamètre du trou de boulon [mm]
- 112,0
- Diamètre de la plaque de support [mm]
- 68,4
- Diamètre intérieur [mm]
- 268,0
- Diamètre du canon [mm]
- 16,8
- Max. Dimension de réalésage [mm]
- 269,5
- Hauteur intérieure du tambour de frein [mm]
- 68,4
Références spécifiques
- EAN-13
- 4006633144674
- MPN
- 2402268001102
ATE 24.0226-8001.1
(240226-80011)
- Diamètre extérieur [mm] : 288,0
- Diamètre intérieur [mm] : 268,0
- Diamètre de la plaque de support [mm] : 68,4
- Nombre de trous de boulon : 5
- 2 pièces de tambour de frein
- Numéro de l’échange : 480051
