ATE Originele 2-delige remtrommel (24022680011) voor Volkswagen (VW)
€ 159,72
(incl. btw)
€ 132,00 belastingexcl.
Onderdeelnummer:
ATE 24.0226-8001.1
(240226-80011)

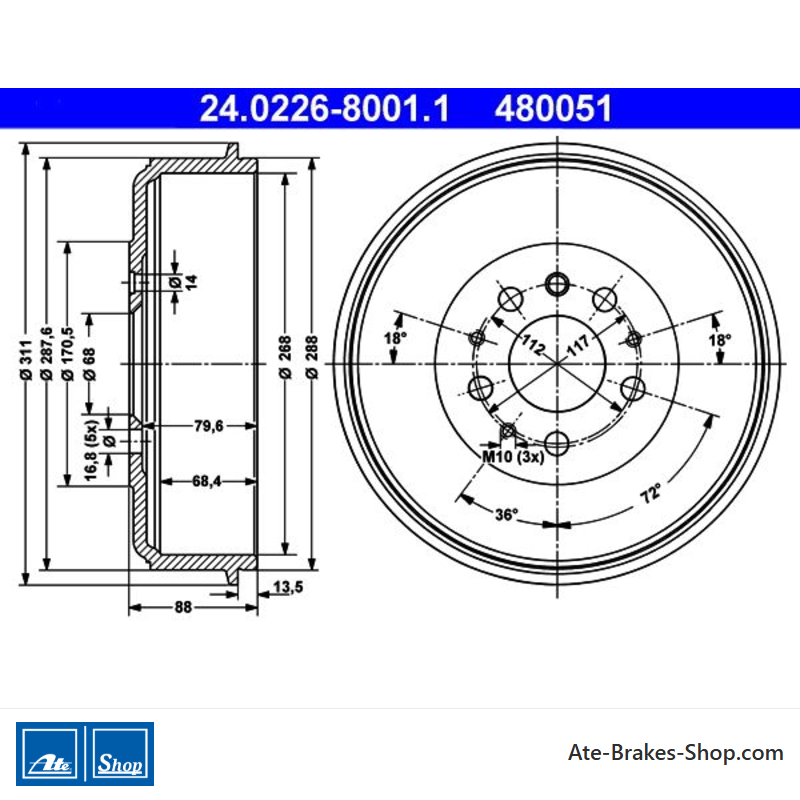

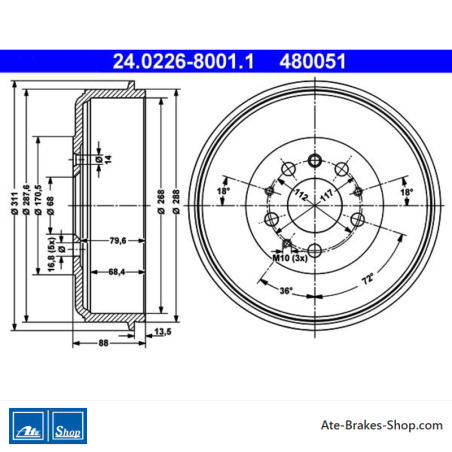

- Buitendiameter [mm]: 288,0
- Binnendiameter [mm]: 268,0
- Draagplaat diameter [mm]: 68,4
- Aantal bolt holes: 5
- 2 Stukken Remtrommel
- Handelsnummer: 480051
- Ean Code: 4006633144674
- Gewicht: 18.74kg
Specification of ATE 24.0226-8001.1 / 240226-80011 / 24022680011:
| OE Number | Reference info |
| VAG 701 609 617 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 701609617 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1990-07 - 2003-04 | 62 | 84 | 1968 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1990-11 - 2003-04 | 81 | 110 | 2461 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1992-11 - 2001-11 | 81 | 110 | 2461 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1996-08 - 2003-04 | 85 | 115 | 2461 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1996-08 - 2003-04 | 85 | 115 | 2461 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1990-09 - 1995-12 | 44 | 60 | 1896 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1990-07 - 1995-12 | 45 | 61 | 1896 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1992-10 - 2003-04 | 50 | 68 | 1896 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1997-08 - 2003-04 | 55 | 75 | 2370 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1990-07 - 1998-04 | 57 | 78 | 2370 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Construction Year from 199211 Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1992-10 - 1998-09 | 57 | 78 | 2370 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1998-12 - 2003-04 | 65 | 88 | 2461 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1995-09 - 2003-04 | 75 | 102 | 2461 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1995-09 - 2003-04 | 75 | 102 | 2461 | Van |
| VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 2000-09 - 2003-04 | 111 | 151 | 2461 | Van |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Fitting Position Rear Axle | 1990-12 - 1992-07 | 49 | 67 | 1781 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1990-09 - 2003-04 | 62 | 84 | 1968 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1990-09 - 2003-06 | 81 | 110 | 2461 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1992-08 - 2003-04 | 81 | 110 | 2461 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1996-08 - 2003-04 | 85 | 115 | 2461 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1996-07 - 2003-04 | 85 | 115 | 2461 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1990-09 - 1995-12 | 44 | 60 | 1896 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1992-10 - 2003-04 | 50 | 68 | 1896 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1997-08 - 2003-04 | 55 | 75 | 2370 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1990-09 - 1998-04 | 57 | 78 | 2370 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Construction Year from 199211 Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1992-10 - 1998-09 | 57 | 78 | 2370 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1998-05 - 2003-04 | 65 | 88 | 2461 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1995-09 - 2003-04 | 75 | 102 | 2461 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1996-01 - 2003-04 | 75 | 102 | 2461 | Bus |
| VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1998-05 - 2003-04 | 111 | 151 | 2461 | Bus |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1990-07 - 2003-04 | 62 | 84 | 1968 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1990-11 - 2003-04 | 81 | 110 | 2461 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1992-11 - 2001-11 | 81 | 110 | 2461 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1996-08 - 2003-04 | 85 | 115 | 2461 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1996-08 - 2003-04 | 85 | 115 | 2461 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1990-09 - 1995-12 | 44 | 60 | 1896 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1990-07 - 1995-12 | 45 | 61 | 1896 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1992-10 - 2003-04 | 50 | 68 | 1896 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1997-08 - 2003-04 | 55 | 75 | 2370 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1990-09 - 1998-04 | 57 | 78 | 2370 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Construction Year from 199211 Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1992-10 - 1998-09 | 57 | 78 | 2370 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1998-05 - 2003-04 | 65 | 88 | 2461 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1995-09 - 2003-04 | 75 | 102 | 2461 | Platform/Chassis |
| VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D Vehicle Identification Number (VIN) to 70-T-199999 Fitting Position Rear Axle | 1998-05 - 2003-04 | 75 | 102 | 2461 | Platform/Chassis |
24.0226-8001.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Volkswagen (VW)
- Handelsnummer
- 480051
- Land van Herkomst
- China
- Hoogte
- 88,0
- Buitendiameter [mm]
- 288,0
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 112,0
- Diameter van de ondersteuningsplaat [mm]
- 68,4
- Binnendiameter [mm]
- 268,0
- Bordiameter [mm]
- 16,8
- Max. Afborende Dimensie [mm]
- 269,5
- Binnenhoogte van de remtrommel [mm]
- 68,4
Specifieke referenties
- ean13
- 4006633144674
- MPN
- 2402268001102
ATE 24.0226-8001.1
(240226-80011)
- Buitendiameter [mm]: 288,0
- Binnendiameter [mm]: 268,0
- Draagplaat diameter [mm]: 68,4
- Aantal bolt holes: 5
- 2 Stukken Remtrommel
- Handelsnummer: 480051
