ATE Tambour de frein original (24022800041) pour Ford
181,50 €
TTC
150,00 € fiscalité ex.
Numéro de pièce :
ATE 24.0228-0004.1
(240228-00041)
- Diamètre extérieur [mm] : 314,0
- Diamètre intérieur [mm] : 280,0
- Diamètre de la plaque de support [mm] : 118,0
- Nombre de trous de boulon : 5
- Numéro de trade : 480173
- Code Ean : 4006633126311
- Poids : 12.89kg
Specification of ATE 24.0228-0004.1 / 240228-00041 / 24022800041:
| Model | Model Year | kW | HP | CC | Type |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.0 DI (F_E_, F_F_, F_G_) Vehicle type 330/350 Fitting Position Rear Axle |
08.2000 - 05.2006 | 55 | 75 | 1998 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.0 DI (F_E_, F_F_, F_G_) Vehicle type 330/350 Fitting Position Rear Axle |
08.2000 - 05.2006 | 63 | 86 | 1998 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.0 DI (F_E_, F_F_, F_G_) Vehicle type 330/350 Fitting Position Rear Axle |
08.2000 - 05.2006 | 74 | 100 | 1998 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.0 TDCi (F_F_, F_E_, F_G_) Vehicle type 330/350 Fitting Position Rear Axle |
08.2002 - 05.2006 | 92 | 125 | 1998 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.3 16V RWD (F_B_, F_C_, F_A_) Tyres for single tyres Fitting Position Rear Axle |
08.2000 - 05.2006 | 107 | 146 | 2295 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 DI (F_B_, F_C_, F_A_) Tyres for single tyres Fitting Position Rear Axle |
01.2000 - 05.2006 | 66 | 90 | 2402 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 DI RWD (F_B_, F_C_) Tyres for single tyres Fitting Position Rear Axle |
01.2000 - 05.2006 | 55 | 75 | 2402 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 DI RWD (F_B_, F_C_, F_A_) Tyres for single tyres Fitting Position Rear Axle |
01.2000 - 05.2006 | 88 | 120 | 2402 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 TDCi Tyres for single tyres Fitting Position Rear Axle |
03.2004 - 05.2006 | 101 | 137 | 2402 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 TDE Tyres for single tyres Fitting Position Rear Axle |
03.2004 - 05.2006 | 85 | 115 | 2402 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 TDE (F_C_, F_B_, F_A_) Tyres for single tyres Fitting Position Rear Axle |
07.2001 - 05.2006 | 92 | 125 | 2402 | Bus |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.0 DI (F_E_, F_F_) Vehicle type 330/350 Fitting Position Rear Axle |
08.2000 - 05.2006 | 55 | 75 | 1998 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.0 DI (F_E_, F_F_) Vehicle type 330/350 Fitting Position Rear Axle |
08.2000 - 05.2006 | 63 | 86 | 1998 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.0 DI (F_E_, F_F_) Vehicle type 330/350 Fitting Position Rear Axle |
08.2000 - 05.2006 | 74 | 100 | 1998 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.0 TDCi (F_E_, F_F_) Vehicle type 330/350 Fitting Position Rear Axle |
08.2002 - 05.2006 | 92 | 125 | 1998 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.3 16V (F_A_, F_B_, F_C_, F_D_) Tyres for single tyres Fitting Position Rear Axle |
04.2001 - 05.2006 | 107 | 146 | 2295 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.4 DI (F_A_, F_B_, F_C_, F_D_) Tyres for single tyres Fitting Position Rear Axle |
01.2000 - 05.2006 | 55 | 75 | 2402 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.4 DI (F_A_, F_B_, F_C_, F_D_) Tyres for single tyres Fitting Position Rear Axle |
01.2000 - 05.2006 | 66 | 90 | 2402 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.4 DI (F_A_, F_B_, F_C_, F_D_) Tyres for single tyres Fitting Position Rear Axle |
01.2000 - 05.2006 | 88 | 120 | 2402 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.4 TDCi Tyres for single tyres Fitting Position Rear Axle |
03.2004 - 05.2006 | 101 | 137 | 2402 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.4 TDE Tyres for single tyres Fitting Position Rear Axle |
03.2004 - 05.2006 | 85 | 115 | 2402 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.4 TDE Tyres for single tyres Fitting Position Rear Axle |
07.2001 - 05.2006 | 92 | 125 | 2402 | Platform/Chassis |
| FORD TRANSIT TOURNEO Bus (FC_ _) 2.0 Vehicle type 330/350 Fitting Position Rear Axle |
06.2000 - 08.2003 | 55 | 75 | 1998 | Bus |
| FORD TRANSIT TOURNEO Bus (FC_ _) 2.0 Vehicle type 330/350 Fitting Position Rear Axle |
06.2000 - 03.2005 | 74 | 101 | 1998 | Bus |
| FORD TRANSIT TOURNEO Bus (FC_ _) 2.0 Vehicle type 330/350 Fitting Position Rear Axle |
03.2002 - 03.2006 | 92 | 125 | 1998 | Bus |
| FORD TRANSIT Van (FA_ _) 2.0 DI (FAE_, FAF_, FAG_) Vehicle type 330/350 Fitting Position Rear Axle |
08.2000 - 05.2006 | 55 | 75 | 1998 | Van |
| FORD TRANSIT Van (FA_ _) 2.0 DI (FAE_, FAF_, FAG_) Vehicle type 330/350 Fitting Position Rear Axle |
08.2000 - 05.2006 | 63 | 86 | 1998 | Van |
| FORD TRANSIT Van (FA_ _) 2.0 DI (FAE_, FAF_, FAG_) Vehicle type 330/350 Fitting Position Rear Axle |
08.2000 - 05.2006 | 74 | 100 | 1998 | Van |
| FORD TRANSIT Van (FA_ _) 2.0 TDCi Vehicle type 330/350 Fitting Position Rear Axle |
08.2002 - 05.2006 | 92 | 125 | 1998 | Van |
| FORD TRANSIT Van (FA_ _) 2.3 16V RWD (FAA_, FAB_, FAC_) Tyres for single tyres Fitting Position Rear Axle |
04.2001 - 05.2006 | 107 | 146 | 2295 | Van |
| FORD TRANSIT Van (FA_ _) 2.3 BiFuel Vehicle type 330/350 Fitting Position Rear Axle |
03.2001 - 03.2006 | 105 | 143 | 2295 | Van |
| FORD TRANSIT Van (FA_ _) 2.4 DI (FAA_, FAB_, FAC_, FAD_) Tyres for single tyres Fitting Position Rear Axle |
01.2000 - 05.2006 | 66 | 90 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) 2.4 DI RWD (FAA_, FAB_, FAC_, FAD_) Tyres for single tyres Fitting Position Rear Axle |
01.2000 - 05.2006 | 55 | 75 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) 2.4 DI RWD (FAA_, FAB_, FAC_, FAD_) Tyres for single tyres Fitting Position Rear Axle |
01.2000 - 05.2006 | 88 | 120 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) 2.4 TD Vehicle type 330/350 Fitting Position Rear Axle |
08.2000 - 08.2003 | 55 | 75 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) 2.4 TDCi Vehicle type 330/350 Fitting Position Rear Axle |
03.2004 - 05.2006 | 101 | 137 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) 2.4 TDE Vehicle type 330/350 Fitting Position Rear Axle |
03.2004 - 05.2006 | 85 | 115 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) 2.4 TDE Vehicle type 330/350 Fitting Position Rear Axle |
07.2001 - 05.2006 | 92 | 125 | 2402 | Van |
24.0228-0004.1

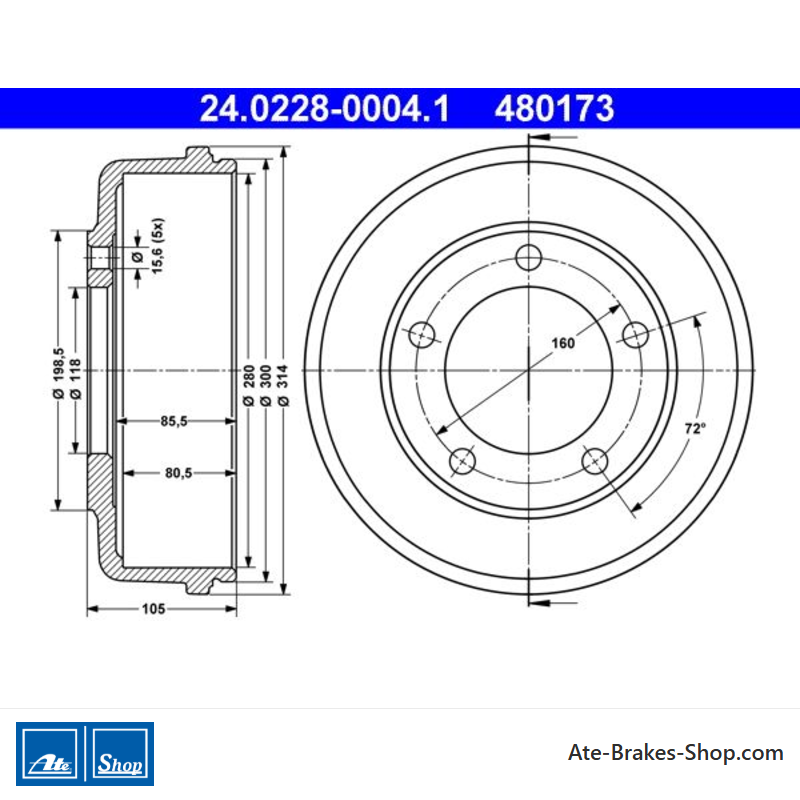

Fiche technique
- Statut de l’article
- Ordonnance
- Marque automobile
- Ford
- Numéro de trade
- 480173
- Pays d’origine
- Chine
- Hauteur
- 105,0
- Diamètre extérieur [mm]
- 314,0
- Nombre de trous de boulons
- 5
- Diamètre du trou de boulon [mm]
- 160,0
- Diamètre de la plaque de support [mm]
- 118,0
- Diamètre intérieur [mm]
- 280,0
- Diamètre du canon [mm]
- 15,5
- Max. Dimension de réalésage [mm]
- 282,0
- Hauteur intérieure du tambour de frein [mm]
- 80,5
Références spécifiques
- EAN-13
- 4006633126311
- MPN
- 2402280004102
