ATE Tambor de freno original (24022800041) para Ford
181,50 €
(impuestos inc.)
150,00 € fiscales excl.
Número de parte:
ATE 24.0228-0004.1
(240228-00041)
- Diámetro exterior [mm]: 314,0
- Diámetro interior [mm]: 280,0
- Diámetro de la placa de soporte [mm]: 118,0
- Número de agujeros de perno: 5
- Número de intercambio: 480173
- Código Ean: 4006633126311
- Peso: 12.89kg
Specification of ATE 24.0228-0004.1 / 240228-00041 / 24022800041:
| Model | Model Year | kW | HP | CC | Type |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.0 DI (F_E_, F_F_, F_G_) Vehicle type 330/350 Fitting Position Rear Axle |
08.2000 - 05.2006 | 55 | 75 | 1998 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.0 DI (F_E_, F_F_, F_G_) Vehicle type 330/350 Fitting Position Rear Axle |
08.2000 - 05.2006 | 63 | 86 | 1998 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.0 DI (F_E_, F_F_, F_G_) Vehicle type 330/350 Fitting Position Rear Axle |
08.2000 - 05.2006 | 74 | 100 | 1998 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.0 TDCi (F_F_, F_E_, F_G_) Vehicle type 330/350 Fitting Position Rear Axle |
08.2002 - 05.2006 | 92 | 125 | 1998 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.3 16V RWD (F_B_, F_C_, F_A_) Tyres for single tyres Fitting Position Rear Axle |
08.2000 - 05.2006 | 107 | 146 | 2295 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 DI (F_B_, F_C_, F_A_) Tyres for single tyres Fitting Position Rear Axle |
01.2000 - 05.2006 | 66 | 90 | 2402 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 DI RWD (F_B_, F_C_) Tyres for single tyres Fitting Position Rear Axle |
01.2000 - 05.2006 | 55 | 75 | 2402 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 DI RWD (F_B_, F_C_, F_A_) Tyres for single tyres Fitting Position Rear Axle |
01.2000 - 05.2006 | 88 | 120 | 2402 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 TDCi Tyres for single tyres Fitting Position Rear Axle |
03.2004 - 05.2006 | 101 | 137 | 2402 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 TDE Tyres for single tyres Fitting Position Rear Axle |
03.2004 - 05.2006 | 85 | 115 | 2402 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 TDE (F_C_, F_B_, F_A_) Tyres for single tyres Fitting Position Rear Axle |
07.2001 - 05.2006 | 92 | 125 | 2402 | Bus |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.0 DI (F_E_, F_F_) Vehicle type 330/350 Fitting Position Rear Axle |
08.2000 - 05.2006 | 55 | 75 | 1998 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.0 DI (F_E_, F_F_) Vehicle type 330/350 Fitting Position Rear Axle |
08.2000 - 05.2006 | 63 | 86 | 1998 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.0 DI (F_E_, F_F_) Vehicle type 330/350 Fitting Position Rear Axle |
08.2000 - 05.2006 | 74 | 100 | 1998 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.0 TDCi (F_E_, F_F_) Vehicle type 330/350 Fitting Position Rear Axle |
08.2002 - 05.2006 | 92 | 125 | 1998 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.3 16V (F_A_, F_B_, F_C_, F_D_) Tyres for single tyres Fitting Position Rear Axle |
04.2001 - 05.2006 | 107 | 146 | 2295 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.4 DI (F_A_, F_B_, F_C_, F_D_) Tyres for single tyres Fitting Position Rear Axle |
01.2000 - 05.2006 | 55 | 75 | 2402 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.4 DI (F_A_, F_B_, F_C_, F_D_) Tyres for single tyres Fitting Position Rear Axle |
01.2000 - 05.2006 | 66 | 90 | 2402 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.4 DI (F_A_, F_B_, F_C_, F_D_) Tyres for single tyres Fitting Position Rear Axle |
01.2000 - 05.2006 | 88 | 120 | 2402 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.4 TDCi Tyres for single tyres Fitting Position Rear Axle |
03.2004 - 05.2006 | 101 | 137 | 2402 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.4 TDE Tyres for single tyres Fitting Position Rear Axle |
03.2004 - 05.2006 | 85 | 115 | 2402 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.4 TDE Tyres for single tyres Fitting Position Rear Axle |
07.2001 - 05.2006 | 92 | 125 | 2402 | Platform/Chassis |
| FORD TRANSIT TOURNEO Bus (FC_ _) 2.0 Vehicle type 330/350 Fitting Position Rear Axle |
06.2000 - 08.2003 | 55 | 75 | 1998 | Bus |
| FORD TRANSIT TOURNEO Bus (FC_ _) 2.0 Vehicle type 330/350 Fitting Position Rear Axle |
06.2000 - 03.2005 | 74 | 101 | 1998 | Bus |
| FORD TRANSIT TOURNEO Bus (FC_ _) 2.0 Vehicle type 330/350 Fitting Position Rear Axle |
03.2002 - 03.2006 | 92 | 125 | 1998 | Bus |
| FORD TRANSIT Van (FA_ _) 2.0 DI (FAE_, FAF_, FAG_) Vehicle type 330/350 Fitting Position Rear Axle |
08.2000 - 05.2006 | 55 | 75 | 1998 | Van |
| FORD TRANSIT Van (FA_ _) 2.0 DI (FAE_, FAF_, FAG_) Vehicle type 330/350 Fitting Position Rear Axle |
08.2000 - 05.2006 | 63 | 86 | 1998 | Van |
| FORD TRANSIT Van (FA_ _) 2.0 DI (FAE_, FAF_, FAG_) Vehicle type 330/350 Fitting Position Rear Axle |
08.2000 - 05.2006 | 74 | 100 | 1998 | Van |
| FORD TRANSIT Van (FA_ _) 2.0 TDCi Vehicle type 330/350 Fitting Position Rear Axle |
08.2002 - 05.2006 | 92 | 125 | 1998 | Van |
| FORD TRANSIT Van (FA_ _) 2.3 16V RWD (FAA_, FAB_, FAC_) Tyres for single tyres Fitting Position Rear Axle |
04.2001 - 05.2006 | 107 | 146 | 2295 | Van |
| FORD TRANSIT Van (FA_ _) 2.3 BiFuel Vehicle type 330/350 Fitting Position Rear Axle |
03.2001 - 03.2006 | 105 | 143 | 2295 | Van |
| FORD TRANSIT Van (FA_ _) 2.4 DI (FAA_, FAB_, FAC_, FAD_) Tyres for single tyres Fitting Position Rear Axle |
01.2000 - 05.2006 | 66 | 90 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) 2.4 DI RWD (FAA_, FAB_, FAC_, FAD_) Tyres for single tyres Fitting Position Rear Axle |
01.2000 - 05.2006 | 55 | 75 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) 2.4 DI RWD (FAA_, FAB_, FAC_, FAD_) Tyres for single tyres Fitting Position Rear Axle |
01.2000 - 05.2006 | 88 | 120 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) 2.4 TD Vehicle type 330/350 Fitting Position Rear Axle |
08.2000 - 08.2003 | 55 | 75 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) 2.4 TDCi Vehicle type 330/350 Fitting Position Rear Axle |
03.2004 - 05.2006 | 101 | 137 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) 2.4 TDE Vehicle type 330/350 Fitting Position Rear Axle |
03.2004 - 05.2006 | 85 | 115 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) 2.4 TDE Vehicle type 330/350 Fitting Position Rear Axle |
07.2001 - 05.2006 | 92 | 125 | 2402 | Van |

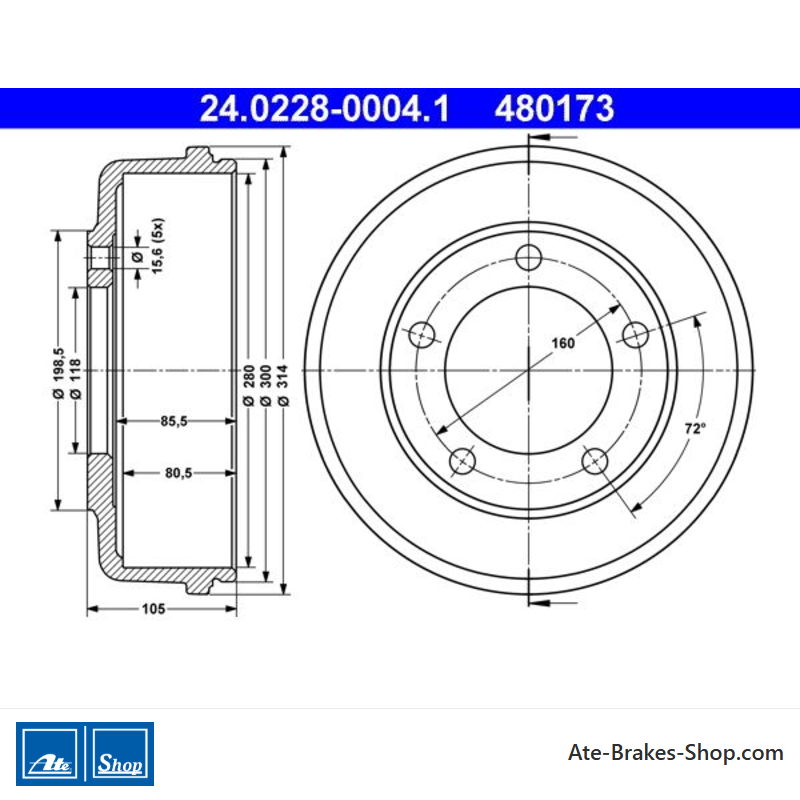

24.0228-0004.1
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Ford
- Número de Comercio
- 480173
- País de origen
- China
- Altura
- 105,0
- Diámetro exterior [mm]
- 314,0
- Número de agujeros para los tornillos
- 5
- Diámetro del agujero del perno [mm]
- 160,0
- Diámetro de la placa de soporte [mm]
- 118,0
- Diámetro interior [mm]
- 280,0
- Diámetro del diámetro del diámetro [mm]
- 15,5
- Max. Dimensión de perforación [mm]
- 282,0
- Altura interior del tambor de freno [mm]
- 80,5
Referencias específicas
- ean13
- 4006633126311
- MPN
- 2402280004102
