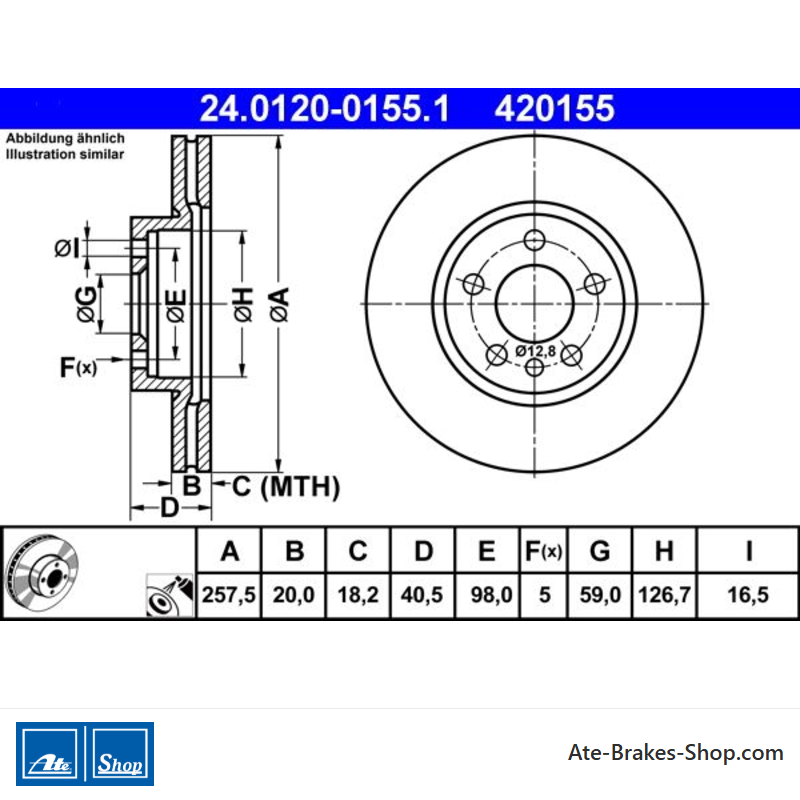

ATE Disque de frein original en 2 pièces (24012001551) pour Citroën, Fiat, Peugeot
83,49 €
TTC
69,00 € fiscalité ex.
Numéro de pièce :
ATE 24.0120-0155.1
(240120-01551)
- Diamètre extérieur [mm] : 257,5
- Diamètre intérieur [mm] : 126,7
- Épaisseur du disque de frein [mm] : 20,0
- Nombre de trous de boulon : 5
- 2 pièces de disque de frein
- Numéro de trade : 420155
Informations logistiques :
- Code Ean : 4006633069939
- Poids : 10.08kg
Specification of ATE 24.0120-0155.1 / 240120-01551 / 24012001551:
| OE Number | Reference info |
| CITROËN 4246 H9 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 4246H9 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 4249 L4 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 4249L4 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 4249 C7 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 4249C7 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 1316323080 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 1312833080 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4246 H8 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4246H8 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CITROËN EVASION MPV (22, U6) Fitting Position Front Axle | 1997-05 - 2002-07 | 73 | 99 | 1761 | MPV |
| CITROËN JUMPY I Van (BS_, BT_, BY_, BZ_) for RPO number up to 09155 Payload [kg] 800 kg Fitting Position Front Axle | 1995-10 - 2000-08 | 58 | 79 | 1581 | Van |
| CITROËN JUMPY I Van (BS_, BT_, BY_, BZ_) for RPO number up to 09155 Payload [kg] 800 kg Fitting Position Front Axle | 2000-04 - 2006-10 | 100 | 136 | 1997 | Van |
| CITROËN JUMPY I Van (BS_, BT_, BY_, BZ_) for RPO number up to 09155 Payload [kg] 800 kg Fitting Position Front Axle | 2000-03 - 2006-10 | 102 | 138 | 1997 | Van |
| CITROËN JUMPY I Van (BS_, BT_, BY_, BZ_) for RPO number up to 09155 Payload [kg] 800 kg Fitting Position Front Axle | 1998-04 - 2006-10 | 51 | 69 | 1868 | Van |
| CITROËN JUMPY I Van (BS_, BT_, BY_, BZ_) for RPO number up to 09155 Payload [kg] 800 kg Fitting Position Front Axle | 1995-10 - 2000-08 | 66 | 90 | 1905 | Van |
| CITROËN JUMPY I Van (BS_, BT_, BY_, BZ_) for RPO number up to 09155 Payload [kg] 800 kg Fitting Position Front Axle | 1999-10 - 2006-10 | 69 | 94 | 1997 | Van |
| CITROËN JUMPY I Van (BS_, BT_, BY_, BZ_) Construction Year from 200201 for RPO number up to 09155 Payload [kg] 800 kg Fitting Position Front Axle | 2001-10 - 2006-10 | 80 | 109 | 1997 | Van |
| CITROËN JUMPY I Van (BS_, BT_, BY_, BZ_) for RPO number up to 09155 Payload [kg] 800 kg Fitting Position Front Axle | 2002-01 - 2006-10 | 80 | 109 | 1997 | Van |
| CITROËN JUMPY I (U6U_) for RPO number up to 09155 Fitting Position Front Axle | 1995-10 - 2000-08 | 58 | 79 | 1581 | Bus |
| CITROËN JUMPY I (U6U_) for RPO number up to 09155 Fitting Position Front Axle | 2000-04 - 2006-12 | 100 | 136 | 1997 | Bus |
| CITROËN JUMPY I (U6U_) for RPO number up to 09155 Fitting Position Front Axle | 2000-03 - 2006-10 | 102 | 138 | 1997 | Bus |
| CITROËN JUMPY I (U6U_) for RPO number up to 09155 Fitting Position Front Axle | 1998-04 - 2003-11 | 51 | 69 | 1868 | Bus |
| CITROËN JUMPY I (U6U_) for RPO number up to 09155 Fitting Position Front Axle | 1995-10 - 1998-08 | 51 | 69 | 1905 | Bus |
| CITROËN JUMPY I (U6U_) for RPO number up to 09155 Fitting Position Front Axle | 1995-10 - 2000-08 | 66 | 90 | 1905 | Bus |
| CITROËN JUMPY I (U6U_) for RPO number up to 09155 Fitting Position Front Axle | 1996-04 - 2003-11 | 68 | 92 | 1905 | Bus |
| CITROËN JUMPY I (U6U_) for RPO number up to 09155 Fitting Position Front Axle | 1999-10 - 2006-10 | 69 | 94 | 1997 | Bus |
| CITROËN JUMPY I (U6U_) for RPO number up to 09155 Fitting Position Front Axle | 2000-03 - 2006-10 | 80 | 109 | 1997 | Bus |
| CITROËN JUMPY I (U6U_) for RPO number up to 09155 Fitting Position Front Axle | 2000-03 - 2006-10 | 80 | 109 | 1997 | Bus |
| CITROËN JUMPY I Platform/Chassis (BU_, BV_, BW_, BX_) for RPO number up to 09155 Payload [kg] 800 kg Fitting Position Front Axle | 2000-11 - 2006-10 | 51 | 69 | 1868 | Platform/Chassis |
| FIAT ULYSSE (220_) Construction Year to 200207 Fitting Position Front Axle | 1997-05 - 2002-08 | 73 | 99 | 1761 | MPV |
| FIAT SCUDO Van (220_) Fitting Position Front Axle | 1996-02 - 2006-12 | 58 | 79 | 1581 | Van |
| FIAT SCUDO Van (220_) Construction Year from 200006 Fitting Position Front Axle | 2000-05 - 2006-12 | 100 | 136 | 1997 | Van |
| FIAT SCUDO Van (220_) Fitting Position Front Axle | 1998-04 - 2006-12 | 51 | 69 | 1868 | Van |
| FIAT SCUDO Van (220_) Fitting Position Front Axle | 1996-02 - 2006-12 | 51 | 69 | 1905 | Van |
| FIAT SCUDO Van (220_) Fitting Position Front Axle | 1996-02 - 2006-12 | 66 | 90 | 1905 | Van |
| FIAT SCUDO Van (220_) Fitting Position Front Axle | 1998-02 - 2006-12 | 68 | 92 | 1905 | Van |
| FIAT SCUDO Van (220_) Construction Year from 199912 Fitting Position Front Axle | 1999-10 - 2006-12 | 69 | 94 | 1997 | Van |
| FIAT SCUDO Van (220_) Fitting Position Front Axle | 2002-12 - 2006-12 | 80 | 109 | 1997 | Van |
| FIAT SCUDO Van (220_) Construction Year from 199912 Fitting Position Front Axle | 1999-05 - 2006-12 | 80 | 109 | 1997 | Van |
| FIAT SCUDO Bus (220_) Fitting Position Front Axle | 1996-02 - 2006-12 | 58 | 79 | 1581 | Bus |
| FIAT SCUDO Bus (220_) Fitting Position Front Axle | 2000-06 - 2006-12 | 100 | 136 | 1997 | Bus |
| FIAT SCUDO Bus (220_) Fitting Position Front Axle | 1998-04 - 2006-12 | 51 | 69 | 1868 | Bus |
| FIAT SCUDO Bus (220_) Fitting Position Front Axle | 1996-02 - 1998-04 | 51 | 69 | 1905 | Bus |
| FIAT SCUDO Bus (220_) Fitting Position Front Axle | 1996-02 - 2006-12 | 66 | 90 | 1905 | Bus |
| FIAT SCUDO Bus (220_) Fitting Position Front Axle | 1996-02 - 2006-12 | 68 | 92 | 1905 | Bus |
| FIAT SCUDO Bus (220_) Fitting Position Front Axle | 2004-01 - 2006-12 | 69 | 94 | 1997 | Bus |
| FIAT SCUDO Bus (220_) Fitting Position Front Axle | 1999-12 - 2006-12 | 80 | 109 | 1997 | Bus |
| FIAT SCUDO Bus (220_) Construction Year from 199912 Fitting Position Front Axle | 1999-05 - 2006-12 | 80 | 109 | 1997 | Bus |
| FIAT SCUDO Platform/Chassis (220_) Fitting Position Front Axle | 1996-09 - 2006-12 | 58 | 79 | 1581 | Platform/Chassis |
| FIAT SCUDO Platform/Chassis (220_) Fitting Position Front Axle | 1998-04 - 2006-12 | 51 | 69 | 1868 | Platform/Chassis |
| FIAT SCUDO Platform/Chassis (220_) Fitting Position Front Axle | 1996-09 - 2006-12 | 68 | 92 | 1905 | Platform/Chassis |
| FIAT SCUDO Platform/Chassis (220_) Construction Year from 199912 Fitting Position Front Axle | 1999-10 - 2006-12 | 69 | 94 | 1997 | Platform/Chassis |
| FIAT SCUDO Platform/Chassis (220_) Fitting Position Front Axle | 2002-12 - 2006-12 | 80 | 109 | 1997 | Platform/Chassis |
| FIAT SCUDO Platform/Chassis (220_) Construction Year from 199912 Fitting Position Front Axle | 1999-05 - 2006-12 | 80 | 109 | 1997 | Platform/Chassis |
| PEUGEOT 806 (221) Construction Year from 199610 Construction Year to 200206 Fitting Position Front Axle | 1995-07 - 2002-08 | 73 | 99 | 1761 | MPV |
| PEUGEOT EXPERT Van (222) for RPO number up to 09155 Payload [kg] 800 kg Fitting Position Front Axle | 1996-02 - 2000-09 | 58 | 79 | 1581 | Van |
| PEUGEOT EXPERT Van (222) for RPO number up to 09155 Payload [kg] 800 kg Fitting Position Front Axle | 1996-10 - 2000-09 | 74 | 101 | 1761 | Van |
| PEUGEOT EXPERT Van (222) for RPO number up to 09155 Payload [kg] 800 kg Fitting Position Front Axle | 2002-09 - 2006-12 | 100 | 136 | 1997 | Van |
| PEUGEOT EXPERT Van (222) for RPO number up to 09155 Payload [kg] 800 kg Fitting Position Front Axle | 1998-12 - 2006-12 | 51 | 69 | 1868 | Van |
| PEUGEOT EXPERT Van (222) for RPO number up to 09155 Payload [kg] 800 kg Fitting Position Front Axle | 1996-02 - 1998-12 | 51 | 70 | 1905 | Van |
| PEUGEOT EXPERT Van (222) for RPO number up to 09155 Payload [kg] 800 kg Fitting Position Front Axle | 1996-02 - 2000-09 | 66 | 90 | 1905 | Van |
| PEUGEOT EXPERT Van (222) Construction Year from 199604 for RPO number up to 09155 Payload [kg] 800 kg Fitting Position Front Axle | 1996-02 - 1998-05 | 68 | 92 | 1905 | Van |
| PEUGEOT EXPERT Van (222) for RPO number up to 09155 Payload [kg] 800 kg Fitting Position Front Axle | 2000-07 - 2006-12 | 69 | 94 | 1997 | Van |
| PEUGEOT EXPERT Van (222) for RPO number up to 09155 Payload [kg] 800 kg Fitting Position Front Axle | 2000-07 - 2006-12 | 80 | 109 | 1997 | Van |
| PEUGEOT EXPERT Van (222) for RPO number up to 09155 Payload [kg] 800 kg Fitting Position Front Axle | 2000-07 - 2006-12 | 80 | 109 | 1997 | Van |
| PEUGEOT EXPERT (224_) for RPO number up to 09155 Fitting Position Front Axle | 1996-02 - 2000-09 | 58 | 79 | 1581 | Bus |
| PEUGEOT EXPERT (224_) for RPO number up to 09155 Fitting Position Front Axle | 1996-10 - 2000-09 | 74 | 101 | 1761 | Bus |
| PEUGEOT EXPERT (224_) for RPO number up to 09155 Fitting Position Front Axle | 2000-07 - 2006-12 | 100 | 136 | 1997 | Bus |
| PEUGEOT EXPERT (224_) for RPO number up to 09155 Fitting Position Front Axle | 2003-12 - 2006-12 | 51 | 69 | 1868 | Bus |
| PEUGEOT EXPERT (224_) for RPO number up to 09155 Fitting Position Front Axle | 1996-02 - 1998-12 | 51 | 70 | 1905 | Bus |
| PEUGEOT EXPERT (224_) for RPO number up to 09155 Fitting Position Front Axle | 1996-02 - 2000-09 | 66 | 90 | 1905 | Bus |
| PEUGEOT EXPERT (224_) Construction Year from 199604 for RPO number up to 09155 Fitting Position Front Axle | 1996-02 - 1998-05 | 68 | 92 | 1905 | Bus |
| PEUGEOT EXPERT (224_) for RPO number up to 09155 Fitting Position Front Axle | 2000-10 - 2006-10 | 69 | 94 | 1997 | Bus |
| PEUGEOT EXPERT (224_) for RPO number up to 09155 Fitting Position Front Axle | 2000-07 - 2006-12 | 80 | 109 | 1997 | Bus |
| PEUGEOT EXPERT (224_) for RPO number up to 09155 Fitting Position Front Axle | 2000-07 - 2006-12 | 80 | 109 | 1997 | Bus |
24.0120-0155.1
Fiche technique
- Statut de l’article
- Ordonnance
- Marque automobile
- Citroën
Fiat
Peugeot - Numéro de trade
- 420155
- Pays d’origine
- Chine
- Hauteur
- 40,5
- Diamètre extérieur [mm]
- 257,5
- Épaisseur du disque de frein [mm]
- 20,0
- Type à disque de frein
- Ventilé
- Traitement
- Alliage/Haute teneur en carbone
- Surface
- Enduit
- Nombre de trous de boulons
- 5
- Diamètre du trou de boulon [mm]
- 98,0
- Diamètre de centrage [mm]
- 59,0
- Diamètre intérieur [mm]
- 126,7
- Diamètre du canon [mm]
- 16,5
- Épaisseur minimale [mm]
- 18,2
Références spécifiques
- EAN-13
- 4006633069939
- MPN
- 2401200155101
ATE 24.0120-0155.1
(240120-01551)
- Diamètre extérieur [mm] : 257,5
- Diamètre intérieur [mm] : 126,7
- Épaisseur du disque de frein [mm] : 20,0
- Nombre de trous de boulon : 5
- 2 pièces de disque de frein
- Numéro de trade : 420155
